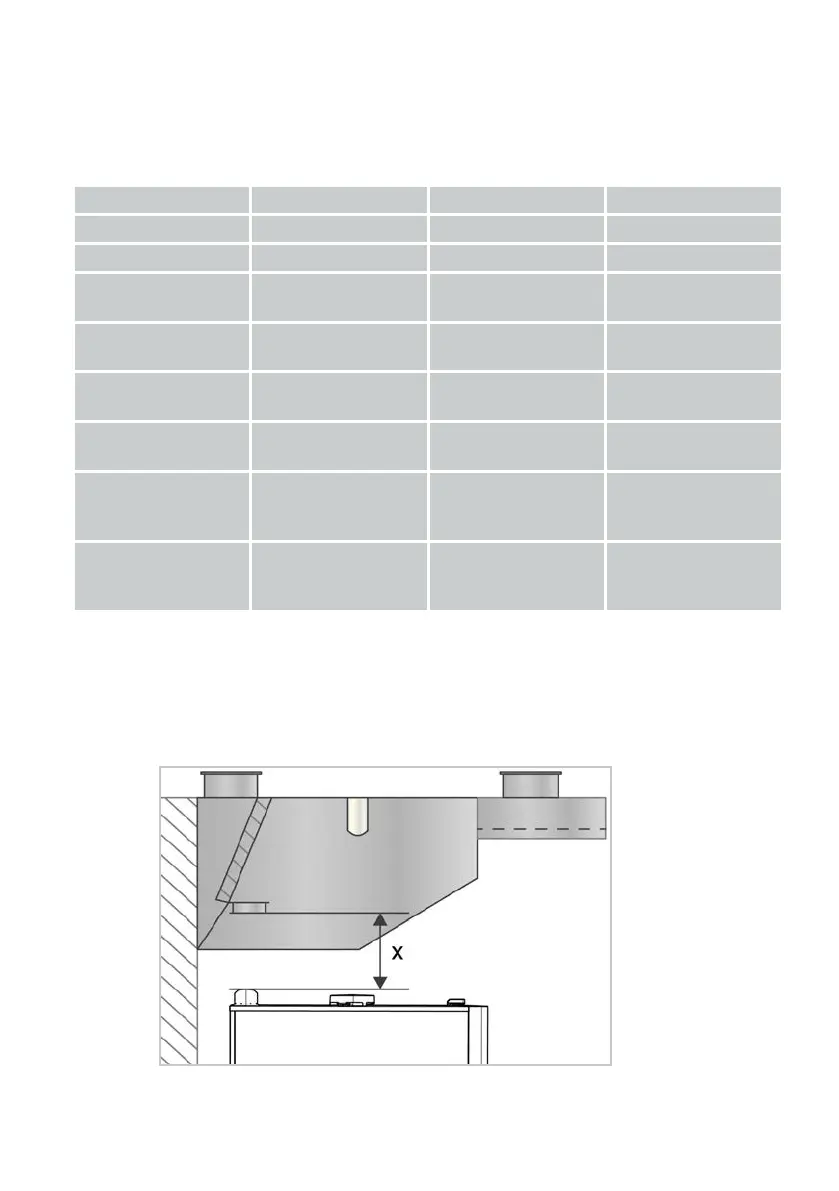

Heat shield (optional)
If a sufficient distance to the heat source on the left and right cannot be main-
tained, an additional heat shield is available to reduce the thermal load.
The heat shields are available for the following unit sizes and combinations:
Unit sizes XS 6 half size - 10 full size 20 half size; 20 full size
Hitzeschild links x x x
Hitzeschild rechts - x -
Hitzeschild links with
Combi-Duo
x x -
Hitzeschild rechts with
Combi-Duo
- x -
Hitzeschild links with
UV/UV Plus
x - -
Hitzeschild rechts with
UV/UV Plus
- - -
Hitzeschild links with
Combi-Duo and UV/
UV Plus
x - -
Hitzeschild rechts with
Combi-Duo and UV/
UV Plus
- - -
5.1.3 Distance to ceiling
Electric units
Install the electrical unit with a minimum distance between the ventilation pipe
of the unit and the grease filters of the extraction hood/ventilation ceiling.
