6 | Electrical connection
80.06.083_iCombiPro-iCombiClassic_IM_en-US 55 / 100
>> The electrical compartment is open.
6.3 Connecting the electrical units to the power grid
Notes on the power cord and connection point
n
There is a fixed connection for the electrical connection of the unit.
n
Units with a 3 NAC 400 V connection voltage can be connected via a fixed
connection (conduit connection) or connection with a safety switch.
n
You have your own supply cable on hand for the unit.
n
The units are supplied without a power cord.
n
Unit size XS GN: The unit is delivered with a power cable.
n

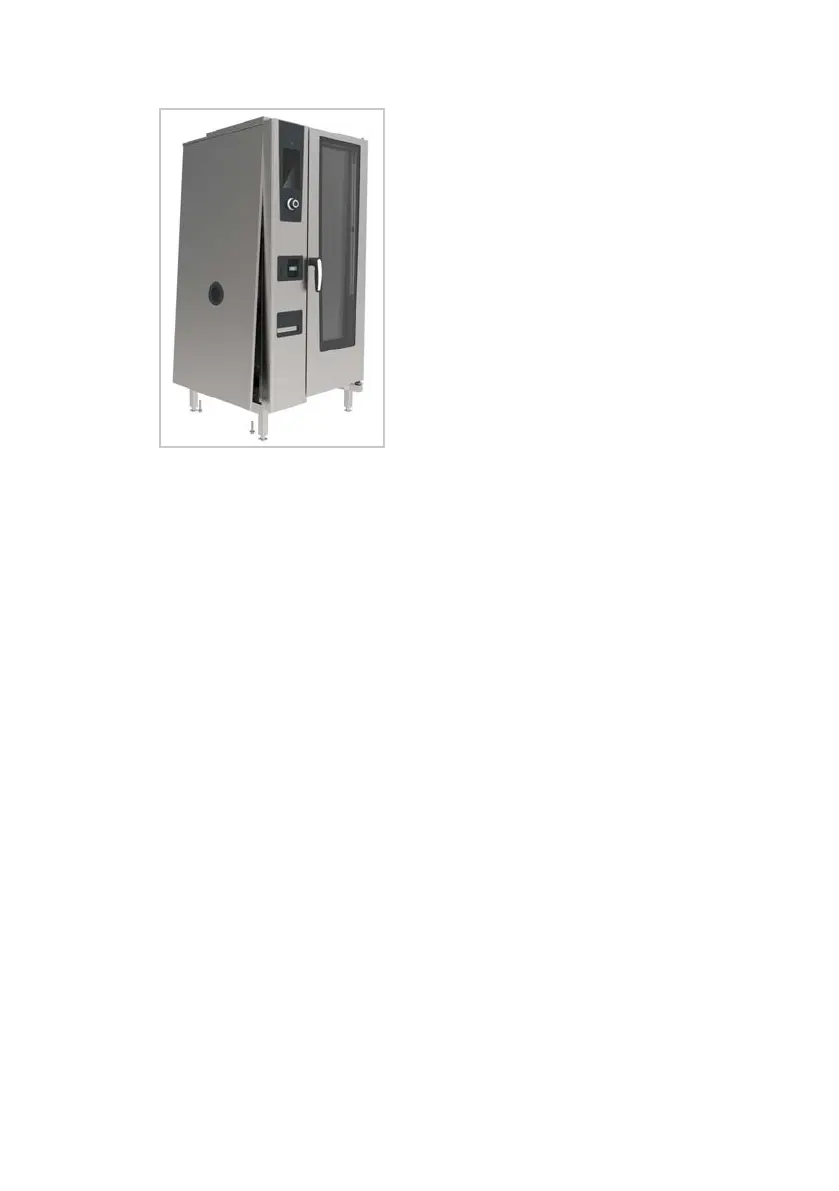

The connection point of the power cord is on the main contactor in the elec-
trical compartment behind the removable left side wall.
Making the connection on the tabletop unit
a Unit size XS GN: For the installation, there is an all-pole disconnecting unit
with a contact distance of at least 3 mm [0.12 inch].
a A fault-current circuit breaker according to the table Connected loads of dif-
ferent voltage types [}63] is in place.
a The strain relief for the power cord is tightened.
a The electrical compartment is open.
1. Feed the power cord through the opening on the rear side into the electrical
compartment to the connection point.
2. Connect the wires to the terminals. Observe the following color coding.
3. Check that the conductors are connected correctly.
>> The unit is connected to the power grid.
