5 | Setup
30 / 100 80.06.083_iCombiPro-iCombiClassic_IM_en-US

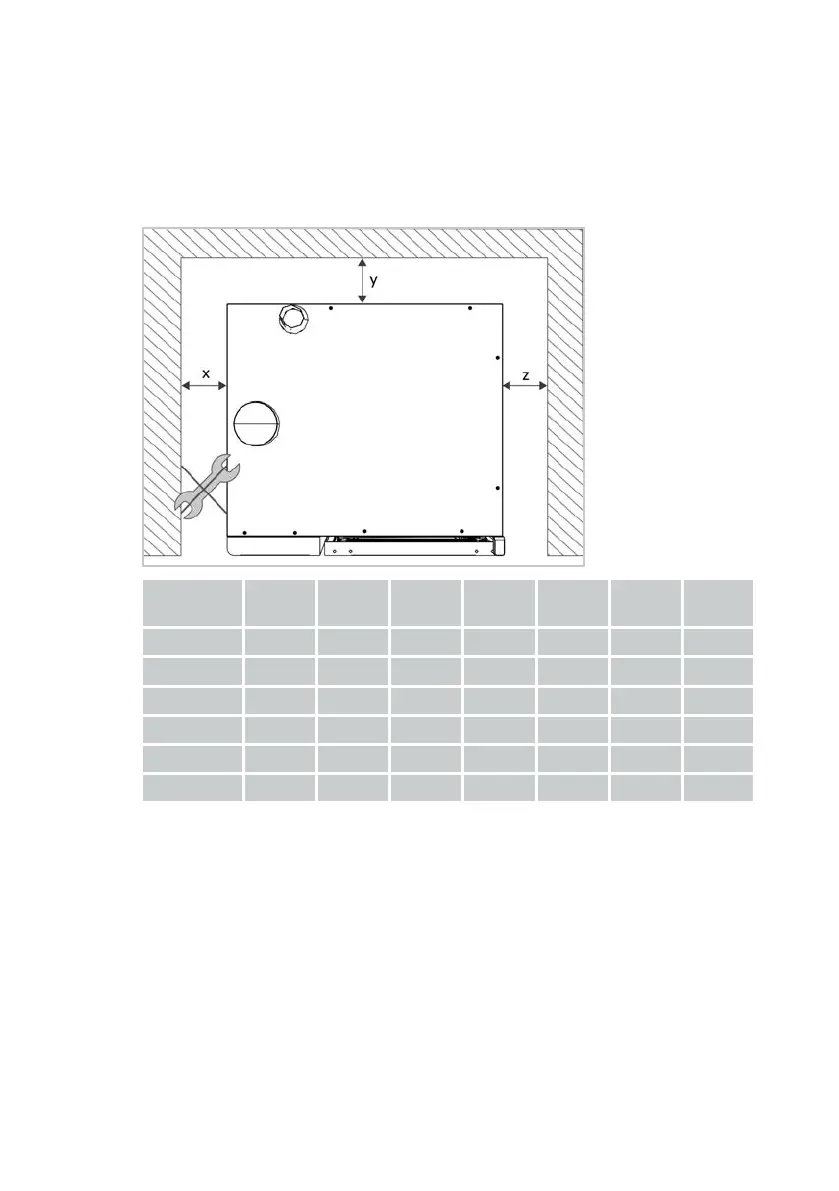

5.1 Minimum distance to the unit
5.1.1 Distance from walls
Minimum distance to all sides
Set up the unit taking into account the minimum distances to the wall. The dis-
tances depend on the unit size, as shown in the table below.
Unit size XS 6 half
size
6 full
size
10 half
size
10 full
size
20 half
size
20 full
size
x (mm) 10 50 50 50 50 50 50
x (inch) 1/2 2 2 2 2 2 2
y (mm) 10 0 0 0 0 0 0
y (inch) 1/2 0 0 0 0 0 0
z (mm) 10 50 50 50 50 50 50
z (inch) 1/2 2 2 2 2 2 2
Recommended distance to the left side of the unit
To ensure that there is sufficient space on the left side of the unit to carry out
service work in the installation area, place the unit on the left side at a recom-
mended minimum distance from the wall.
