Rational CombiMaster Plus Original Installation Instructions

9 | Wastewater connection
80.06.083_iCombiPro-iCombiClassic_IM_en-US 75 / 100
n
Do not install piping systems on the safety overflow.
n
Do not combine the unit with other drain systems.
In addition to the requirements for tabletop units, note the following for the op-
tion iCareSystem AutoDose (iCareSystem AutoDose [}91]):

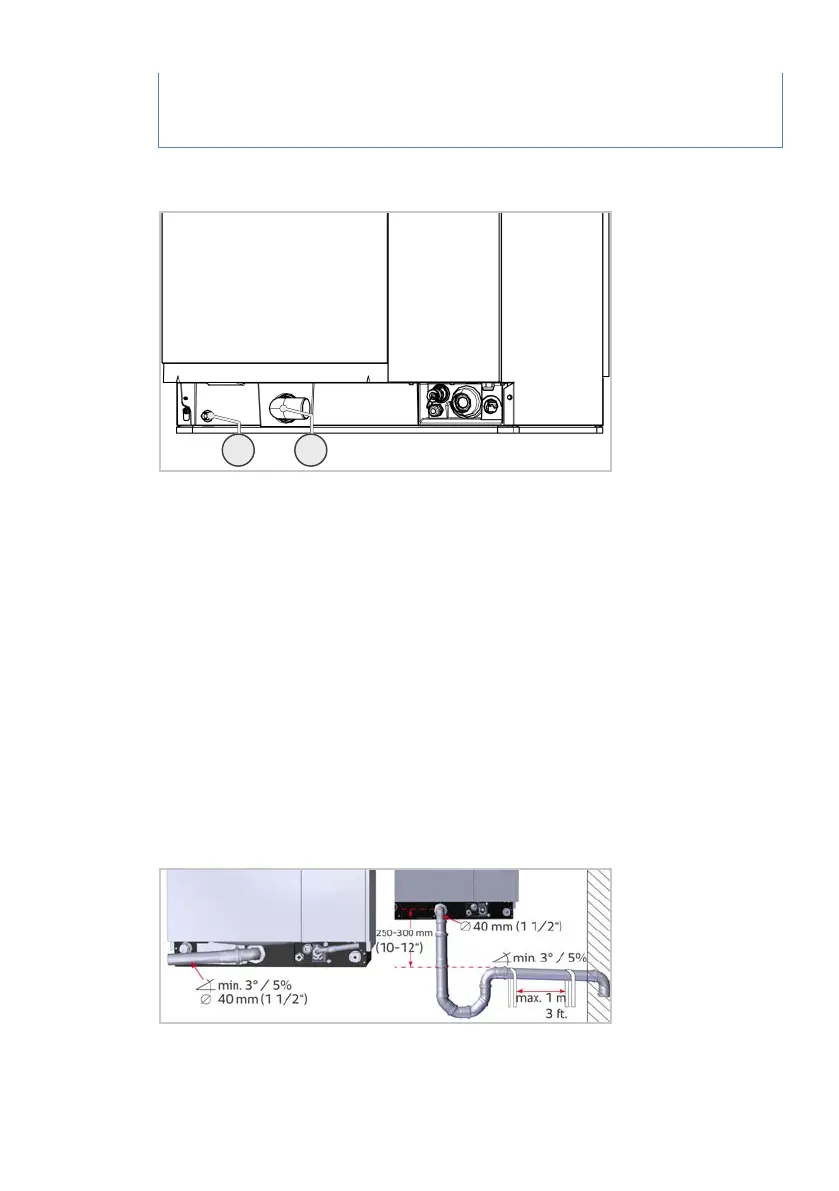

1 2
n
The safety overflow (1) on the unit must always be clear.
n
The safety overflow (1) must not be combined with waste water or drain
systems.
n
The drain connection (2) must not be combined with other wastewater sys-
tems.
9.2 Connecting the wastewater drain
a The drain pipe is resistant to steam temperature.
1. Connect the drain pipe DN50 mm [2 inch] (for unit size XS : DN40mm
[1.5inch]) with a constant gradient of at least 5 % or 3° (1/4inch/foot).
Use a 90° elbow as the first pipe piece for the drain pipe.
2. Align the drain pipe to the side, straight or leading downwards.
Unit size XS GN
International - exception: does not apply for United Kingdom:
