Rational CombiMaster Plus Original Installation Instructions

6 | Electrical connection
54 / 100 80.06.083_iCombiPro-iCombiClassic_IM_en-US

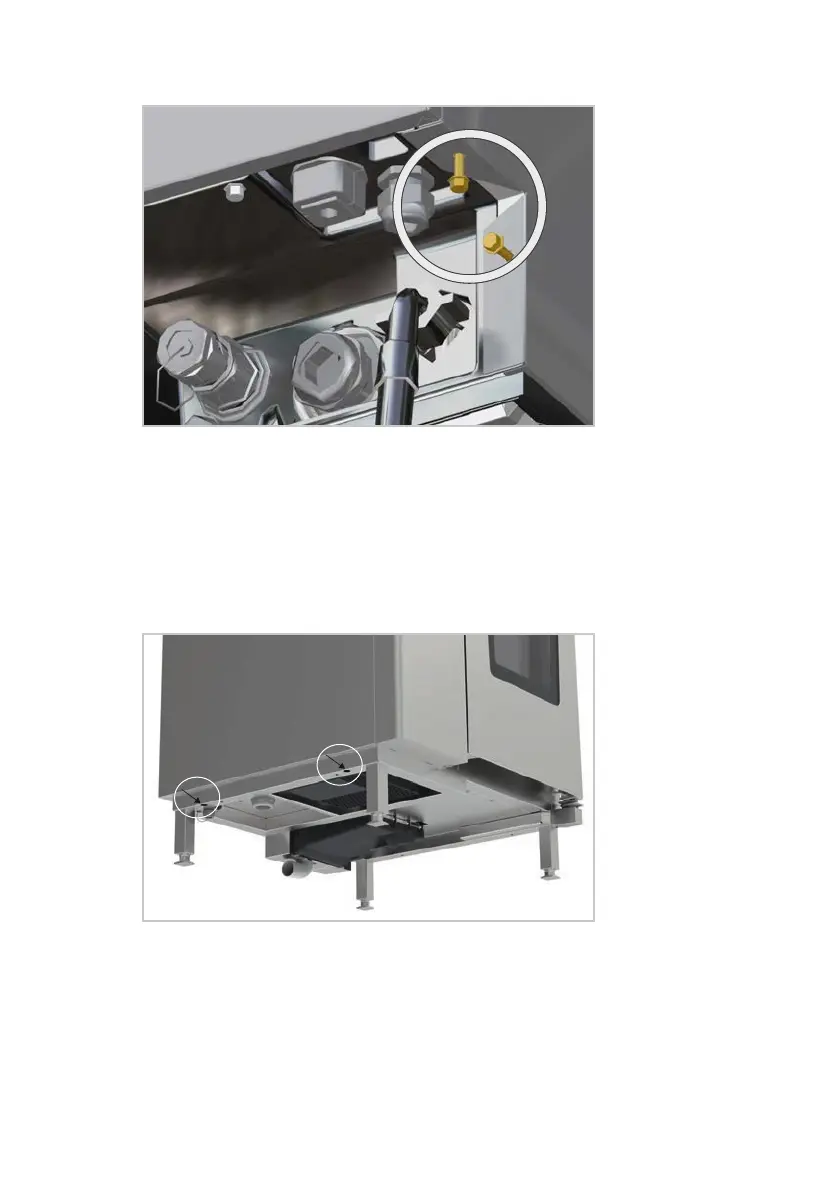

3. Loosen two screws in the recess of the rear side wall of the unit.
4. Pull the left side wall downwards away from the unit.
5. Remove the side wall.
>> The electrical compartment is open.
Unit size 20 half size GN, 20 full size GN
1. Loosen two screws on the underside of the side panel in recess of frame.
> The openings to the screws are closed with a cover. Remove the cover
carefully to access the screws.
2. Lift the left side wall from below and pull the side wall downwards away
from the unit.

Rational CombiMaster Plus Specifications

General

Model	CombiMaster Plus
Manufacturer	Rational
Category	Oven
Cooking modes	Steam, Convection, Combination
Temperature range	30°C to 300°C
Cleaning system	Manual cleaning
Power Consumption	Varies by model
Steam Generator Output	Varies by model
Weight	Varies by model
Dimensions	Varies by model
Control type	Manual
Capacity	10-20 levels (depending on model)
