Rational CombiMaster Plus

6 | Electrical connection
52 / 100 80.06.083_iCombiPro-iCombiClassic_IM_en-US

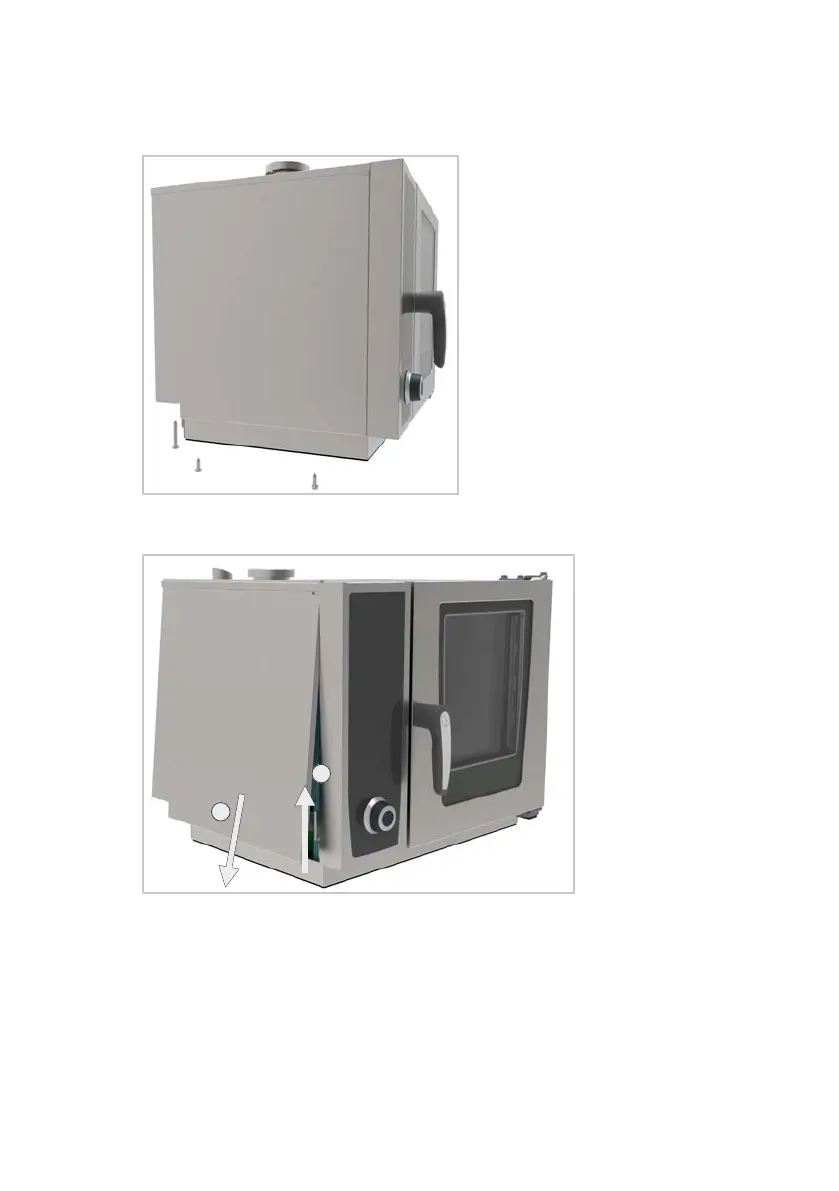

Unit size XS GN
1. Loosen two screws on the bottom of the left side wall and one screw on
the back.
2. Lift the left side wall from below and pull the side wall downwards away
from the unit.
1
2
>> The electrical compartment is open.
