Instructions for Use MPR1 DATALOGGER
Manufacturer: zwo-399EN
RAUMEDIC AG, Hermann-Staudinger-Strasse 2, 95233 Helmbrechts, Germany Rev. 9, 2020-10-16
Page 12 of 98
18 19 20 21 22
28 27 26 25 24 23

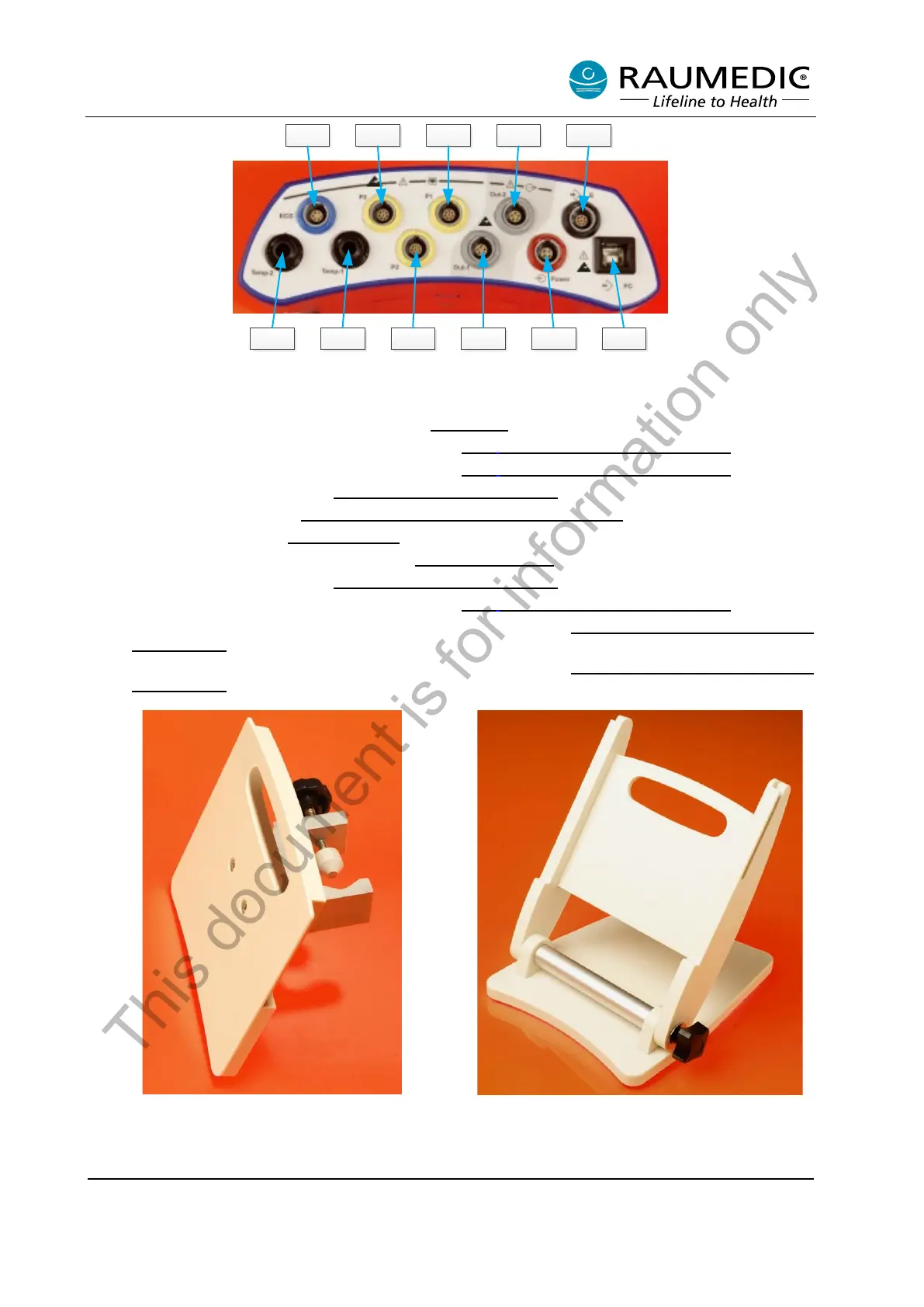

Figure 2: Connection field
[18] ECG: connection socket for ECG cable (cf. 4.4.2 ECG
)
[19] P3: connection socket for invasive pressure (cf. 4.4.3 Transducer for invasive pressure )
[20] P1: connection socket for invasive pressure (cf. 4.4.3 Transducer for invasive pressure )
[21] Out-2: analogue output 2 (cf. 4.6.1 Combine analogue outputs)
[22] E: RS232 interface ( cf. 3.6 Interface for the extension of the apparatus)
[23] PC: USB interface (cf. 3.7 PC interface)
[24] Power: connection for mains adapter (cf. 4.1 General aspects)
[25] Out-1: analogue output 1 (cf. 4.6.1 Combine analogue outputs)
[26] P2: connection socket for invasive pressure (cf. 4.4.3 Transducer for invasive pressure )
[27] Temp-1: connection for temperature probe, channel 1 (cf. 4.4.4 Transducer for temperature
measurement)
[28] Temp-2: connection for temperature probe, channel 2 (cf. 4.4.4 Transducer for temperature
measurement)
Figure 3
Figure 4
Optional stand holder [29]
Optional table holder [30]
