Chapter 2: Installation 2-9
Display Unit
Mounting Location

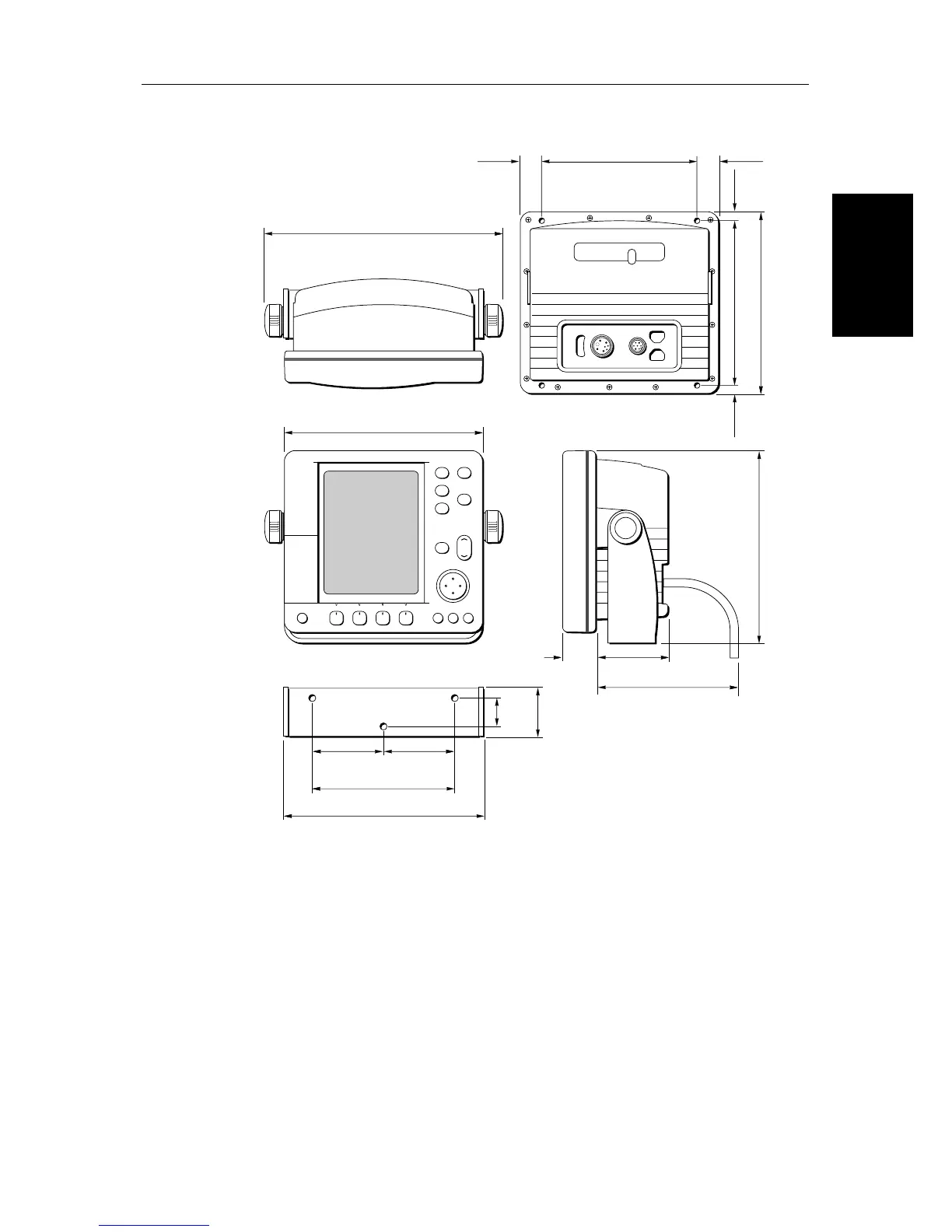

Figure 2-5: 7” Monochrome LCD Fishfinder Display Unit Dimensions
(L755RC Plus)
DISPLAY
GAIN
VRM/EBL
MULTI
MARKS
ALARMS
RANGE
ENTER CLEAR MENU
POWER
Weight: 7.5 lbs (3.415 Kg)
Compass Safe Distance: 39 in (1 m)
10.54 in (267.7 mm)
0.95 in
(24 mm)
6.89 in (175 mm)
0.95 in
(24 mm)
0.4 in
(9.5 mm)
7.3 in (185 mm)
8 in (204 mm)
0.4 in
(9.5 mm)
8.76 in (222.5 mm)
3.15 in
(80 mm)
3.15 in
(80 mm)
6.3 in (160 mm)
8.85 in (225 mm)
1.3 in
(33.5 mm)
2.16 in
(55 mm)
1.45 in (37 mm)
3.2 in (81 mm)
8.5 in (216 mm)
6.9 in (176 mm)
cable cleareance
D5071-2
