Plus Series Fishfinders
Display Unit
Mounting Location

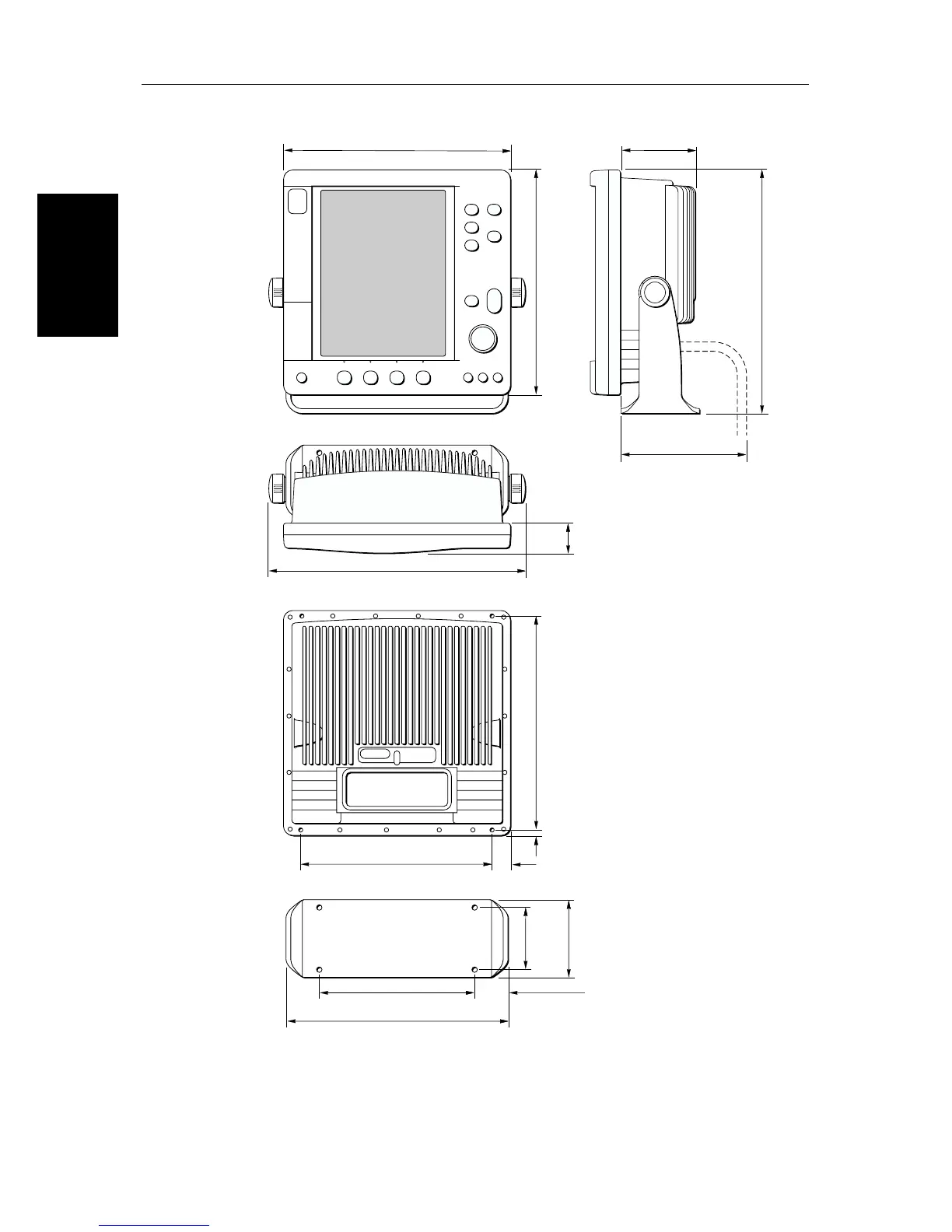

Figure 2-6: 10.4” Color LCD Fishfinder Display Dimensions
(L1250 and L1250RC Plus)
D5066-3
11.5 in (292 mm)
3.82 in (97 mm)
6.38 in (162 mm)
cable clearance
Compass Safe Distance: 39 in (1 m)
12.9 in (328 mm)
9.7 in (246 mm) 0.87 in (22.1 mm)
7.88 in (200 mm) 1.7 in (43 mm)
11.26 in (286 mm)
10.83 in (275 mm)
11.4 in (289 mm)
12.3 in (313 mm)
3.15 in
(80 mm)
0.28 in
(7.1 mm)
1.65 in
(42 mm)
3.94 in (100 mm)
