1.6 Approved Weighing Mode Certification
There are currently 2 main Approval Certifications: -Class IIII - NAWI (Non-Automatic weighing Instrument) and y(b) -
AWI (Automatic Weighing Instrument). Within each Approval type (Class IIII or y(b)), the Loadmaster 9000i can be
certified for maximum weights from 1 to 25 tonnes. For ease of setup, the instrument is configured for certification in the
range 1 to 15 tonnes via a menu of 18 presets (see below). It is also possible to configure the Loadmaster 9000i for any
maximum weight from 16 to 25 tonnes, but not via presets.
Presets (Class IIII and y(b)):
Max weight: Resolution (e):
1000 kg 10kg (10e)
2000 kg
3000 kg 20kg (20e)
4000 kg
5000 kg
5000 kg
6000 kg
7000 kg
8000 kg 50kg (50e)
9000 kg
10000 kg
11000 kg
12000 kg
10000 kg
11000 kg
12000 kg
13000 kg
14000 kg 100kg (100e)
15000 kg
17000 kg
20000 kg
25000 kg

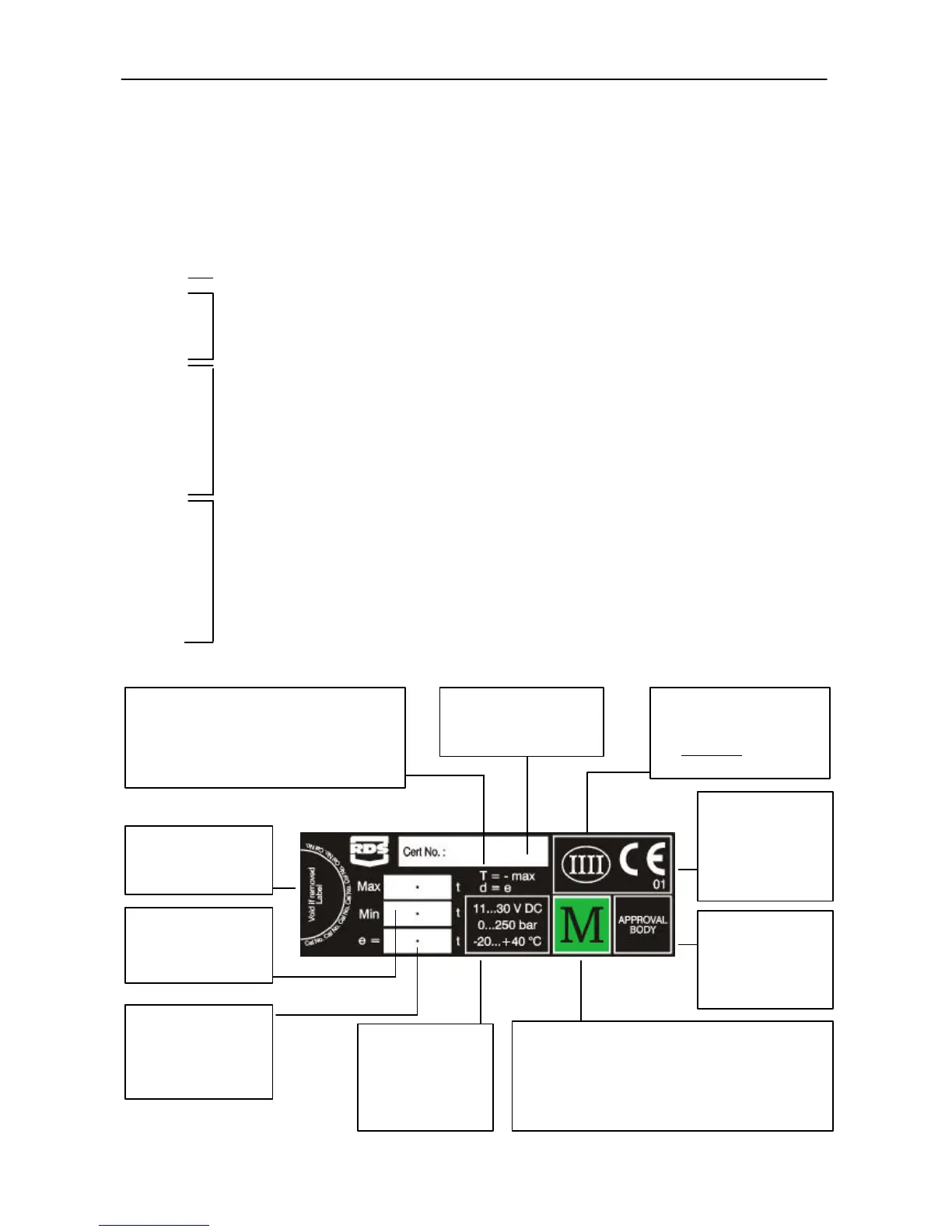

Figure 3a
Verification Scale Interval
in decimal tonnes, (the
resolution to which the
system has been
verified).
Area reserved for a
"CALIBRATION VOID IF
BROKEN" sticker
"T" = Subtractive Tare: A tare figure can be entered
up to the Maximum weight that the system is
verified to (i.e.: - max).
"d" = Actual Scale Interval (that displayed on-
screen) = Verification Scale Interval ("e")
Certification number given
after initial verification for the
system (Pattern Number)
The Class IIII Symbol,
demonstrating th
at this system
is a Trading Standards
Approvable NAWI/AWI
"CE" mark
demonstrates that this
system has passed the
EMC regulations and
other applicable CE
directives
Position for the number
of the Approval Body
carrying out the field
verification
(Also see below)
The Type
Approval sticker for Class IIII (NAWI) certification
is placed here (the "Metrologie symbol).
R51 y(b) (AWI) certification does not require a type
approval sticker, however, the Approval Body carrying out
the field verification may place their mark here or in the
"APPROVAL BODY" box to the right.
System Environmental
Parameters: -
Supply voltage
Load Sensor Pressure
Temperature
Maximum and Minimum
weigh
t that the system is
verified to (decimal
tonnes).
The certification details are given on the plate fixed on the left
hand side of the Head Unit (fig. 3a), The label is completed with
the certi
fication details, after field verification of the weighing
system by the local approval body.
