Copper and Optical FE MICs
2-2 SmartEdge 100 Router Hardware Guide

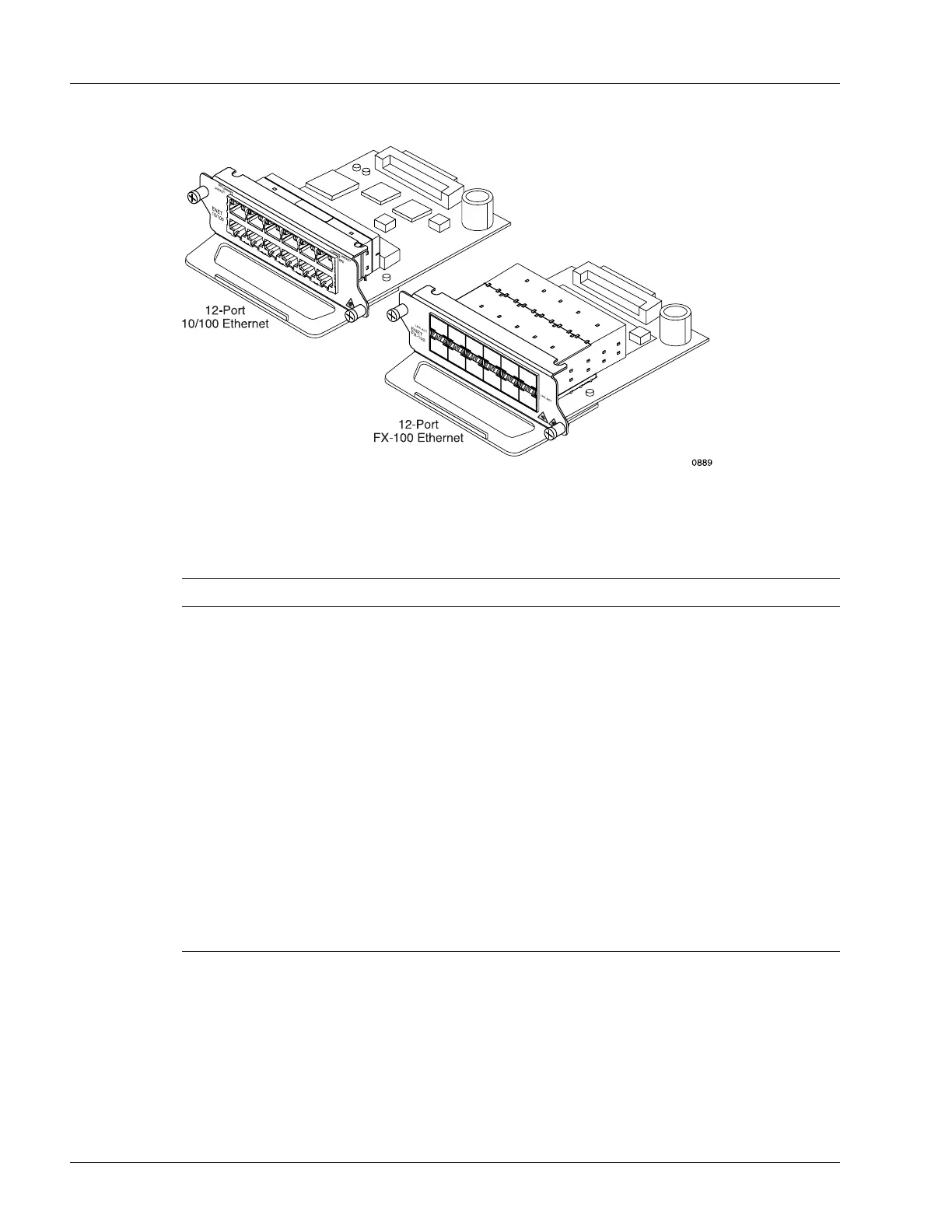

Figure 2-1 Copper and Optical FE MICs
Table 2-1 lists the specifications for these FE MICs. In Table 2-1, MMF and SMF refer to multimode fiber
and single-mode fiber, respectively.
Table 2-1 Copper and Optical FE MIC Specifications
Specification FX LX10 TX
Number of ports 12 12 12
Protocol 100Base-FX 100Base-LX10 10 Mbps: 10Base-T
100 Mbps: 100Base-TX
Line code 4B/5B 4B/5B 10 Mbps: Manchester coding
100 Mbps: 4B/5B
Speed 100 Mbps 100 Mbps 10 or 100 Mbps
Negotiate flow control
1
1. These MICs support loss-less flow control up to 6.2 mi (10.0 km) for packets with up to 9,600 bytes.
No No Yes (including flow-control settings)
2
2. The extent of the support for flow control is dependent on the release of the SmartEdge OS.
Interface type Optical Optical Electrical
Impedance – – 100 ohm differential
Connector type SFP SFP RJ-45
Cable type MMF SMF 2-pair, category 5 shielded-twisted pair
3
3. The shielded cable must be grounded at both ends.
Protection None None None
Compliance These versions comply with IEEE 802.3, 802.3u
