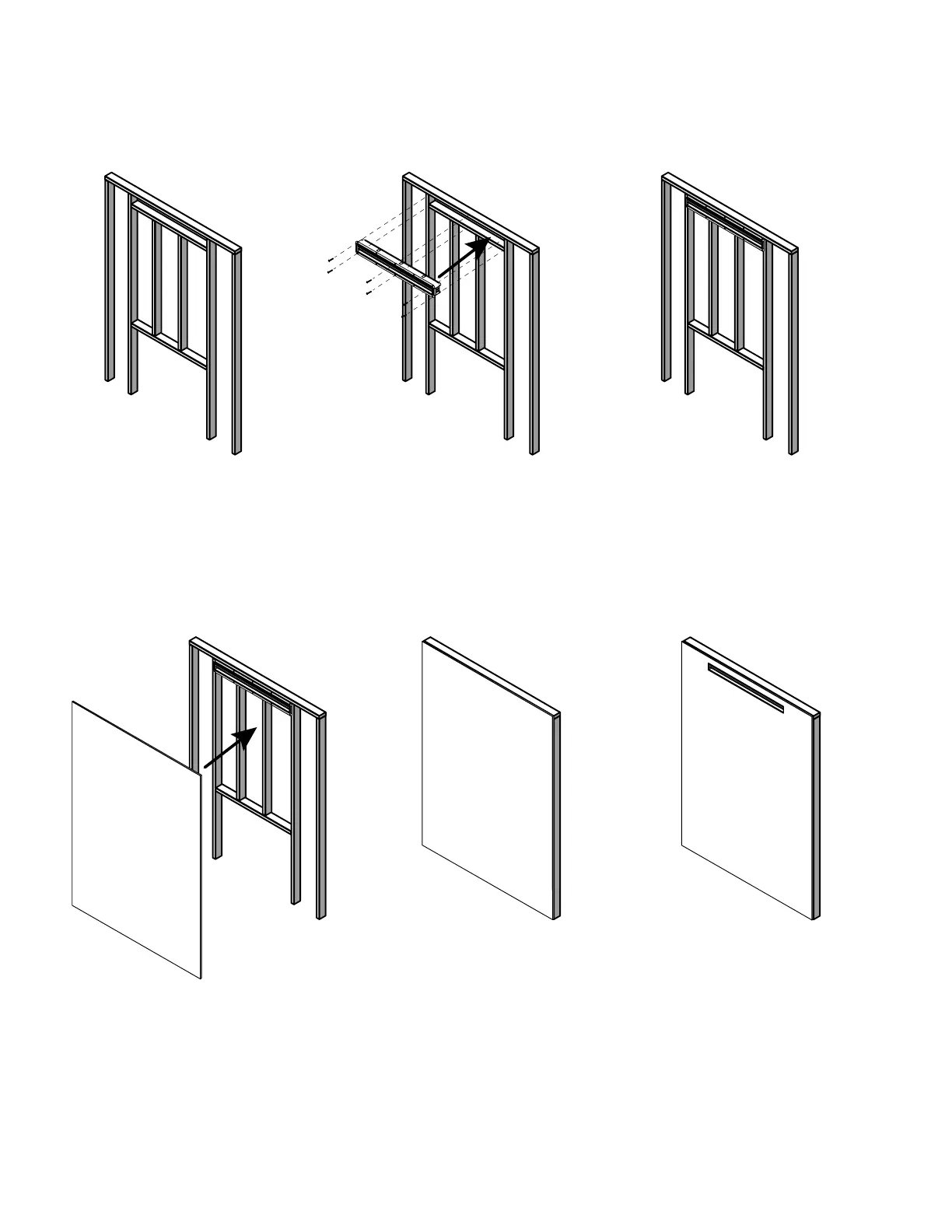

C40 Chase Vent Installation Example
1. 2. 3.
4. 5. 6.
Frame opening for vent
(See Vent Framing Clearances Page)
Screw Chase vent to Framing Use at least 3 sets of screws
to keep the vent at against framing
Frame wall with nishing material If necessary, mark where the
chase vent is located before
fixing drywall in place
Cut hole in nishing material
around inside of chase vent.
Finish edges around opening
Drywall
