City Series CV40E-12 | 35
installation

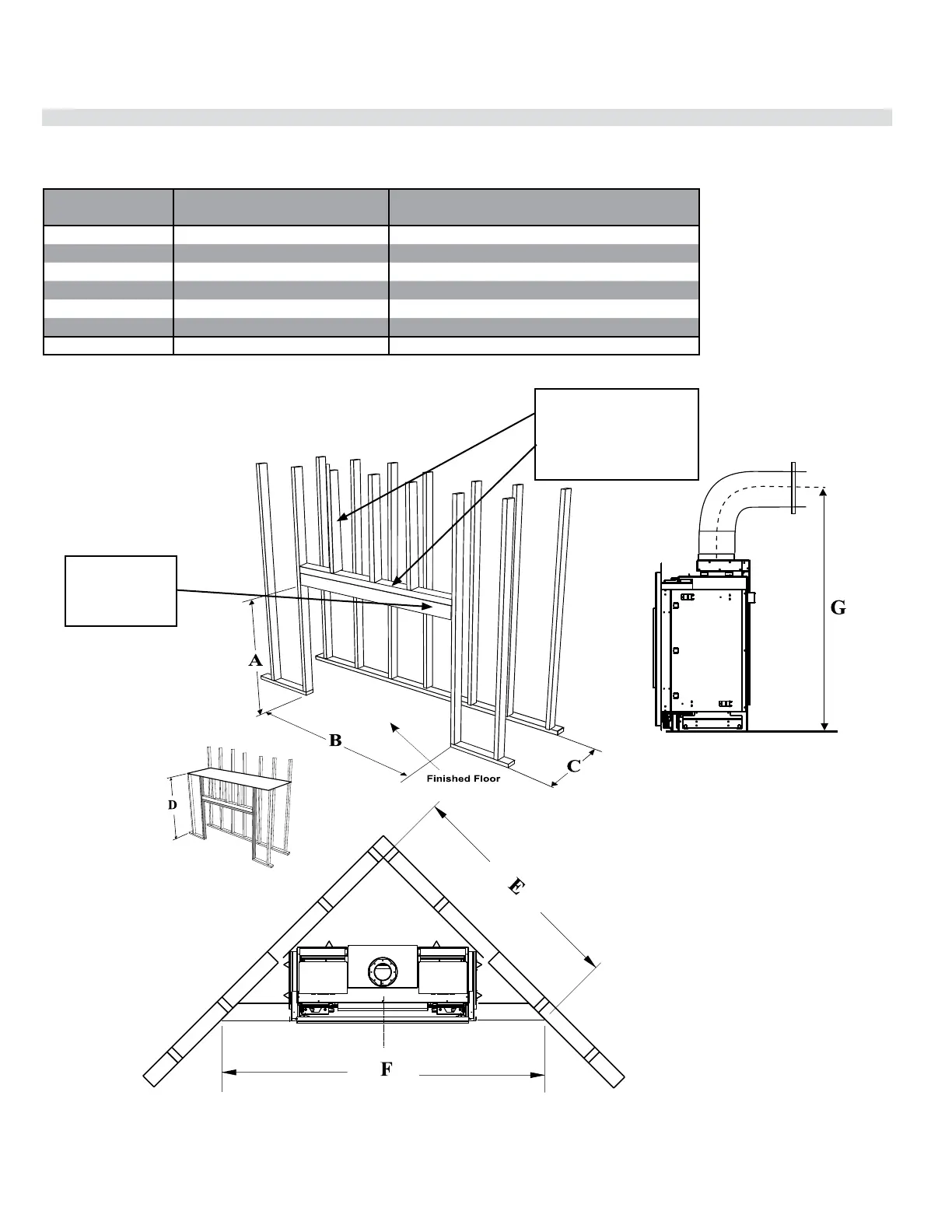

Framing Dimensions
NOTE: Framing may be constructed of combustible material (ie. 2 x 4)and does not require steel studs.
Framing
Dimensions
Description CV40E
A Framing Height 37-3/8” (949mm)
B* Framing Width 46-3/4" (1187mm)
C* Framing Depth 19" (483mm)
D Minimum Height to Combustibles 63"(1600mm)
E Corner Wall Depth 55" (1396mm)
F Corner Facing Wall Width 77-3/4" (1974mm)
G Vent Centerline Height 56-1/4" (1429mm)
Note: A combined minimum of 120 square inches of open area is required for the convection
air outlet to cool the enclosure. Ensure clearances for Convection Air Outlets are met.
See clearances CV40E (single sided) in this manual as there are dierent methods as to
how this can be achieved.
Note: This appliance must be in-
stalled on a solid surface such as a
plywood oor which must be the full
width and depth of the appliance.
* The framing depth/width does not take into account dry wall/wood or similar materials against the back /side wall. The framing depth will need to change
based on the thickness of the material
(example: B - 46 3/4" framing width +1/2" drywall = 47 3/4")
(example: C - 19" framing depth +1/2" drywall = 19 1/2")
*
*
Maximum material
dimensions 2" x 4" for wood
studs in front. Studs behind
and to the side can be either
2'' x 4'' or 2'' x 6''.
Note: Wood
header on edge
may be 2'' x 4''
or 2'' x 6''.
