36 | City Series CV40E-12
installation
Wall Board/Drywall Installation
WARNING! Risk of Fire! Comply with all minimum clearances to combustibles as specied.
Finishing Instructions
It is important to follow the framing and nishing instructions to ensure proper placement of replace into the surrounding framing/nishing materials.
Wall board materials 1/2 in. thick are specied in this installation manual to properly align with the optional nishing methods oered with this appliance.
The CV40E may be nished to the appliance opening with 1/2 inch thick drywall.
• Ensure that the back and side clearances are maintained.
WARNING! Risk of Fire! Maintain specied air space clearances to combustibles. Inadequate air space could cause overheating and re.
DO NOT use screws more than 3/4 inch in length on the lower access cover panel. Longer screws may penetrate gas line or damage valve or electrical
components.
Note: It is acceptable to use a high temperature silicone sealant to adhere drywall to lower access cover panel.
The appliance is designed to be used with 1/2 in. wall sheathing materials such as drywall, plywood, wood composites, or non-combustible materials.
Thicker materials may be used. Refer to facing and nishing details in this manual.
Facing Material
• Facing and/or nishing materials must never overhang into the glass opening.
• Facing materials may be combustible or non-combustible
WARNING! Risk of Fire! DO NOT apply combustible materials beyond the minimum clearances. Comply with all minimum clearances to combustibles as
specied in this manual. Overlapping materials could ignite and will interfere with proper operation.
PAINTING
If desired nishing includes a painted wall, 100% acrylic latex, oil-based or standard acrylic paints may be used.
Follow paint manufacturer’s instructions for paint and primer application.
3
7
8
"
[99mm]
2
7
8
"
[73mm]
1"
[25mm]
3"
[73mm]
3"
[76mm]

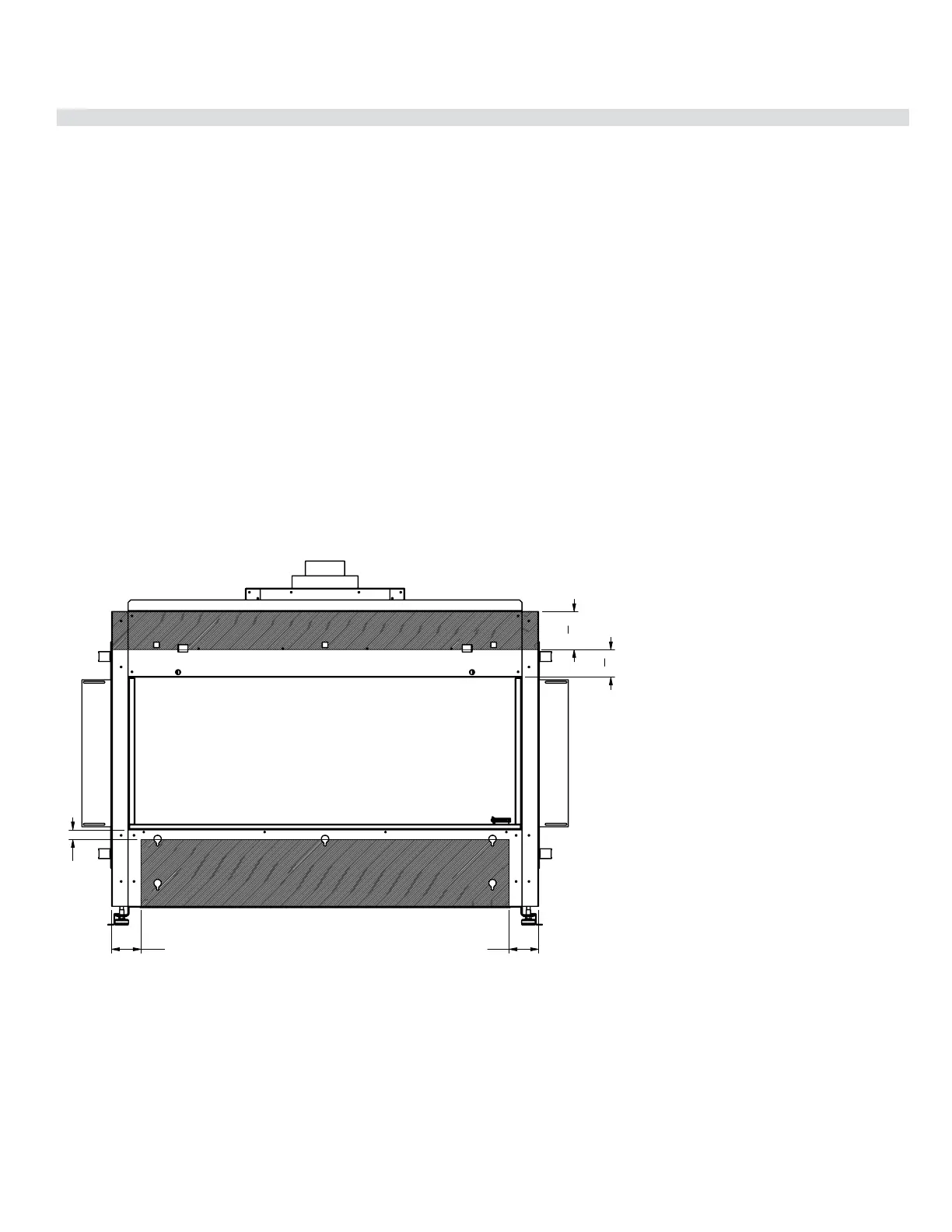

SCREWS ONLY IN SHADED AREA
