Optional Flush Front Chase Vent Installation - Part #657-991 (White)
Max 3”
(76 mm)
Ceiling
Ceiling
Top of chase enclosure
Max 3”
(76 mm)
Stud
Stud
Stud
Stud
40” (1016 mm) Chase Vent

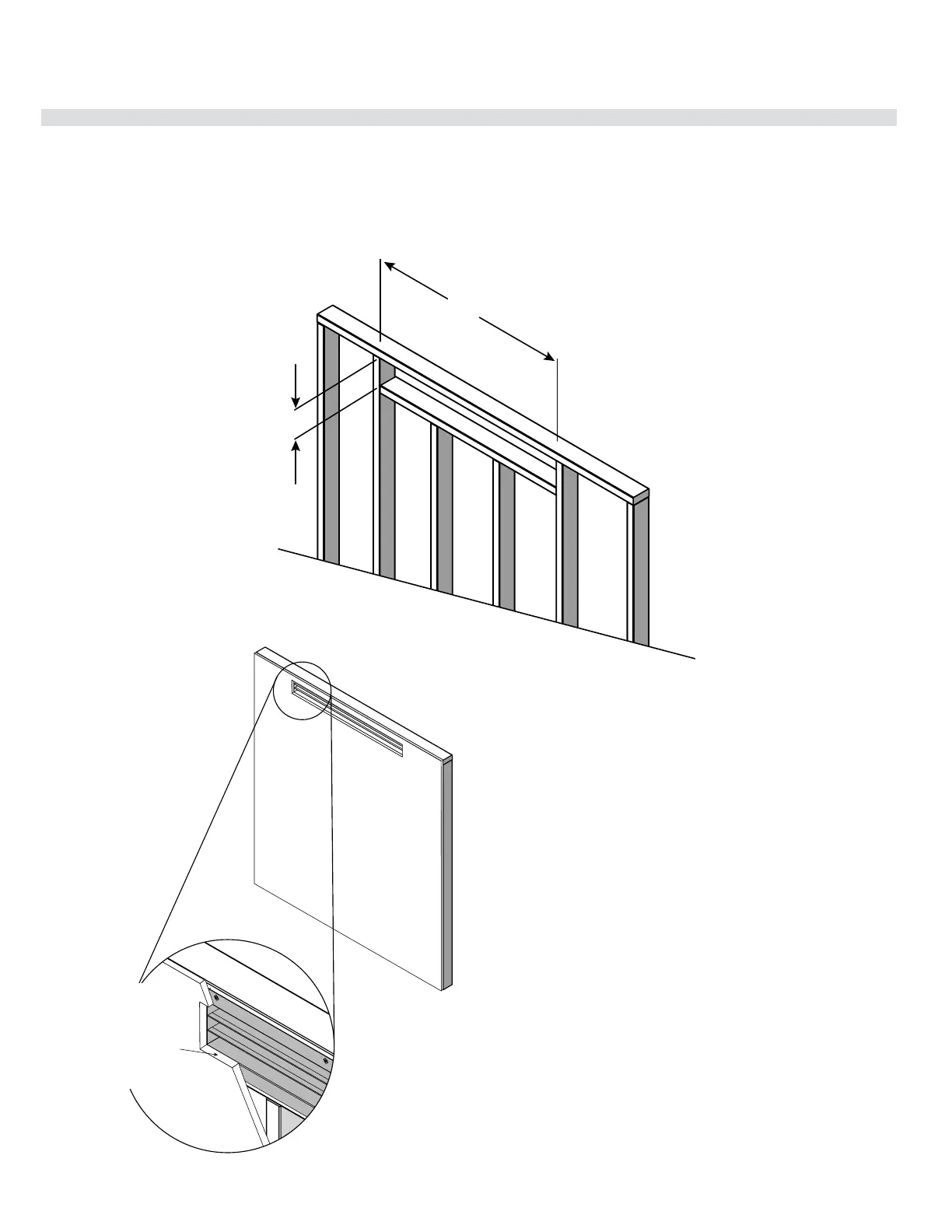

C40 Chase Vent Framing Clearances
Opening for vent
4”-4.5”
(102 mm x 114 mm)
Min 42.25” (1073 mm)
Framed opening must be between 4” (102 mm) and 4.5” (114 mm) tall, and at least 42.25”(1073 mm) wide
to accommodate the chase vent. The top of the chase vent opening must be 3” or less from the top of the
chase enclosure.
40” (1016 mm) Chase Vent
Drywall
Header Stud
C40 Chase Vent Finish Detail
Finish edges of drywall
with trim or corner bead.
Edge finish must not decrease
opening area below 130in (3.25" x
40") or (83 mm x 1016 mm)
Finish edges of drywall
with trim or corner
bead. Edge nish
must not decrease
opening area below
130in (3.25'' x 40'')
or (83mm x 106mm)
This optional ush front chase vent grill is designed so that only the grills are exposed. The 4 anges in front which secure the chase vent grill to the stud
work is covered by the drywall to give a seamless look.
