ADT and ADT View user guide
ADTa-100
5.1.3.2 Set Zero at dened position
Linear system Rotary system
1
3
2
4
5
6
7

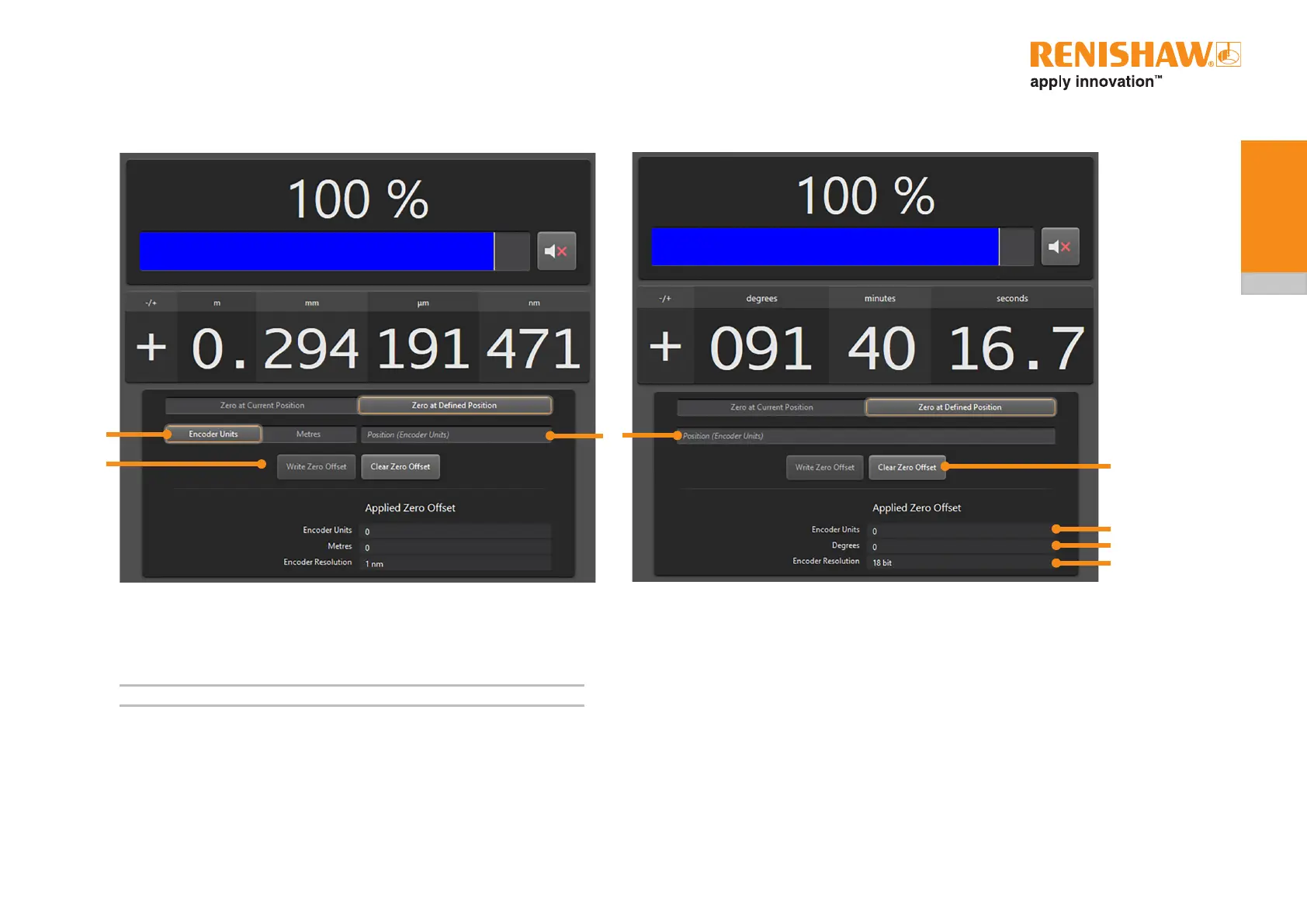

1 Choose to input the position value in encoder or metric units
2 Inputthepositionthatneedstobesettozero
NOTE: For linear systems this can be done either in encoder units or in metric units
3 Rewritethepositionincell‘2’tobezero
4 Cleartheappliedzero–thezeropositionwillberesetbacktothefactoryposition
5 The applied offset from the factory value in encoder units
6 The applied offset from the factory value in metres (linear systems) and in
degrees (rotary systems)
7 The connected readhead resolution
