ADT and ADT View user guide
ADTi-100

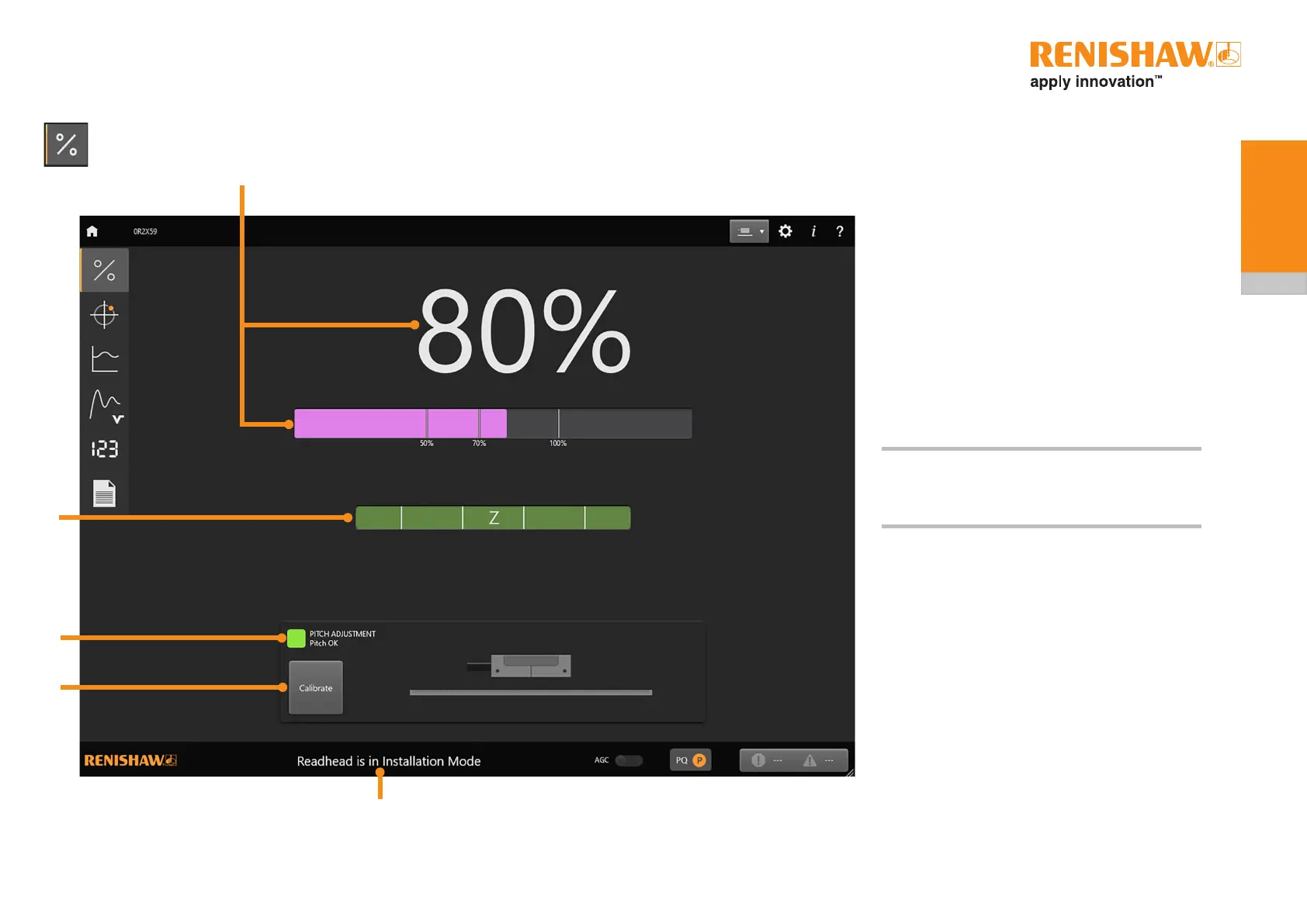

6.1 Signal screen
This signal screen is automatically displayed when the ADT is selected on the ADT View software. It provides information to assist with readhead set-up and calibration.
1 Signal strength indication (section 6.1.1)
2 Reference mark phasing indication (section 6.1.2)
3 Pitch indication where applicable (section 6.1.4) or
Calibration instructions (section 6.1.5)
4 Calibration initiation (section 6.1.5)
5 Readhead mode (section 6.1.3)
When an alarm or warning occurs, a pop-up describing
the error condition will be displayed for 3 seconds.
See section 6.1.6 for more information on alarms and
warnings.
NOTE: For more information on system installation and
set-up refer to the relevant installation guide.
These can be found at
www.renishaw.com/opticalencoders
1
5
2
3
4
