Renishaw ADTi-100 User Manual

5
ADT and ADT View user guide

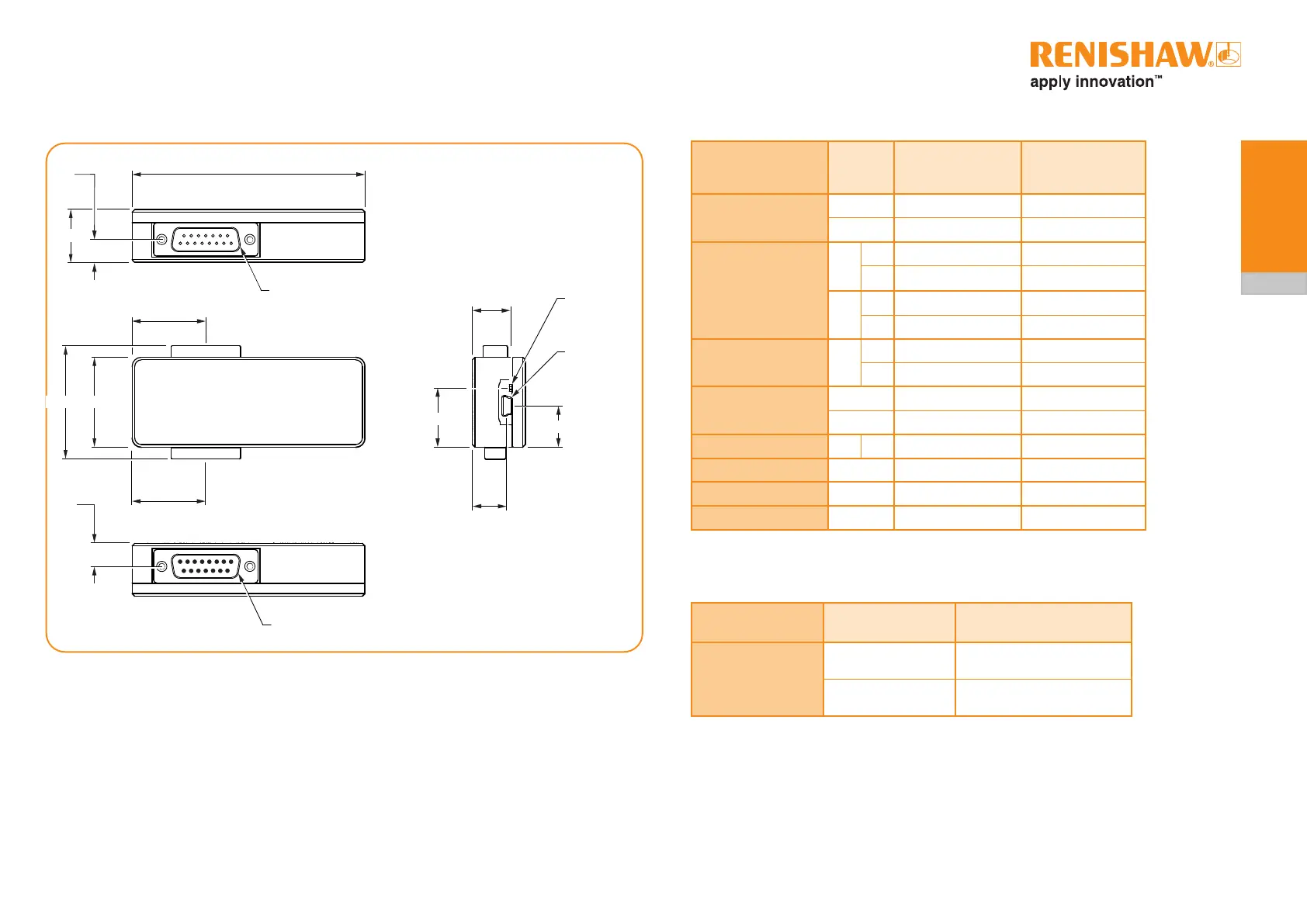

1.9 ADTi-100 dimensions
15-way D-type plug
Dimensions in mm
Mini-B
USB
socket
Status LED
15-way D-type socket
88
28
28
14.5
13
22.4
15.6
20
43 34
8.6
8.6
1.10 ADTi-100 pin-out
Function Signal
Input pins
(15-way D-type
socket)
Output pins
(15-way D-type
plug)
Power
5 V 7, 8 7, 8
0 V 2, 9 2, 9
Incremental
A
+ 14 14
− 6 6
B
+ 13 13
− 5 5
Reference
Mark
Z
+ 12 12
− 4 4
Limits
P 11 11
Q 10 10
Alarm E − 3 3
CAL / Comms – 1 –
Not Connected – 15 15
Shield – Case Case
1.11 ADTi-100 LED indication
LED Indication Status
Status
Red LED
ADT connected to PC
or controller
Green LED
ADT View software
communicating with ADT
