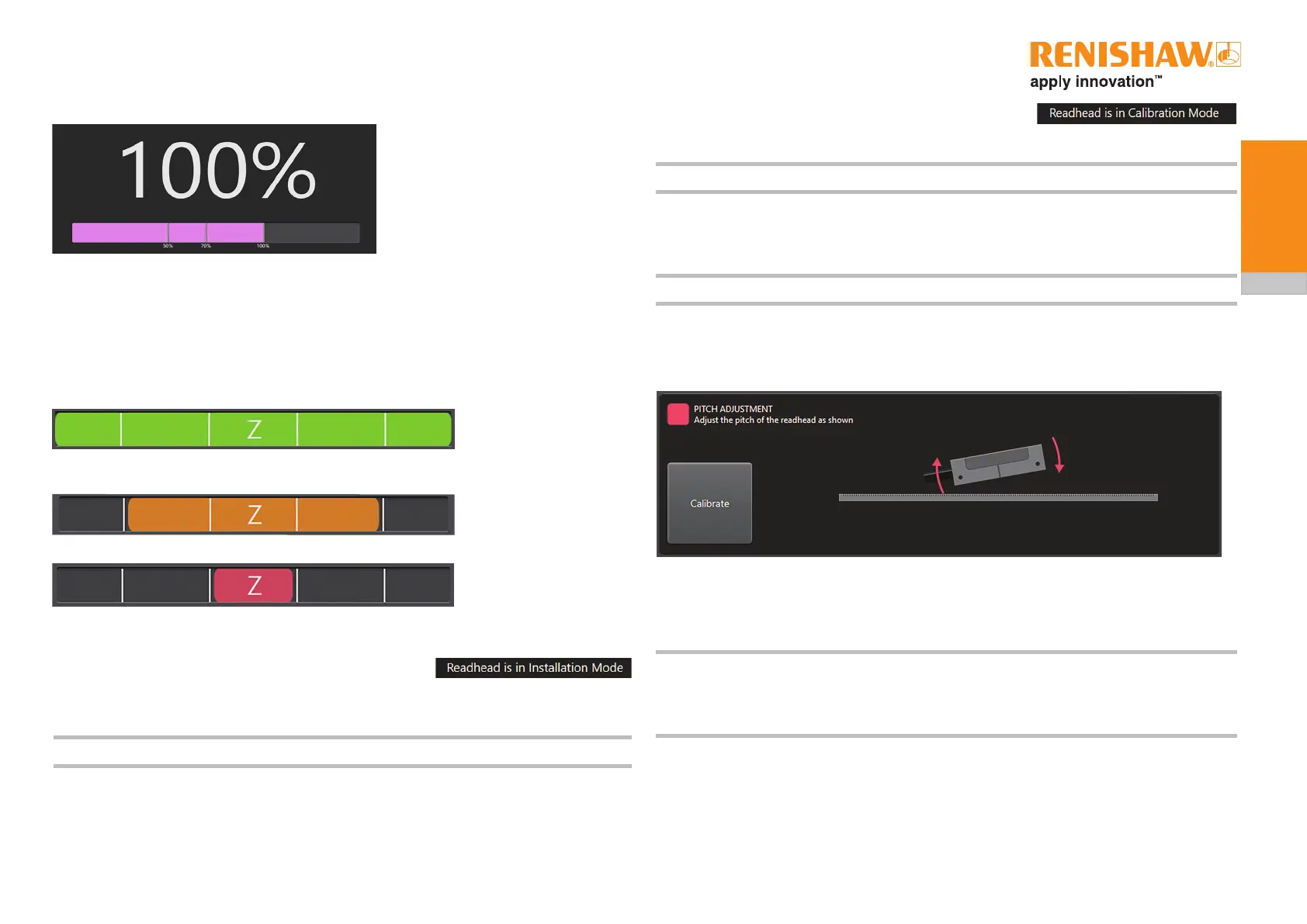

6.1.1 Signal strength
The signal strength is displayed as a percentage and on a signal bar. The signal bar remains purple at all
signal amplitudes regardless of AGC status.
6.1.2 Reference mark phasing
The reference mark phasing is displayed as a coloured bar; the length and colour of the bar indicate the
phasingofthelastreferencemarkpassed.Thebarashesbrightlyforafewsecondsasthereference
mark is passed then fades, retaining the colour of the last reference mark.
6.1.3 Readhead mode
Installation mode
Whenthereadheadisrstswitchedon(outofthebox),orafterfactorydefaultshavebeenrestored
(section 6.6.1) the readhead is in installation mode. ‘Readhead is in Installation Mode’ will be displayed
in the bottom bar.
NOTE: AGC is disabled in installation mode and cannot be switched on.
Set the readhead up as detailed in the relevant installation guide, these can be found at
www.renishaw.com/opticalencoders.
Well phased reference
mark, no action required.
Poorly phased reference
mark; recalibration
recommended.
Incorrectly phased
reference mark, recalibrate
the system (section 6.1.5).
Calibration mode
Once the readhead has been set up the system must be calibrated (section 6.1.5), ‘Readhead is in
Calibration Mode’ is displayed in the bottom bar during calibration.
NOTE: AGC is disabled in calibration mode and cannot be switched on.
Normal mode
Once the readhead has been calibrated the incremental and reference mark values are stored in the
readheadand‘CalibrationSequenceComplete’willbedisplayedbrieyinthebottombar.Thereadhead
willautomaticallyreturntonormalrunningmodeandnotextwilldisplayedinthebottombar.
NOTE: AGC is automatically enabled once the calibration sequence is completed.
6.1.4 Pitch indication
During installation mode and normal operation the pitch of the readhead is displayed. The colour of the
indicator and arrows will change depending on the pitch of the readhead. The arrows show the direction
the readhead should be adjusted.
Green The pitch of the readhead is optimum, no adjustment is required.
Orange The pitch of the readhead is within tolerance but adjustment is recommended to
optimise performance. Adjust pitch of the readhead as indicated.
Red The pitch of the readhead is out of tolerance. Adjust pitch of the readhead as indicated.
NOTES:
• Thepitchisnotdisplayedwhenthesignalsizeislessthan10%orwhenthesystemisin
calibration mode.
• Pitch indication is not available on ATOM DX readheads.
