ADT and ADT View user guide
ADTi-100

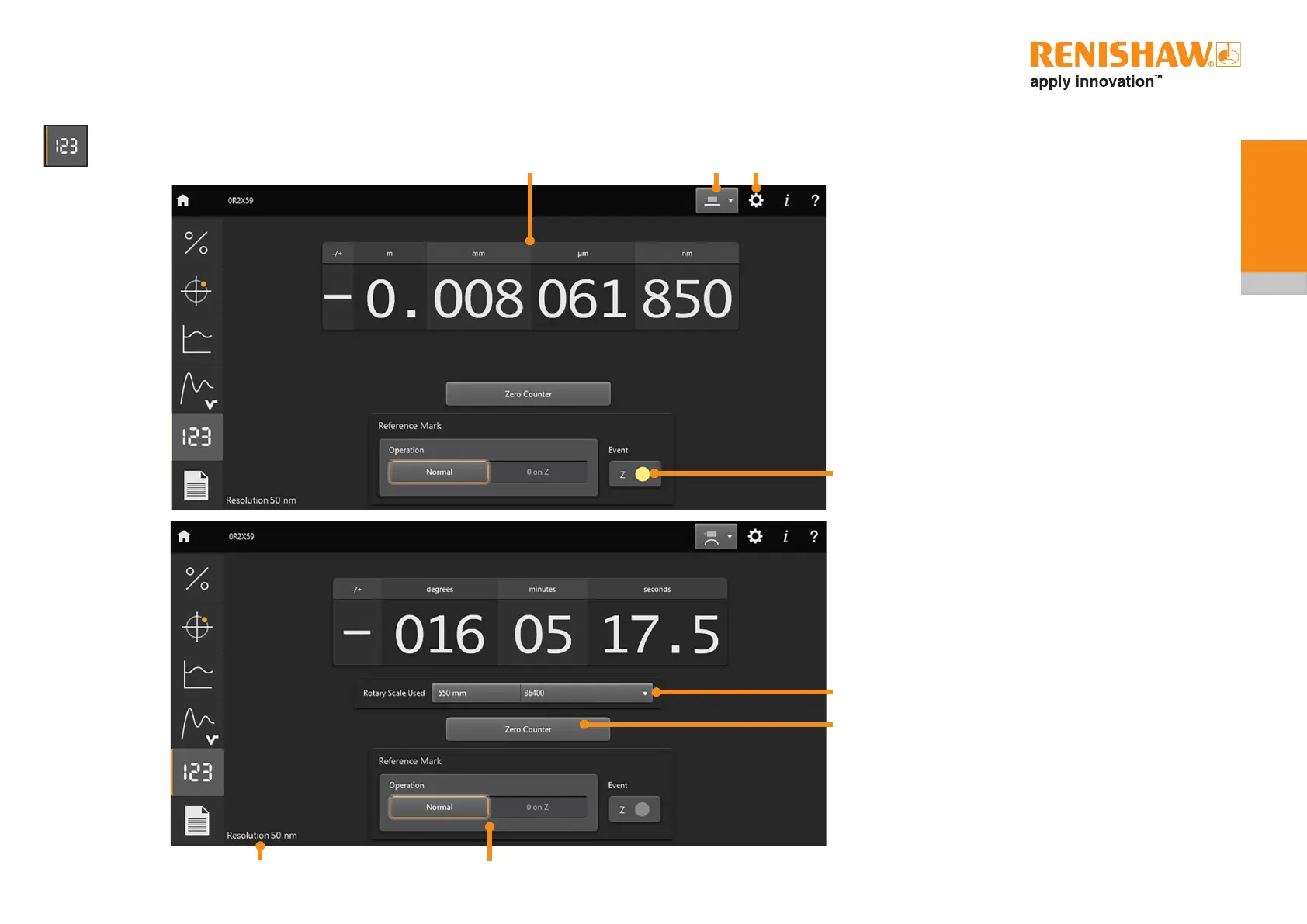

6.5 Position display (Digital readout)
This screen displays a linear or rotary Digital readout (DRO) of the encoder position, the default is linear.
1 Digital readout of the encoder position
2 Linear/rotary selection (section 5.1.3.1 and section
5.1.3.2)
3 Select angular display units and add ring diameters
(section 4)
4 Indication of reference mark location (section 6.5.3)
5 Selection of ring diameter (section 6.5.2)
6 Zero counter (section 6.5.3)
7 Resolution of readhead
8 Reference mark operation selection (section 6.5.3)
When an alarm or warning occurs, a pop-up describing the error
condition will be displayed for 3 seconds. See section 6.1.6 for
more information on alarms and warnings.
4
1
5
2
7
8
6
3
Linear DRO
(section 6.5.1)
Rotary DRO
(section 6.5.2)
