Renishaw ADTi-100 User Manual

27
ADT and ADT View user guide
ADTi-100

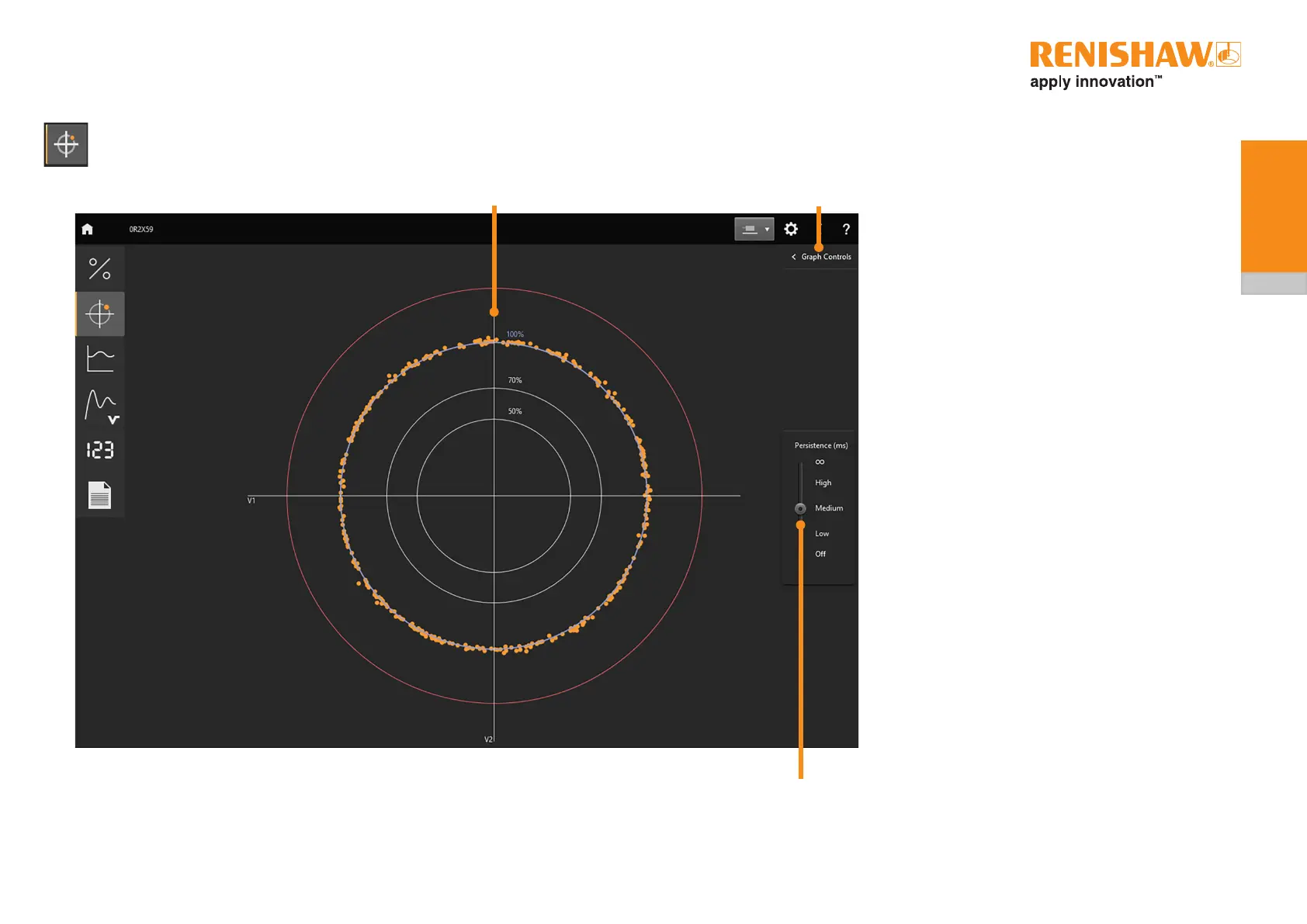

6.2 Lissajous (X-Y) screen
The Lissajous screen shows a plot of the readhead’s internal cosine (X) and sine (Y) signals.
1 The circle increments are in 25% steps with the
optimumsignalsize(100%)shownasabluecircle
2 Select to show/hide Graph Controls
3 Slide bar to vary Lissajous persistence
When an alarm or warning occurs, a pop-up describing
the error condition will be displayed for 3 seconds.
See section 6.1.6 for more information on alarms and
warnings.
1
3
2
