Reolink RLN8-410 User Manual

Reolink PoE NVR
User Manual
12
4.Surveillance

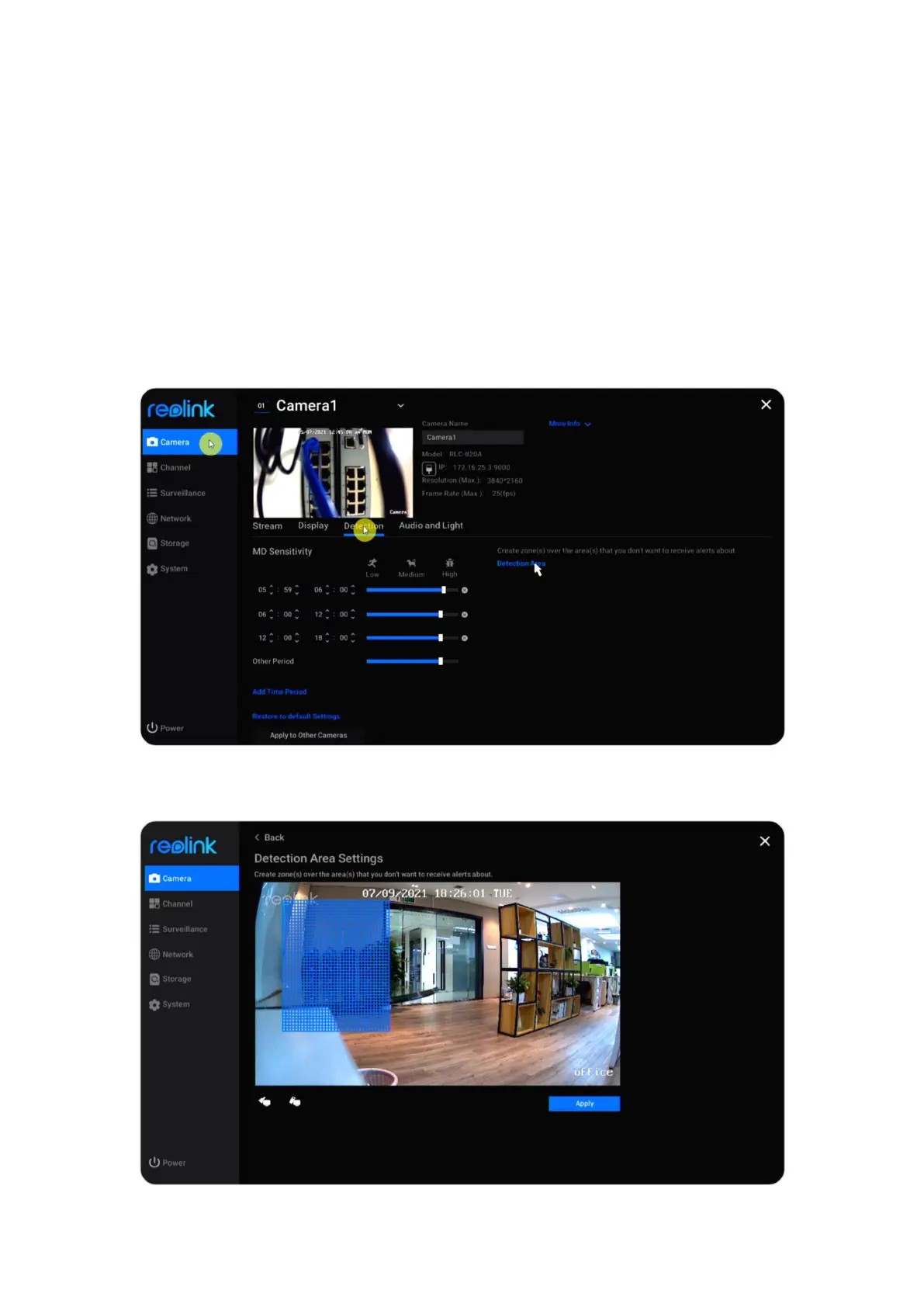

Set up Motion Detection
Go to Camera > Detection, here you can set up the motion detection (MD)
sensitivity and detection area.
Click Add Time Period to set a time period with a sensitivity, you can set a
maximum of 4 different sensitivity time periods.
Click Detection Area, you can draw the areas where you don’t want to detect the
motion. Click Apply to save your detection area settings.

Reolink RLN8-410 Specifications

General

Video codecs	H.264
Display modes	Live view
Number of users	20 user(s)
Maximum resolution	3840 x 2160 pixels
Video input channels	8 channels
Supported resolutions	3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
On/off switch	Yes
Product color	Black
Audio RCA outputs	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Power over Ethernet (PoE) ports quantity	8
Wi-Fi	No
HDD capacity	2000 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	8 TB
Output current	2 A
Output voltage	48 V
Power consumption (max)	25 W
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	230 mm
Width	260 mm
Height	41 mm
Weight	1200 g
