Reolink RLN8-410 User Manual

Reolink PoE NVR
User Manual
15

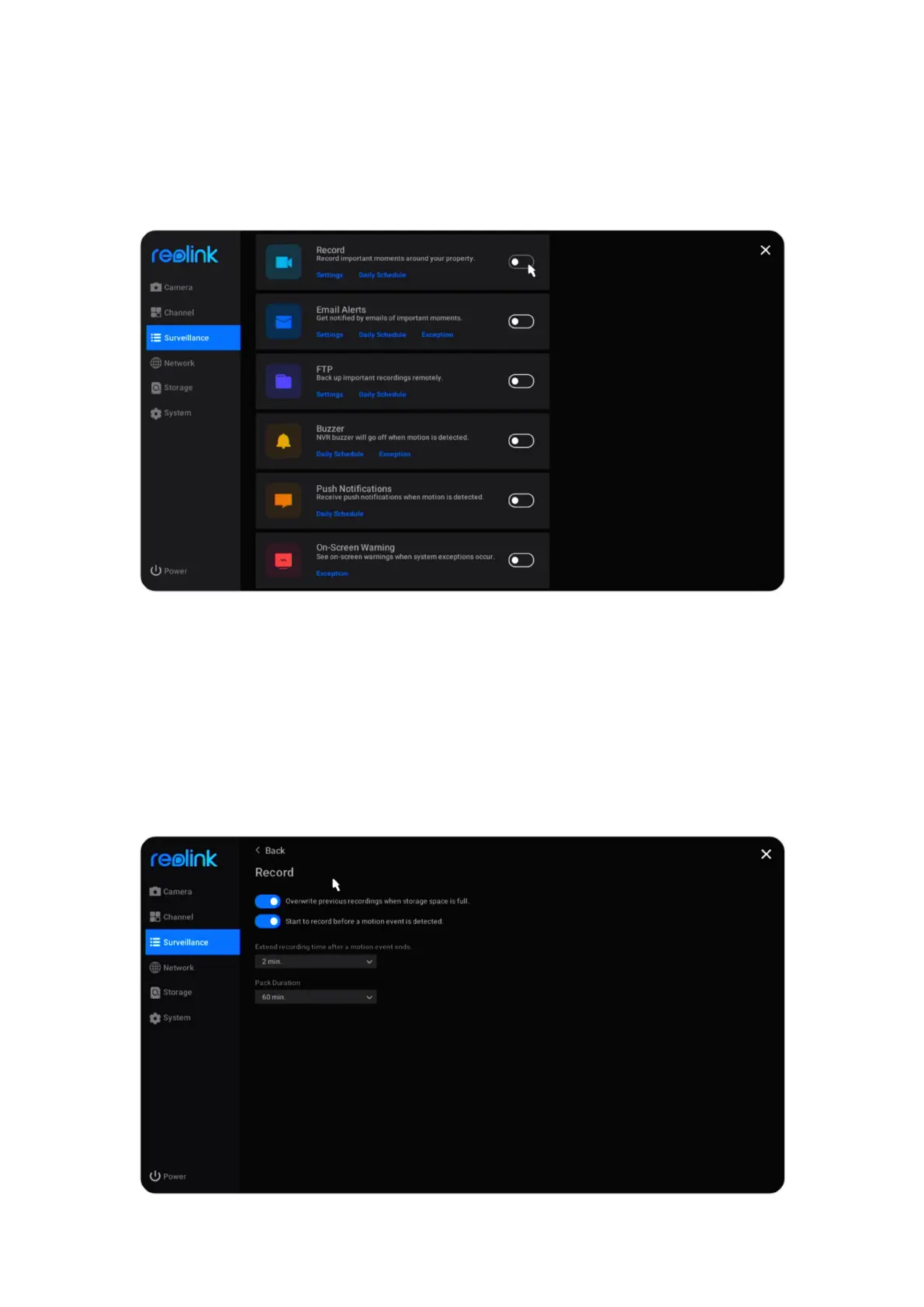

Set up Motion Recording
Please set up the motion detection first, then go to Surveillance > Record to
enable the motion recording.
Click Settings under Record option.
Enable Overwrite, it’ll automatically overwrite the previous recordings when the
HDD is full. Choose if to enable Start to record before a motion event is detected
according to your need.
Set the Extended recording time after a motion event ends from 1 min, 2 min, 5
min, or 10 min.
Set the Pack Duration from 30 min, 45 min, or 60 min. The package duration is the
maximum lengthen of a recording file.

Reolink RLN8-410 Specifications

General

Video codecs	H.264
Display modes	Live view
Number of users	20 user(s)
Maximum resolution	3840 x 2160 pixels
Video input channels	8 channels
Supported resolutions	3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
On/off switch	Yes
Product color	Black
Audio RCA outputs	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Power over Ethernet (PoE) ports quantity	8
Wi-Fi	No
HDD capacity	2000 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	8 TB
Output current	2 A
Output voltage	48 V
Power consumption (max)	25 W
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	230 mm
Width	260 mm
Height	41 mm
Weight	1200 g
