Reolink RLN8-410 User Manual

Reolink PoE NVR
User Manual
28

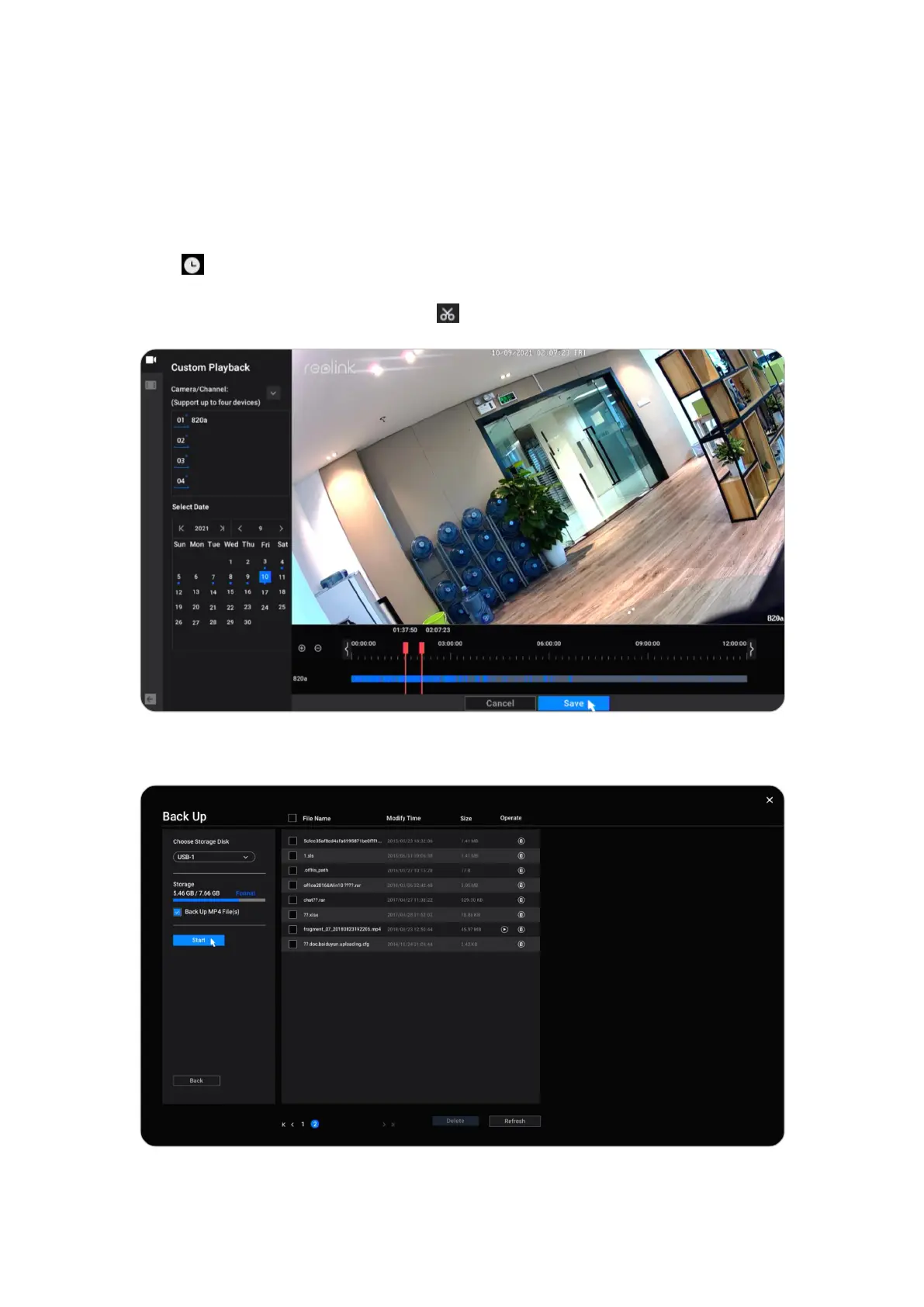

Download Recordings
Cut and Download
Connect a USB drive to the USB port of the NVR for downloading the recordings.
Click icon on the live image screen to enter the playback page. Select the
camera and date to search the recordings to play back.
At the bottom of playback page, click to cut a clip of recording. Drag on the
timeline to set the start time and end time for the cut. Then click Save.
Choose the storage disk to save the cut recording clip. Check the option Back Up
MP4 File, it’ll convert the recording into mp4 for saving. And then Click Start.

Reolink RLN8-410 Specifications

General

Video codecs	H.264
Display modes	Live view
Number of users	20 user(s)
Maximum resolution	3840 x 2160 pixels
Video input channels	8 channels
Supported resolutions	3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
On/off switch	Yes
Product color	Black
Audio RCA outputs	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Power over Ethernet (PoE) ports quantity	8
Wi-Fi	No
HDD capacity	2000 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	8 TB
Output current	2 A
Output voltage	48 V
Power consumption (max)	25 W
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	230 mm
Width	260 mm
Height	41 mm
Weight	1200 g
