User Manual
17

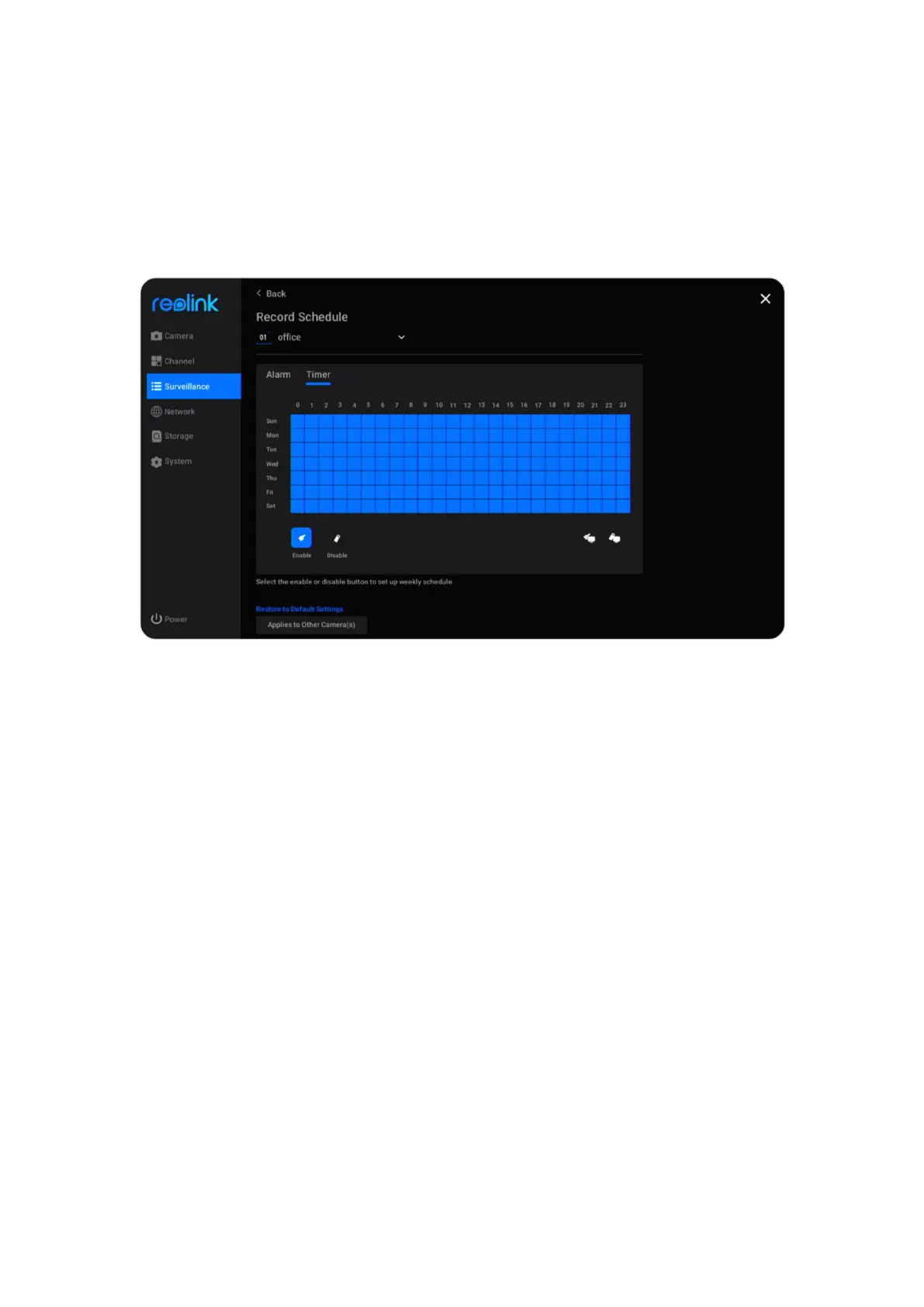

Set up Continuous Recording
Please set up the recording settings first, then go to Surveillance > Record > Daily
Schedule, choose the camera you want to set up. Click Timer, here you can set up
a schedule for when you’d like the continuous recording to work.
If you keep all schedule disabled, then it’ll not save any continuous recordings.
Note:
You can save both motion-triggered recordings and continuous recordings
simultaneously by setting up their own Alarm or Timer schedule.
Set up Motion Alerts
Alarm Email
Alarm email allows the camera to send an email with plain text, camera’s live
image or video when the camera detects a motion.
Set up Alarm Email
Go to Surveillance > Email Alerts, click to enable email alert.

Reolink RLN8-410 Specifications

General

Video codecs	H.264
Display modes	Live view
Number of users	20 user(s)
Maximum resolution	3840 x 2160 pixels
Video input channels	8 channels
Supported resolutions	3840x2160, 1920x1080, 1440x900, 1280x1024, 1280x800, 1280x720, 1024x768
On/off switch	Yes
Product color	Black
Audio RCA outputs	1
Networking standards	IEEE 802.3af, IEEE 802.3at
USB 2.0 ports quantity	2
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN (RJ-45) ports	9
Supported network protocols	HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
Power over Ethernet (PoE) ports quantity	8
Wi-Fi	No
HDD capacity	2000 GB
HDD interface	SATA, SATA II, SATA III
Maximum storage capacity	8 TB
Output current	2 A
Output voltage	48 V
Power consumption (max)	25 W
Operating temperature (T-T)	-10 - 45 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	230 mm
Width	260 mm
Height	41 mm
Weight	1200 g
