XCell™ Lab Controller
User Guide
27
repligen.com XC-LAB-UG-V4

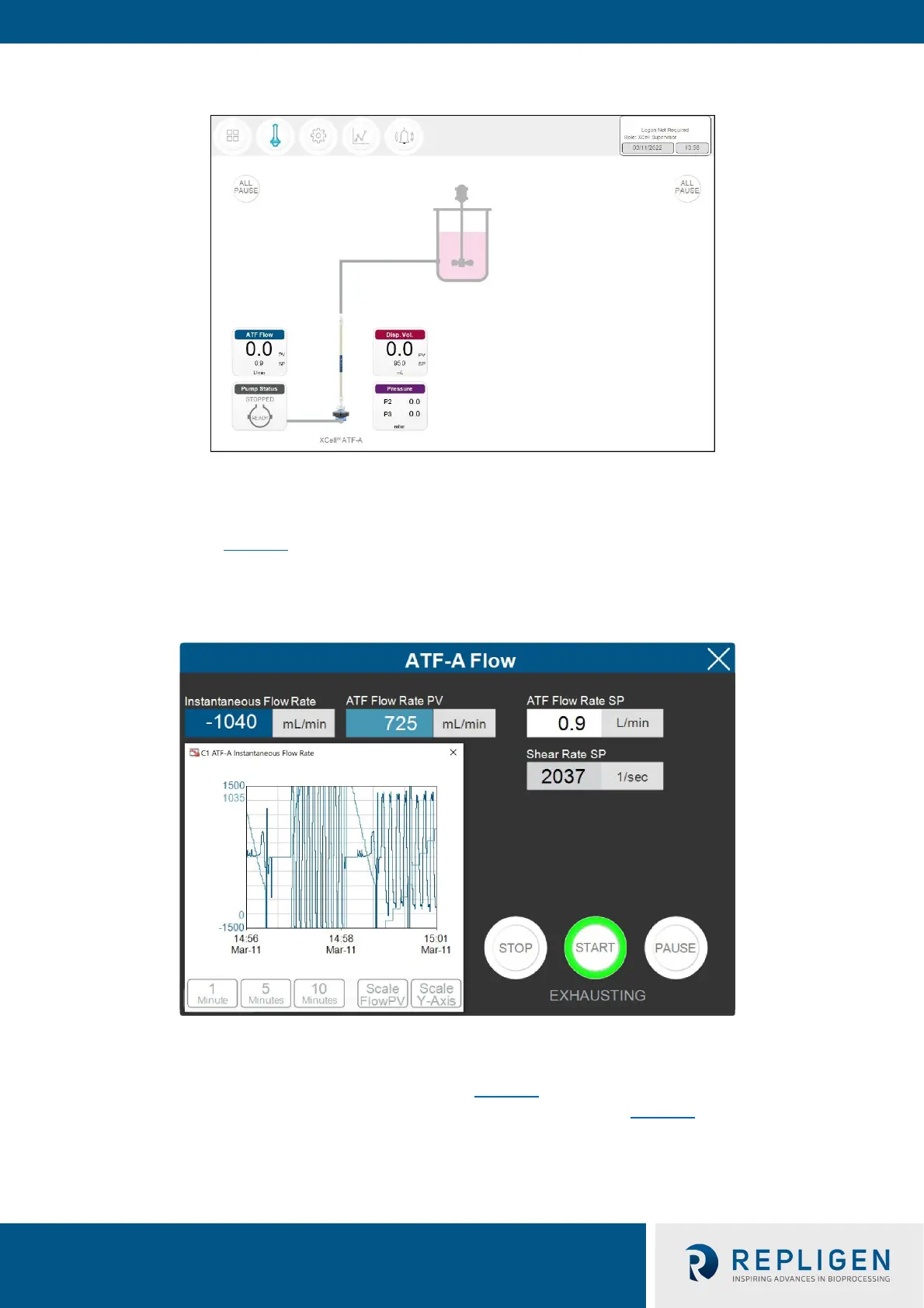

Figure 16. Example - Dual controller and single XCell ATF® Device
A S (single) model controller will display only one bioreactor and one XCell ATF® Device. A D (dual) or
D-P model controller configured for a single XCell ATF® Device will display one XCell ATF® Device and
one bioreactor (Figure 16
).
7.8 Pop-ups
Figure 17. ATF Flow pop-up example
A dedicated Pop-up that contains more detailed information exists for each process variable
(colored boxes). For example, the ATF Flow Pop-Up displays the ATF Flow Rate (PV and SP), the
Instantaneous Flow Rate, Shear rate SP and a chart (Figure 17
). When two devices are connected to
the controller, an additional option to set the dual ATF pump synch mode (Figure 19).
