Revolectrix Dual PowerLab 8x2 - Configuration A: Single Pack Charging

15

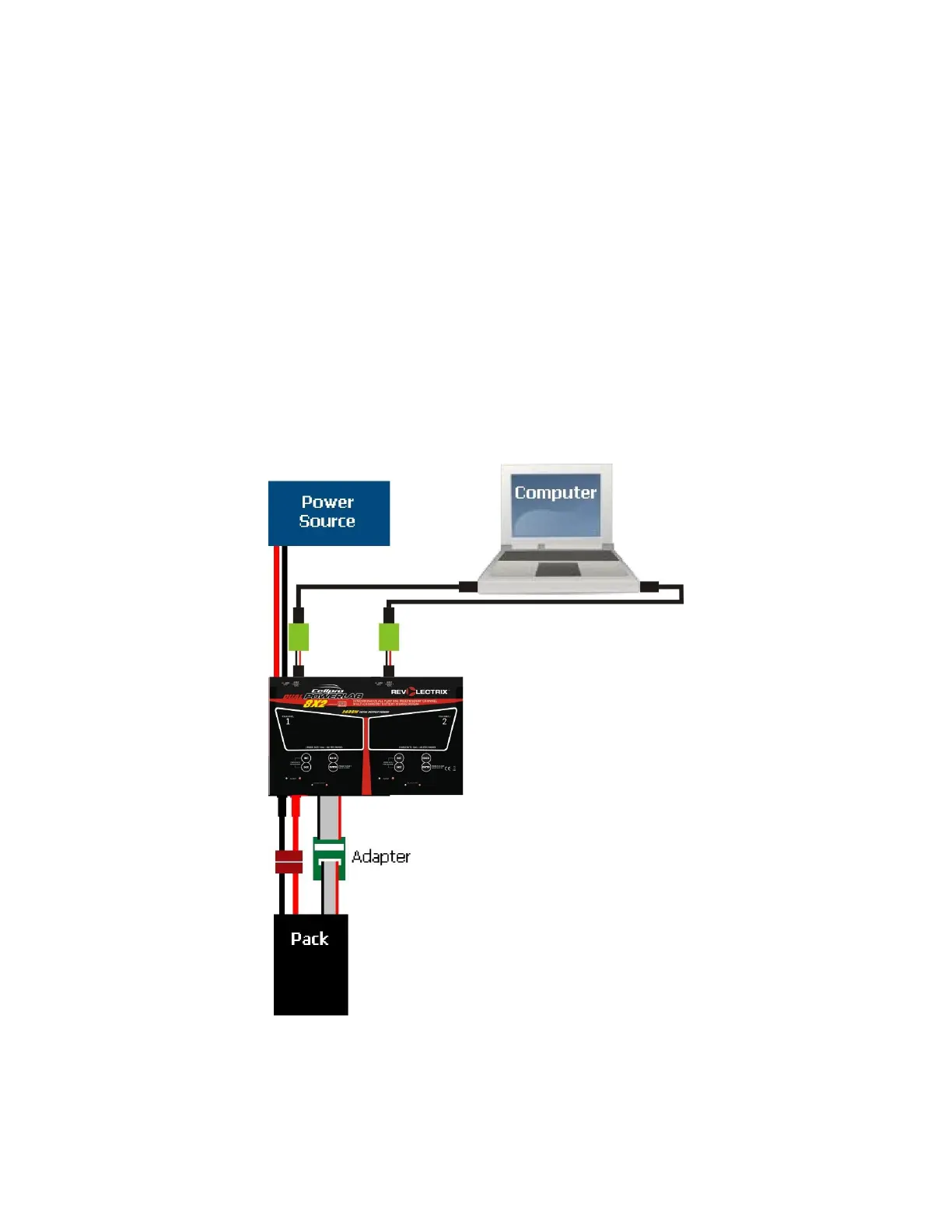

Configuration A
Summary: basic one-pack charging through balance and discharge wires.
Components:
 1 Dual PowerLab 8x2
 1 power source
 1 standard adapter or Safe Adapter
 Optional FUIM3 for computer support
Dual PowerLab 8x2 mode (Normal or Expansion Channel): Normal.
Dual PowerLab 8x2 maximum charge power: up to 1344W charge to one pack (8s)
using 40VDC/1700W power source.
