Revolectrix Dual PowerLab 8x2 User Manual

20

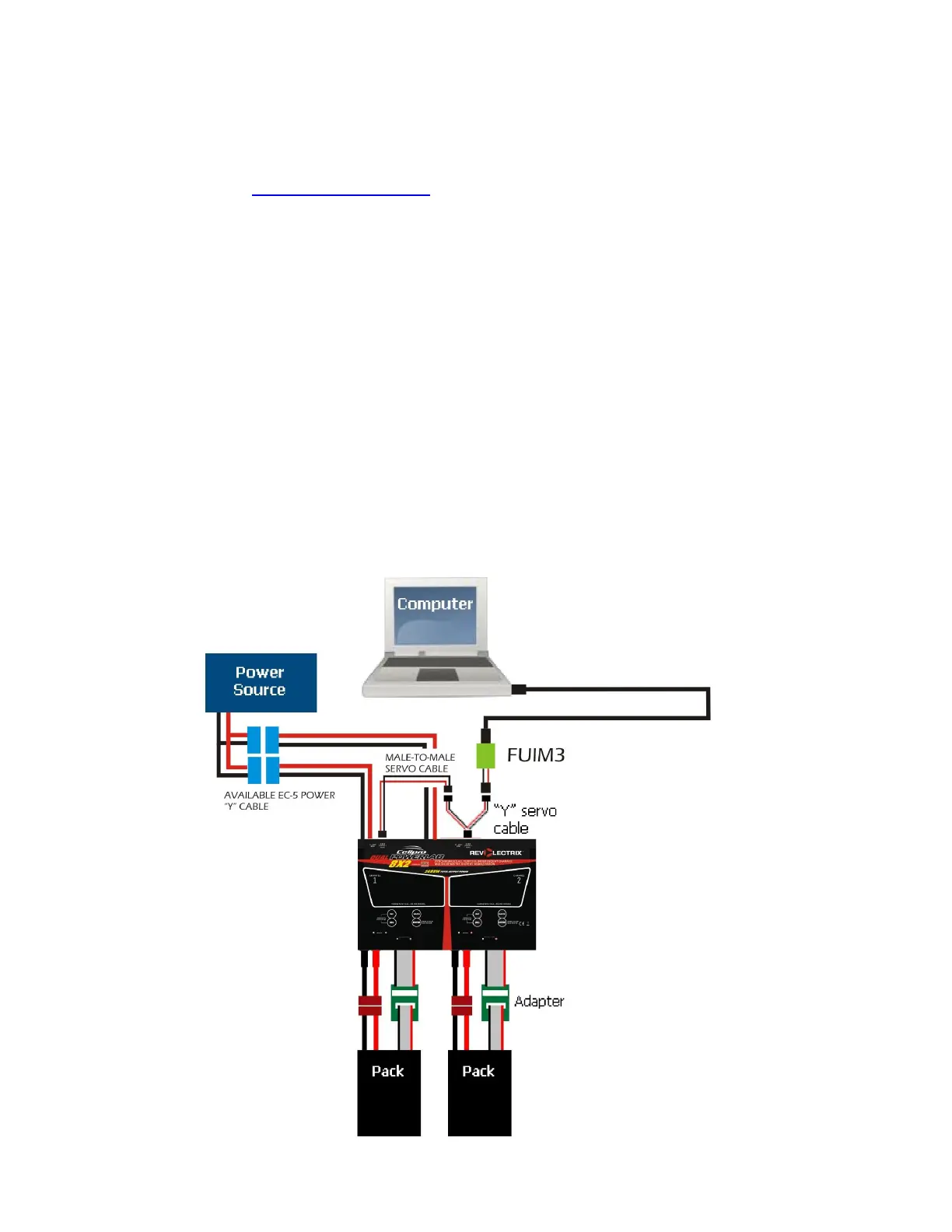

Configuration D
Summary: two Dual PowerLab channels charging separate packs, one power source,
Expansion Channel Mode.
Components:
 1 Dual PowerLab 8x2
 1 or 2 power source(s) (one shown)
 2 standard adapters or Safe Parallel Adapters (1 adapter per pack) or MPAs
 2 or more packs (Safe Parallel Adapters and MPA require same cell count for all
packs)
 1 optional FUIM3 for computer support
 1 optional “Y” servo cable (required for Expansion Channel operation with
computer support)
 Male-male servo cable (required for Expansion Channel operation with or without
computer support) 
Dual PowerLab 8x2 mode: Expansion Channel.
Dual PowerLab 8x2 maximum charge power: up to 1344W to each pack (8s) using
40VDC/3400W power source. Standard house circuit would likely not provide enough
power; would require 240VAC power supply for full power. Optionally, power each
channel using 40VDC/1700W power sources on 2 x 20A breakers.
