59

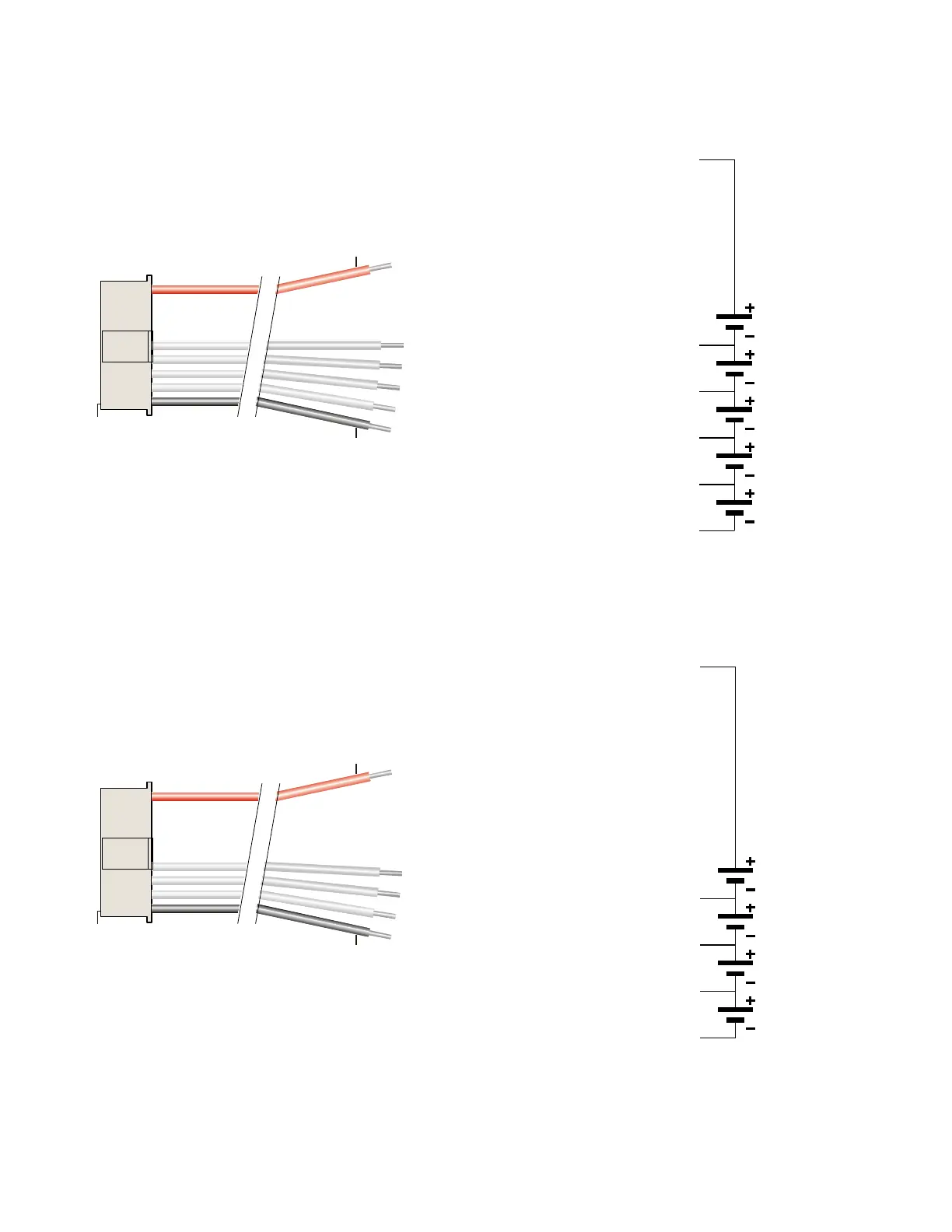

Pin 1
Red
Black
Pack positive
Node 4
Node 3
Node 2
Node 1
Pack negative
5s Pack
Pack positive
(red), 18.5V*
Node 4, 14.8V*
Node 3, 11.1V*
Node 2, 7.4V*
Node 1, 3.7V*
Pack negative
(blk), 0V
Cell 5
Cell 4
Cell 3
Cell 2
Cell 1
* Nominal voltage with
respect to pack negative
FMA Cellpro Connector/FMA Wiring Mode
Pin 1
Red
Black
Pack positive
Node 3
Node 2
Node 1
Pack negative
4s Pack
Pack positive
(red), 14.8V*
Node 3, 11.1V*
Node 2, 7.4V*
Node 1, 3.7V*
Pack negative
(blk), 0V
Cell 4
Cell 3
Cell 2
Cell 1
* Nominal voltage with
respect to pack negative
FMA Cellpro Connector/FMA Wiring Mode
