Rexroth IndraDrive M Electrical Data 6-13
DOK-INDRV*-HMS+HMD****-PR04-EN-P
Designation Symbol Unit HMS01.1N-
W0020
HMS01.1N-
W0036
HMS01.1N-
W0054
HMS01.1N-
W0070
I
out_peak_5 (4 kHz)
A
12,4 21,9 37,7 44,1
I
out_peak_5 (8 kHz)
A
8,5 15,5 21,6 25,1
I
out_peak_5 (12 kHz)
A
5,1 9,8 13,2 15,0
Maximum output
current
t=60s; T=10min; K=1,2
I
out_peak_5 (16 kHz)
A
2,8 6,2 8,2 9,7
I
out_base_5 (4 kHz)
A
10,3 18,3 31,4 36,7
I
out_base_5 (8 kHz)
A
7,1 12,9 18,0 20,9
I
out_base_5 (12 kHz)
A
4,3 8,2 11,0 12,5
Base load current
available at maximum
current
t=60s; T=10min; K=1,2
I
out_base_5 (16 kHz)
A
2,3 5,1 6,9 8,1

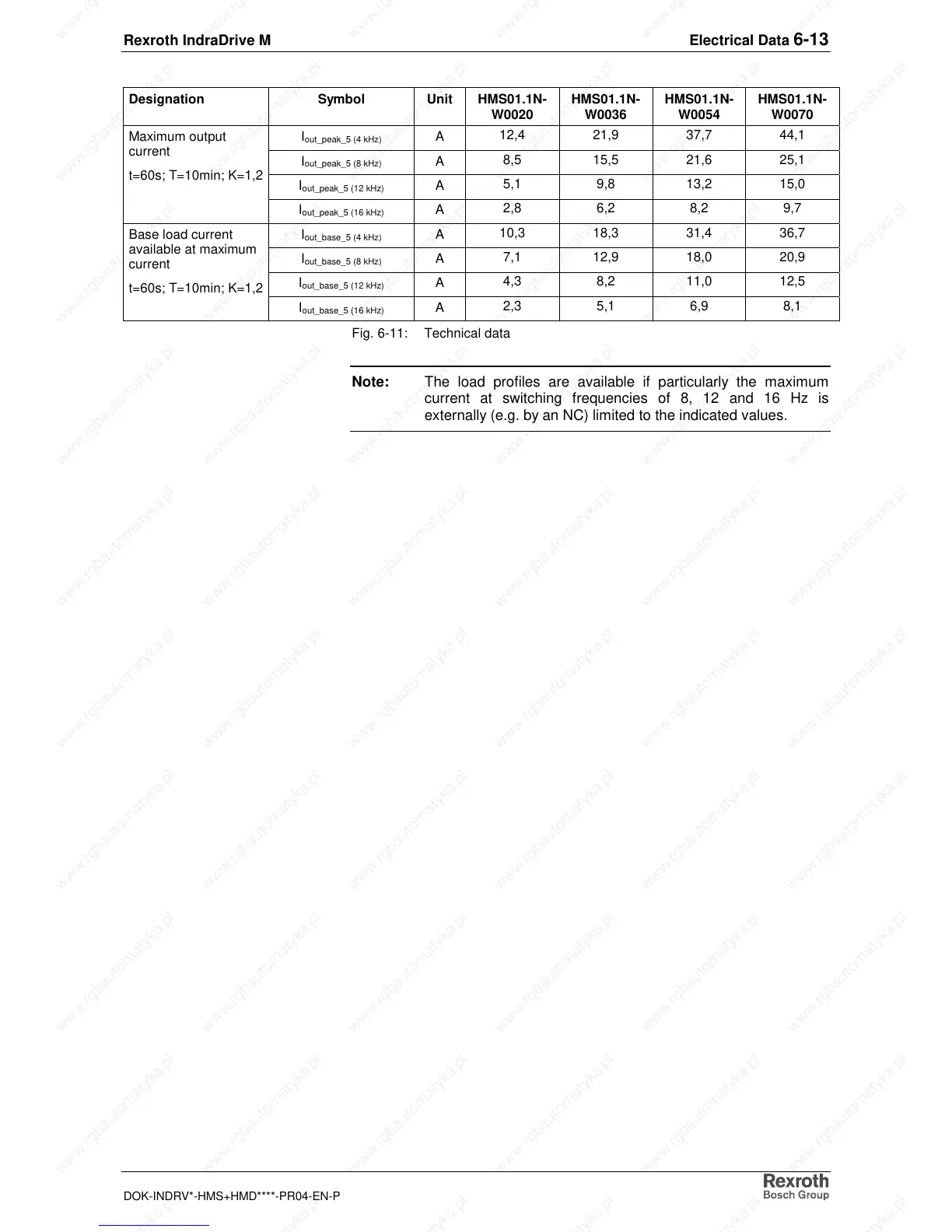

Fig. 6-11: Technical data
Note: The load profiles are available if particularly the maximum
current at switching frequencies of 8, 12 and 16 Hz is
externally (e.g. by an NC) limited to the indicated values.
