6-24 Electrical Data Rexroth IndraDrive M
DOK-INDRV*-HMS+HMD****-PR04-EN-P
HMS01.1N-W0054 and HMS01.1N-W0070
hms0070_frontf2
X1 out
+24 V
0 V
L+
L-
control voltage
DC bus
equipment
grounding
conductor
X1 in

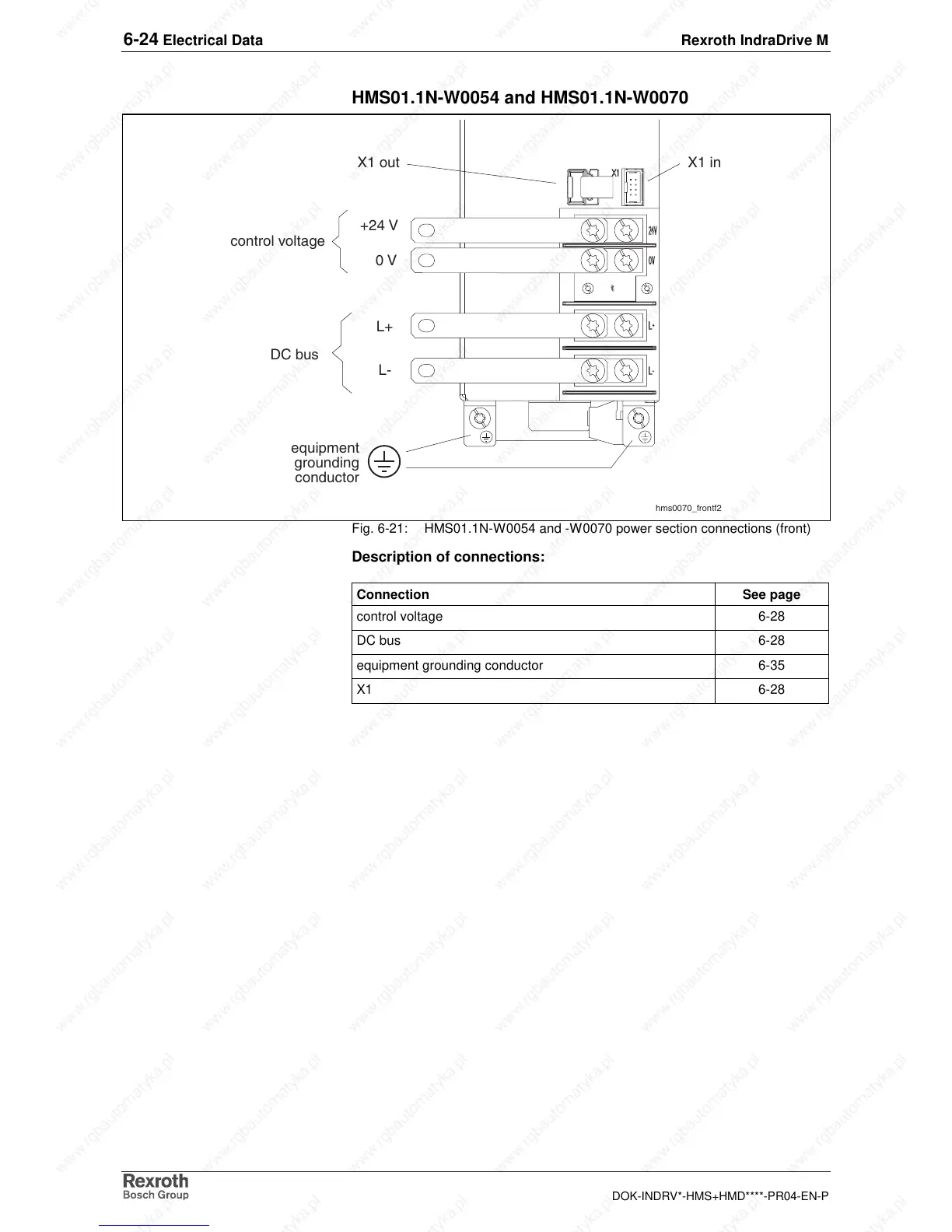

Fig. 6-21: HMS01.1N-W0054 and -W0070 power section connections (front)
Description of connections:
Connection See page
control voltage 6-28
DC bus 6-28
equipment grounding conductor 6-35
X1 6-28
