Rexroth IndraDrive M Electrical Data 6-25
DOK-INDRV*-HMS+HMD****-PR04-EN-P
X5
X6
hms0070_x5_x6.fh7
XS2

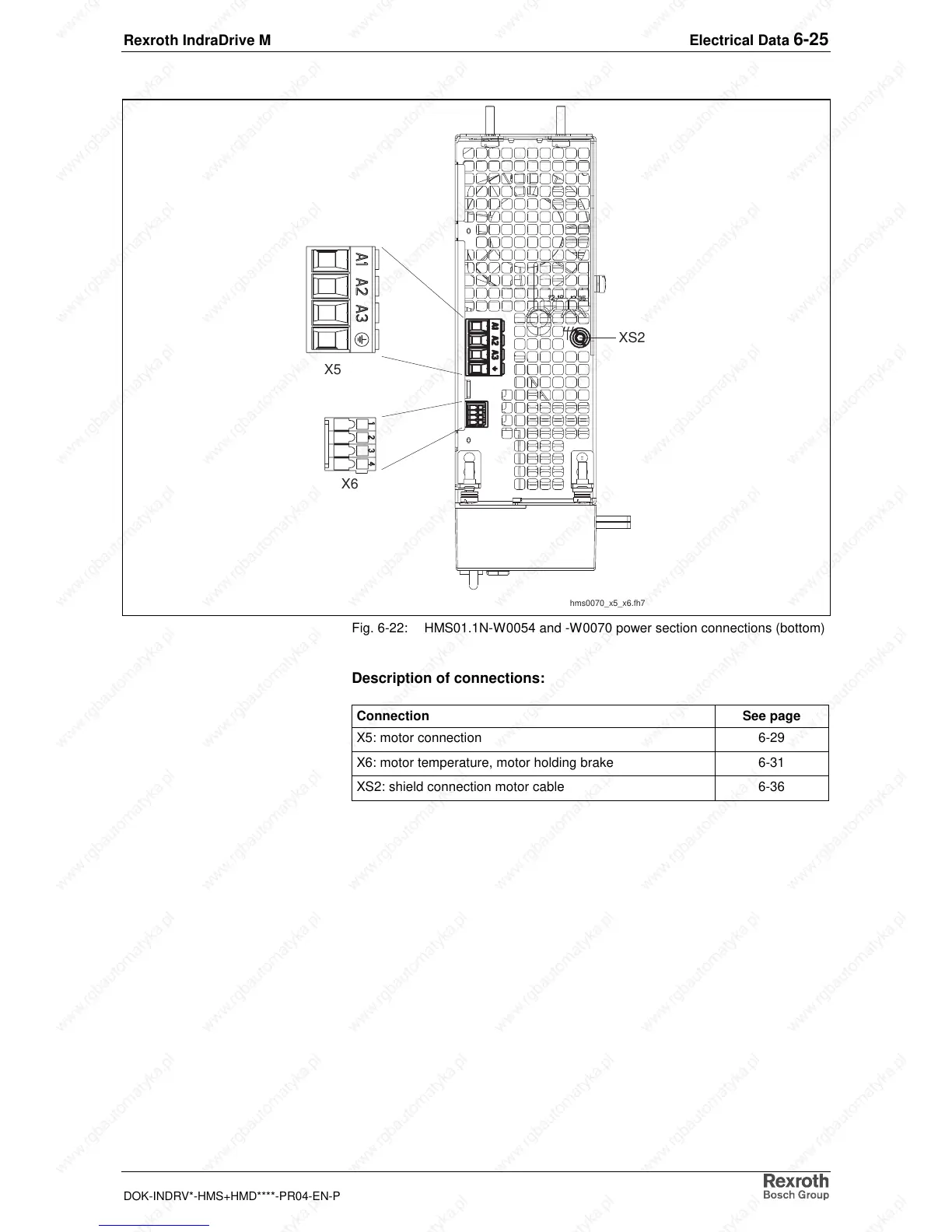

Fig. 6-22: HMS01.1N-W0054 and -W0070 power section connections (bottom)
Description of connections:
Connection See page
X5: motor connection 6-29
X6: motor temperature, motor holding brake 6-31
XS2: shield connection motor cable 6-36
