Since the copier’s original alignment position is at the left rear corner (not in
the center), the originals fed from the DJF must also be at this position. But if
the original was to be fed along the rear scale, original skews, jams or
wrinkling, may occur.

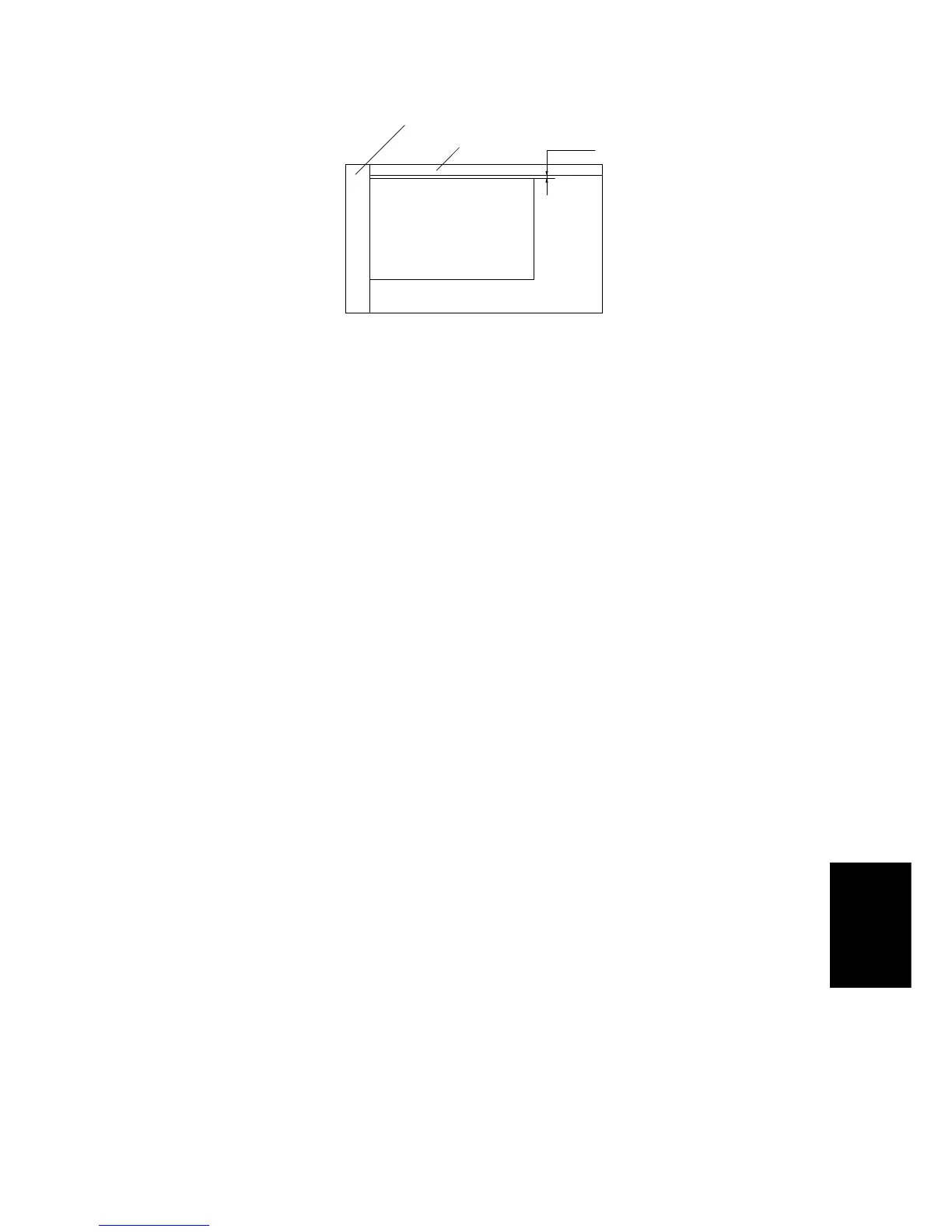

To prevent such problems, the original transfer position is set to 5.0 mm
away from the rear scale as shown. The correction for this 5.0 mm gap is
compensated for by the base copier’s optics unit.
Left Scale
Rear Scale
Original
5.0 mm
Dual Job Feeder
DF62 (A610)
SM 7-13 A172/A199
