2000/3000-sheet Finishers (D373/D374)

SM 2-61 D062/D063/D065/D066

Installation

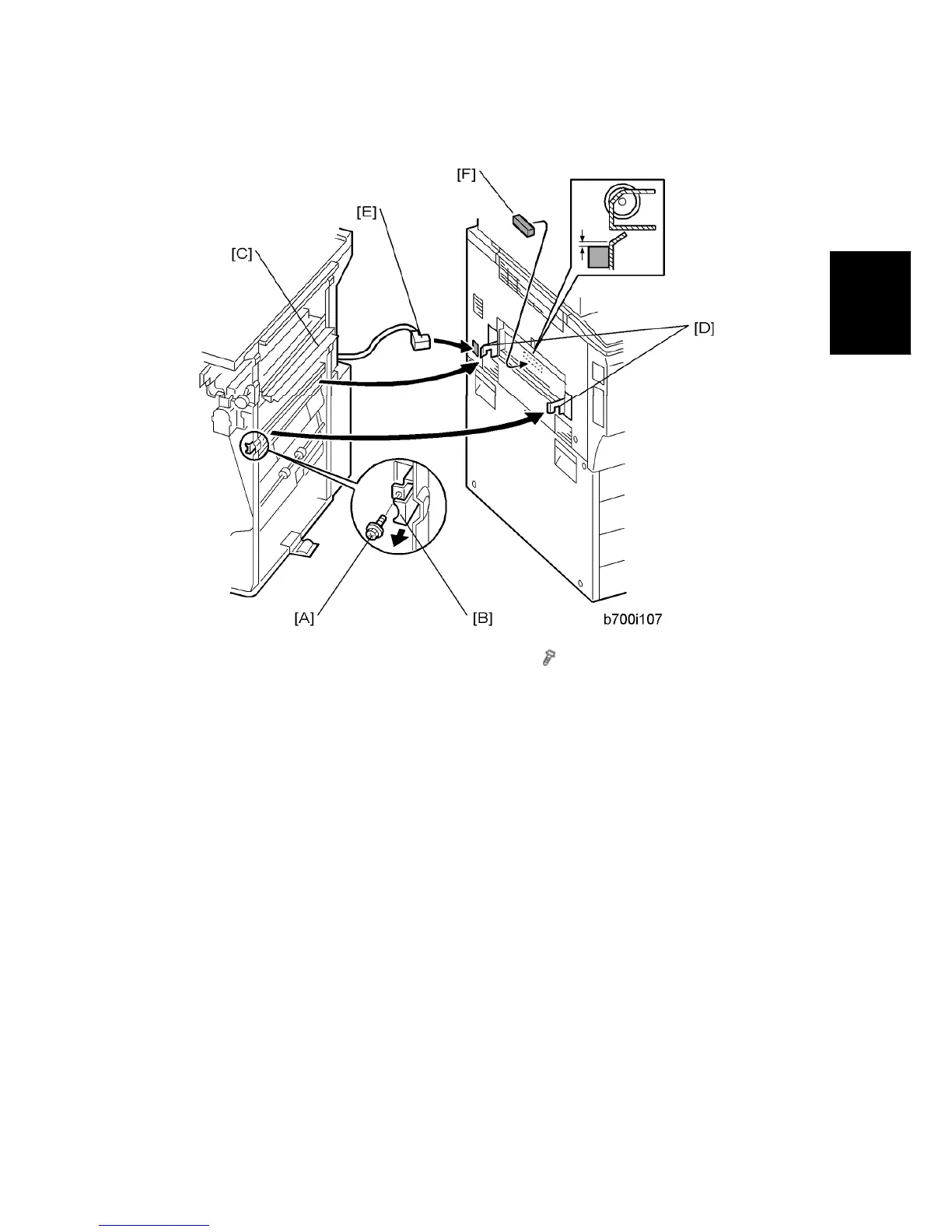

4. Remove the screw [A] to release the lock lever [B] ( x 1).

5. To avoid bending and damaging the paper entrance guide plates [C], slowly push the

finisher against the side of the machine until the brackets [D] enter their slots.

6. Connect connector [E] to the main frame.

7. Attach the gasket seal [F] as shown.

8. Push the finisher against the machine.

9. Push in lock lever [B] then reattach the screw [A].
