Ricoh Aficio MP 8001 Service Manual

PCBs and HDD
SM 4-113 D062/D063/D065/D066
Replacement
and
Adjustment

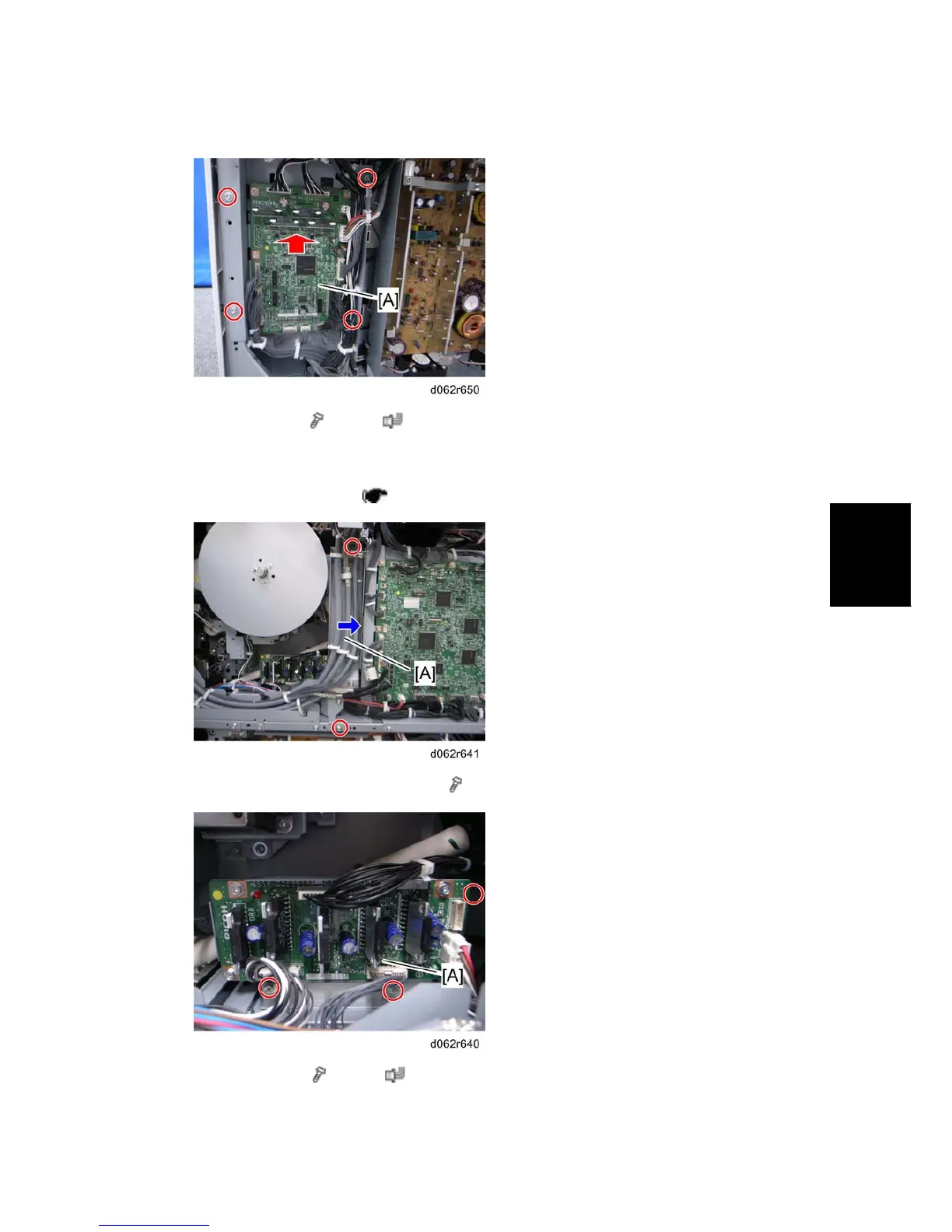

2. PFB bracket [A] (
x 4, all s)
4.12.9 DRB
1. Open the controller box ( p.4-105 "CNT Board (Controller Board)")
2. Move the stay [A] slightly to the right (
x 2)
3. DRB bracket [A] (
x 3, all s)
