Ricoh Aficio MP 8001 Service Manual

Drum Unit
SM 4-25 D062/D063/D065/D066
Replacement
and
Adjustment
4.6 DRUM UNIT
4.6.1 DEVELOPMENT UNIT REMOVAL
Drum Removal

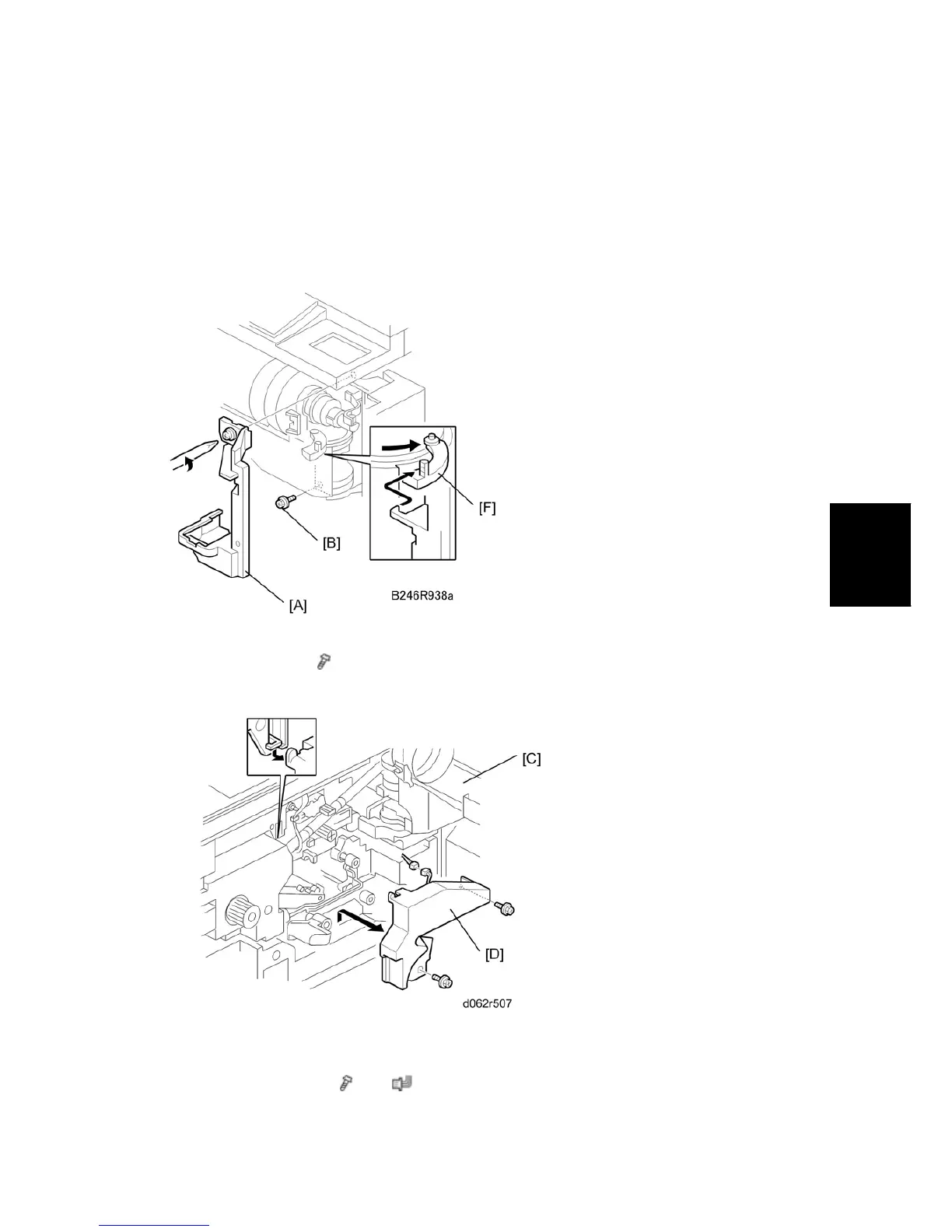

1. Open the front door.
2. Shutter cover [A] (
x 1)
3. Lock screw [B]
4. Toner bottle [C]
 Pull the toner bottle holder out and swing the toner bottle holder to the right.
5. PCU inner cover [D] (
x 2, x 1)
