Ricoh Aficio MP 8001 Service Manual

Scanner
D062/D063/D065/D066 4-14 SM
4. Exposure lamp [C] ( x 1, x 1, x 1)
 Never touch the surface of the exposure lamp with bare fingers.

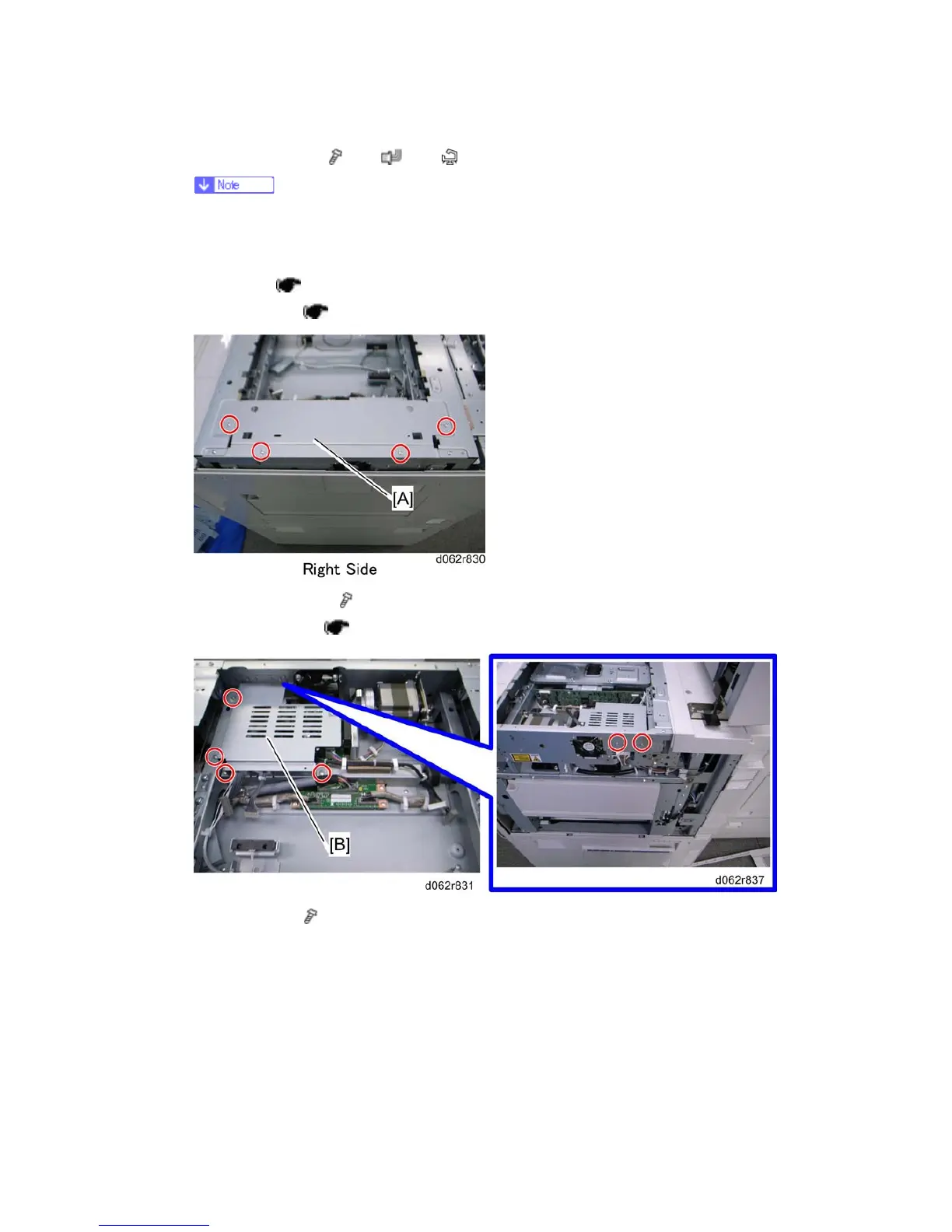

4.4.6 SIOB
1. Lens block ( p.4-13)
2. Top right cover (
p.4-10 "ADF and Top Covers")
3. Top right bracket [A] (
x 4)
4. Right upper cover (
p.4-7 "Right Covers")
5. SIOB cover [B] (
x 6)
