ADF
D062/D063/D065/D066 4-126 SM

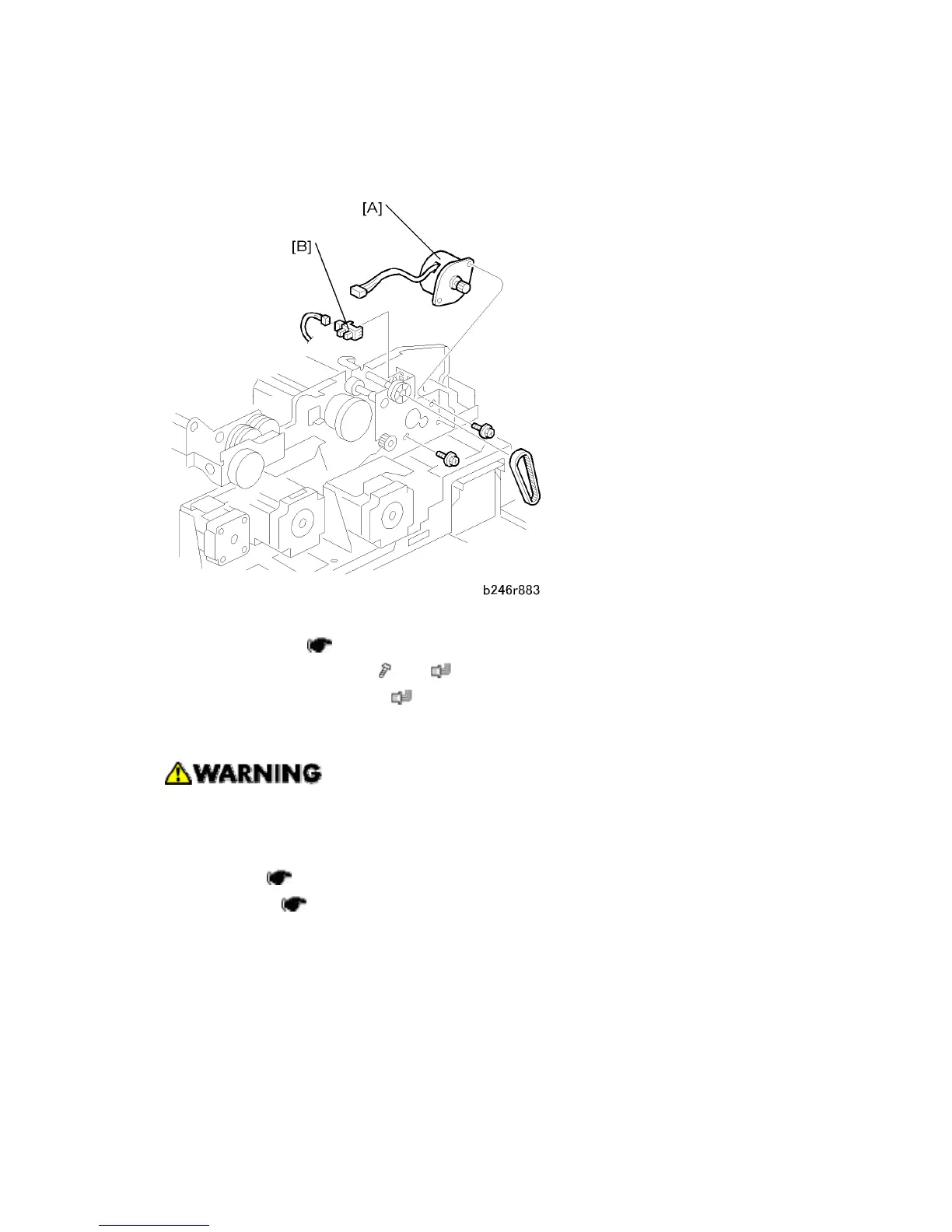

4.13.14 PICK-UP ROLLER MOTOR AND HP SENSOR
1. Open the feed cover.
2. ADF rear cover ( p.4-115)
3. Pick-up roller lift motor [A] (
x 2, x 1)
4. Pick-up roller HP sensor [B] (
x 1)
4.13.15 CIS UNIT
Turn off the main power switch and unplug the machine before performing this
procedure.
1. Open the feed cover.
2. Feed unit (
p.4-116)
3. Guide plate (
p.4-118)
