PCBs and HDD
D062/D063/D065/D066 4-114 SM
4.12.10 PSU

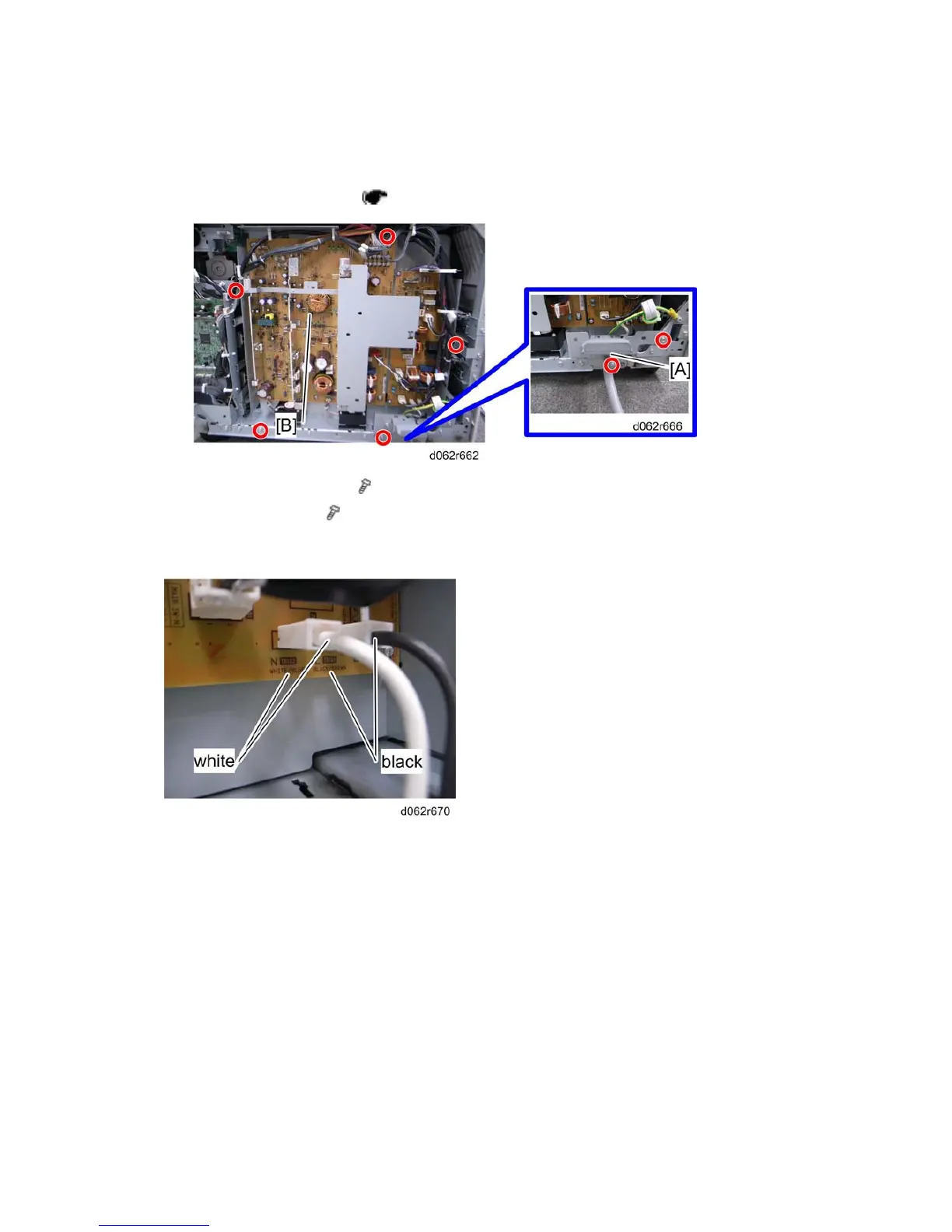

1. Open the controller box ( p.4-105 "CNT Board (Controller Board)")
2. Power cord bracket [A] (
x 2)
3. PSU assembly [B] (
x 5)
Reinstallation of PSU
Make sure the white cable and black cables are connected correctly.
