Ricoh Aficio MP 8001 Service Manual

ADF
SM 4-125 D062/D063/D065/D066
Replacement
and
Adjustment
3. Feed motor ( x 2, [B] x 1)

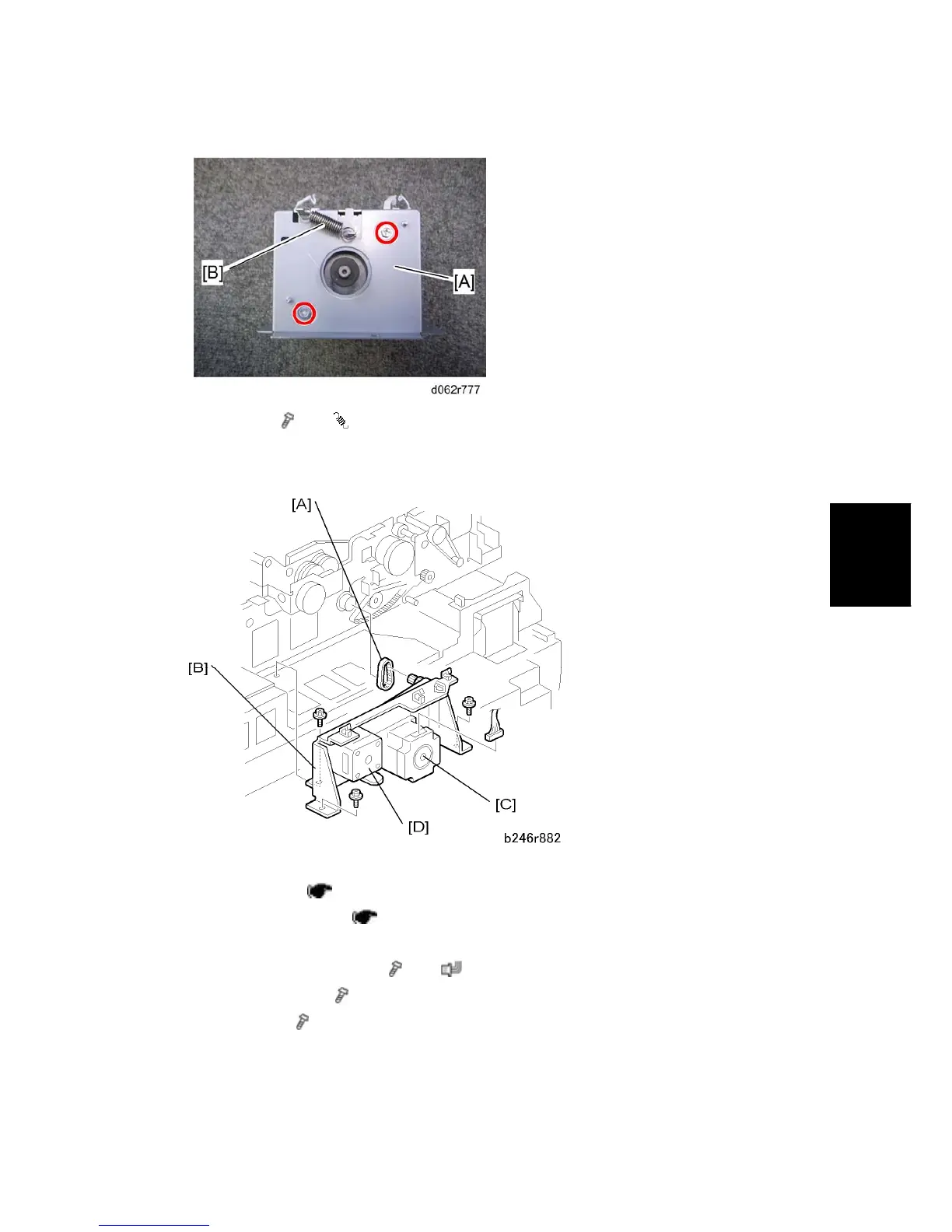

4.13.13 EXIT MOTOR AND TRANSPORT MOTOR
1. Open the feed cover.
2. ADF rear cover (
p.4-115)
3. Bottom plate lift motor (
p.4-124)
4. Timing belt [A]
5. Exit/transport motor unit [B] (
x 3, x 2)
6. Transport motor [C] (
x 2)
7. Exit motor [D] (
x 2)
