Ricoh Aficio MP 8001 Service Manual

Paper Feed
D062/D063/D065/D066 4-94 SM

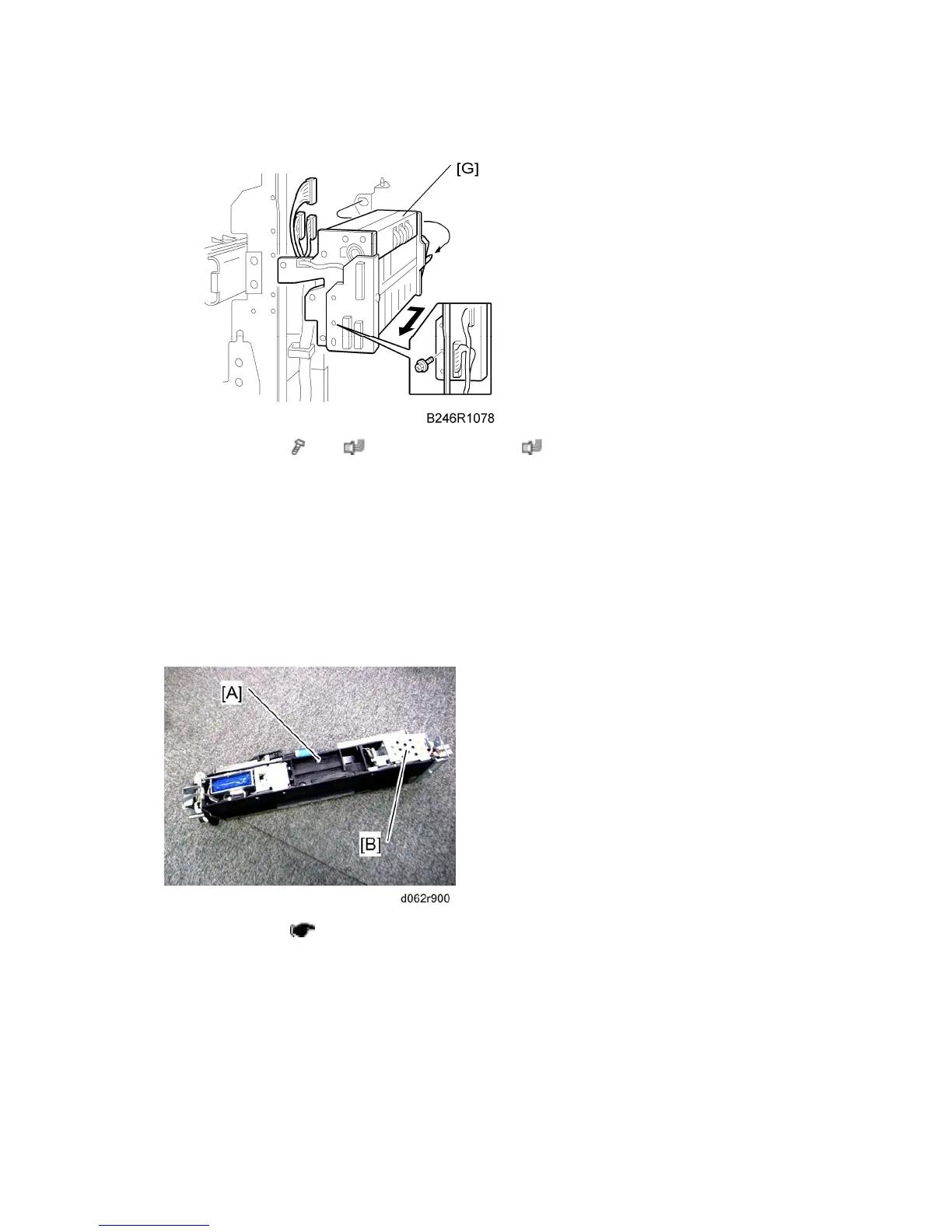

6. Feed unit [G] (
x 1, x 3 for D062/D063 or x 2 for D065/D066)
 Insert your hand from the right and pull the feed unit forward.
 To avoid hitting the unit on the sides of the machine, remove it carefully and slowly.
4.11.10 PAPER FEED MOTORS
D062/D063 have the paper feed motor in each feed unit. However, D065/D066 have the
feed motors at the rear of the machine.
For D062/D063
1. Feed unit [A] (
p.4-92 "Feed Unit")
 Paper feed motor [B]
