Ricoh Aficio MP 8001 Service Manual

DETAILS
SM 45 B513/B531
Output
Jogger Unit/
Punch Unit
B513/B53131
6.12 JOGGER UNIT B513 (OPTION)

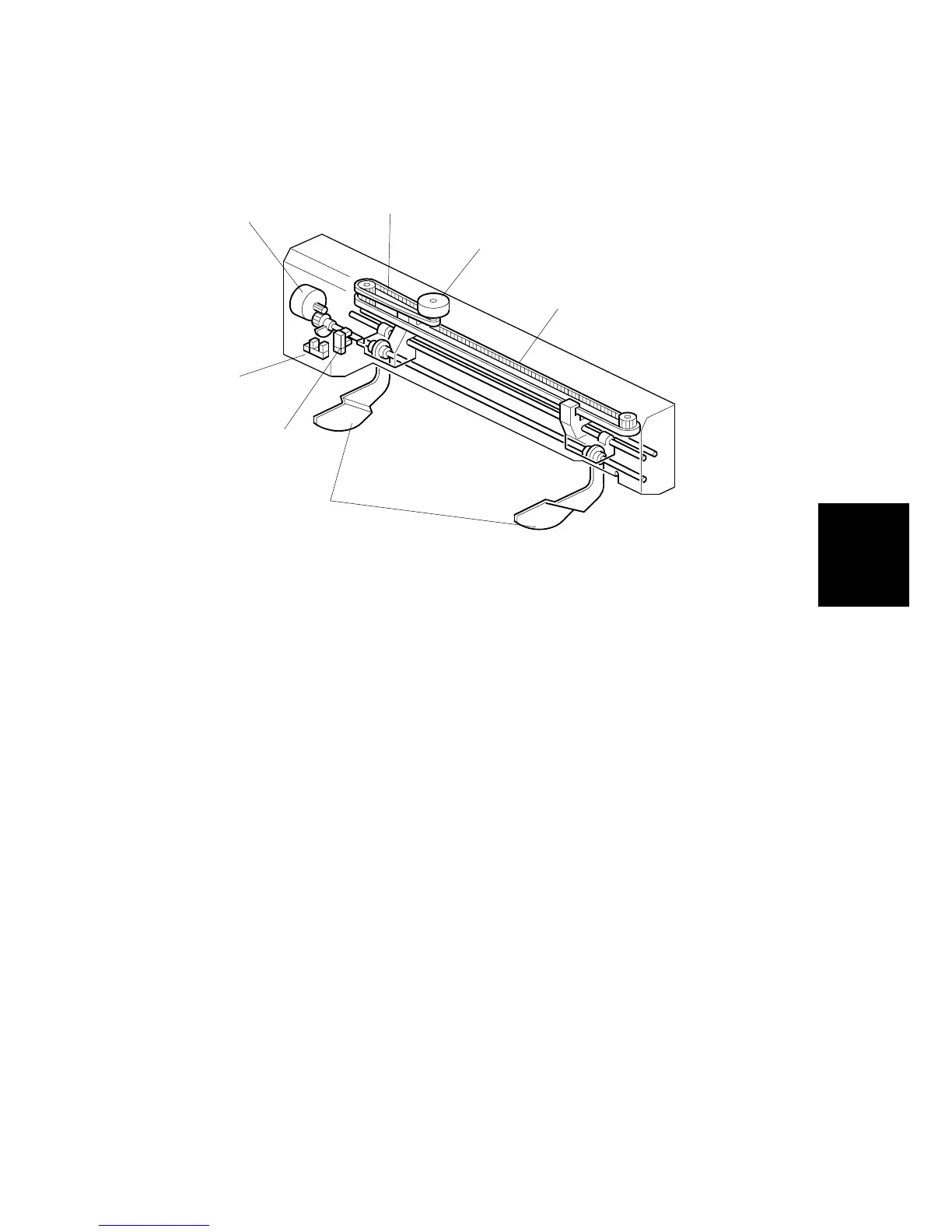

6.12.1 JOGGER UNIT MECHANICAL LAYOUT
1. Shift Jogger Fence Lift Motor
2. Shift Jogger Motor Timing Belt
3. Shift Jogger Motor
4. Shift Jogger Fence Timing Belt
5. Shift Jogger Fences
6. Shift Jogger HP Sensor
7. Shift Jogger Lift HP Sensor
B513D003.WMF
1
2
3
4
5
6
7
