Scanner
D062/D063/D065/D066 4-16 SM

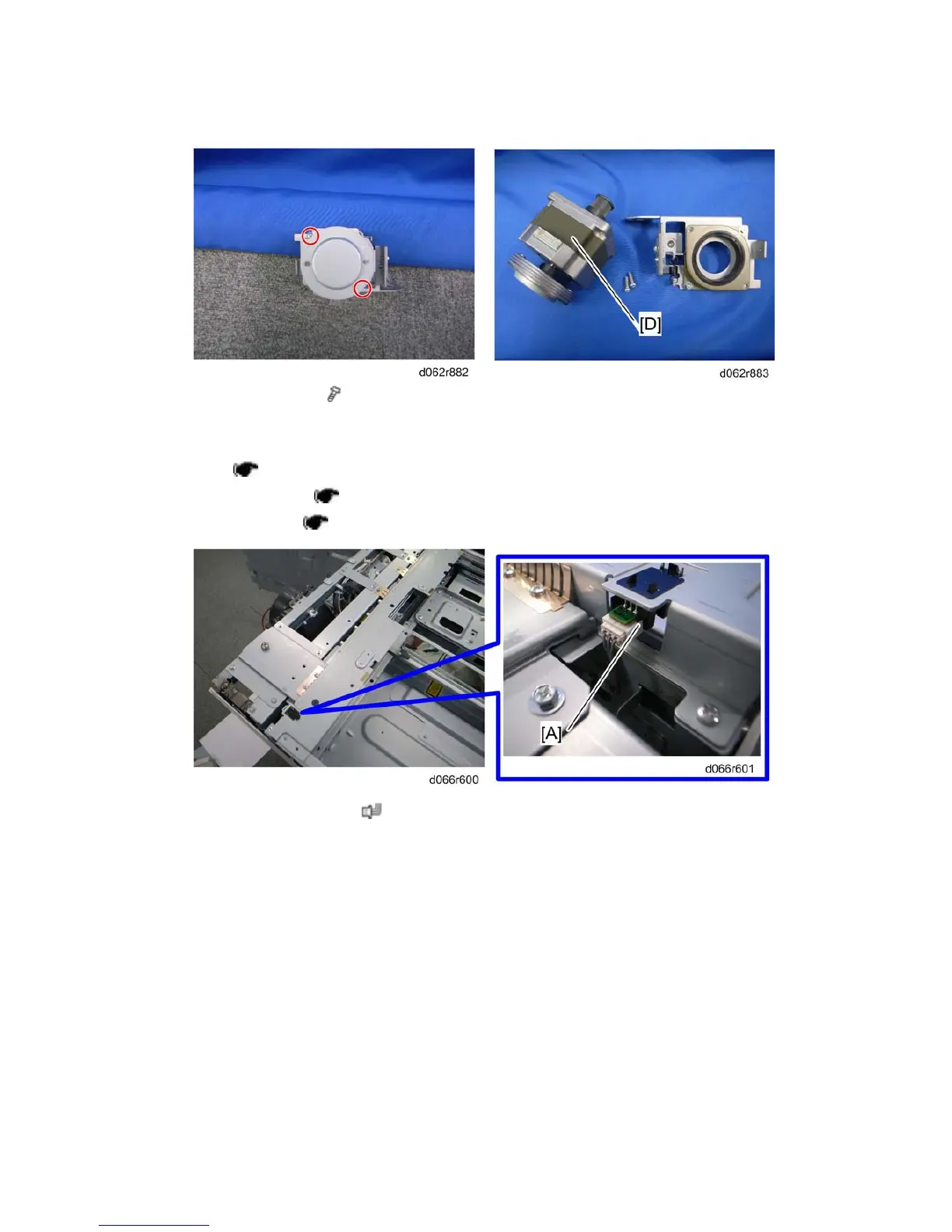

4. Scanner motor [D] (
x 2).
4.4.8 SCANNER HP SENSOR
1. ADF ( p.4-10)
2. Top inside cover (
p.4-11 "Top Covers")
3. Top right cover (
p.4-11 "Top Covers")
4. Scanner HP Sensor [A] (
x 1, all hooks)
