Paper Feed
D062/D063/D065/D066 4-84 SM
Universal Tray

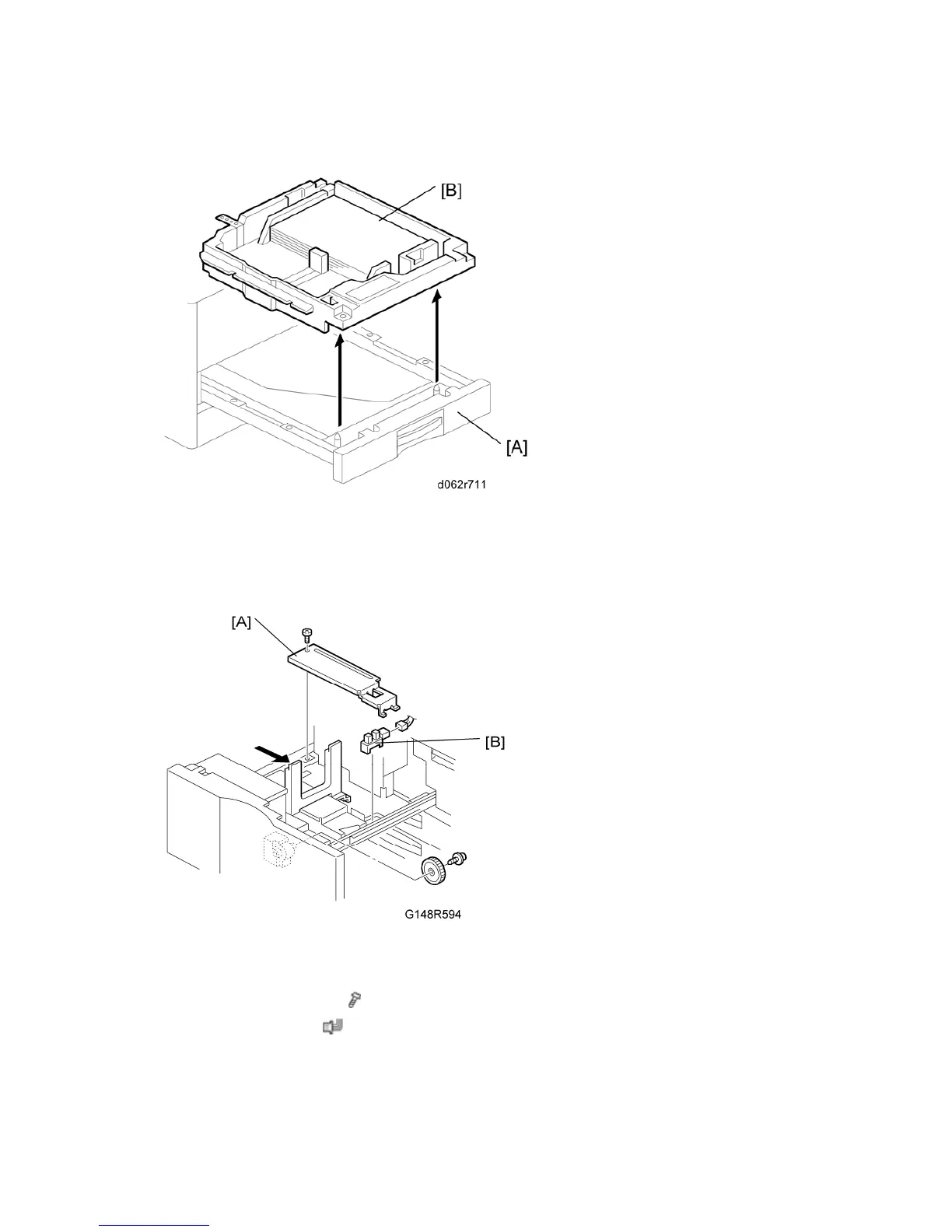

1. Pull tray 2 or tray 3 [A].
2. Lift the tray [B] out of the drawer.
4.11.2 REAR FENCE RETURN SENSOR REPLACEMENT
1. Turn off the machine.
2. Pull out the tandem feed tray.
3. Rear bottom plate [A] ( x 1)
4. Return sensor [B] (
x 1).
