Development Unit
D062/D063/D065/D066 4-46 SM
them clean.
When installing a new filter, set the filter inside the filter case then place the case
on top of the filter bracket [C]. The filter case closes any gaps at the edges of the
filter to prevent toner scatter.
4.7.3 ENTRANCE SEAL AND SIDE SEALS
Removal
Development unit ( p.4-25 "Development Unit Removal")

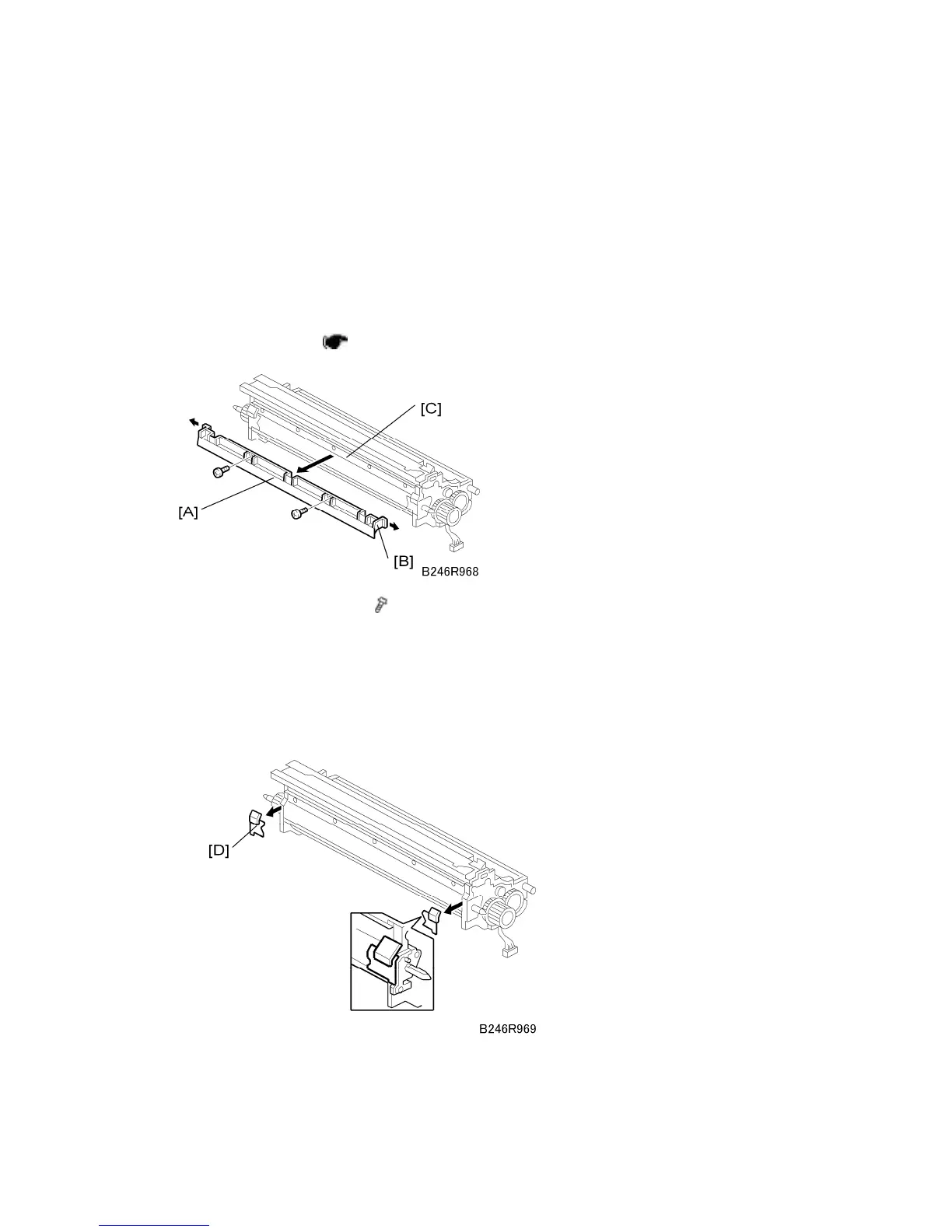

1. Entrance seal bracket [A] ( x 2)
2. After removing the screws, press in the catches on either end [B] to release the
entrance seal bracket, then remove it.
Clean the entrance seal bracket before re-installing it.
When re-installing, make sure the tabs [C] and notches are engaged at four
locations.
3. Side seals [D]
Remove the side seals from both ends, clean the area, and replace with new
To Next Page
