Ricoh Aficio MP 8001 Service Manual

Booklet Stapler Unit
SM 19 D373/D374
Finisher
D373/D374
1.5 BOOKLET STAPLER UNIT
1.5.1 BOOKLET STAPLER
1. Open the front door.
2. Pull out the stapler unit (
1.2.2 "Positioning Roller").

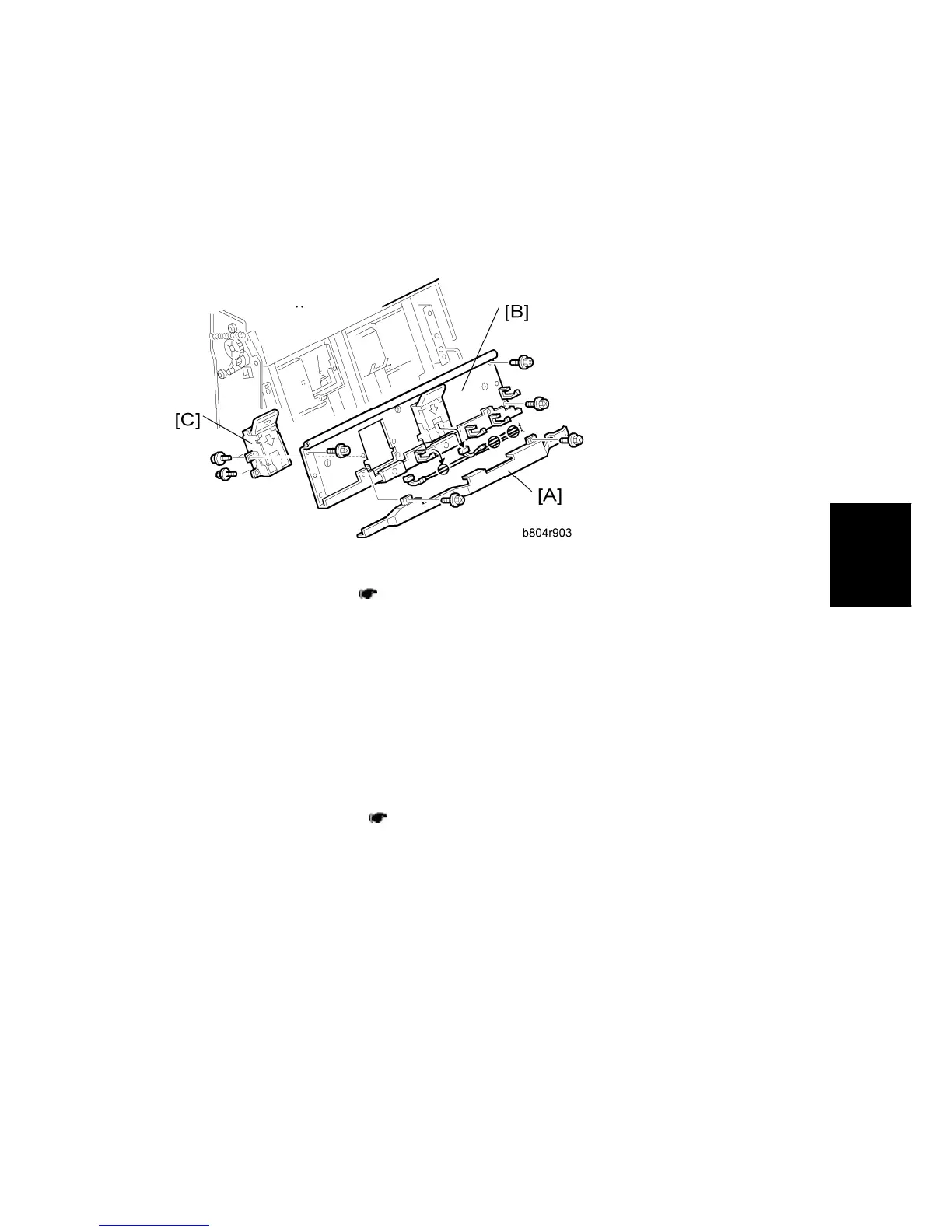

3. Harness cover [A] ( x2)
4. Booklet stapler support stay [B] ( x4,  x2, = x4)
5. Stapler [C] ( x4)
1.5.2 BOOKLET STAPLER MOTOR
1. Open the front door.
2. Remove the stapler unit. (
1.4.1 "Fold Unit")
