Main Unit
SM 7 D373/D374
Finisher
D373/D374

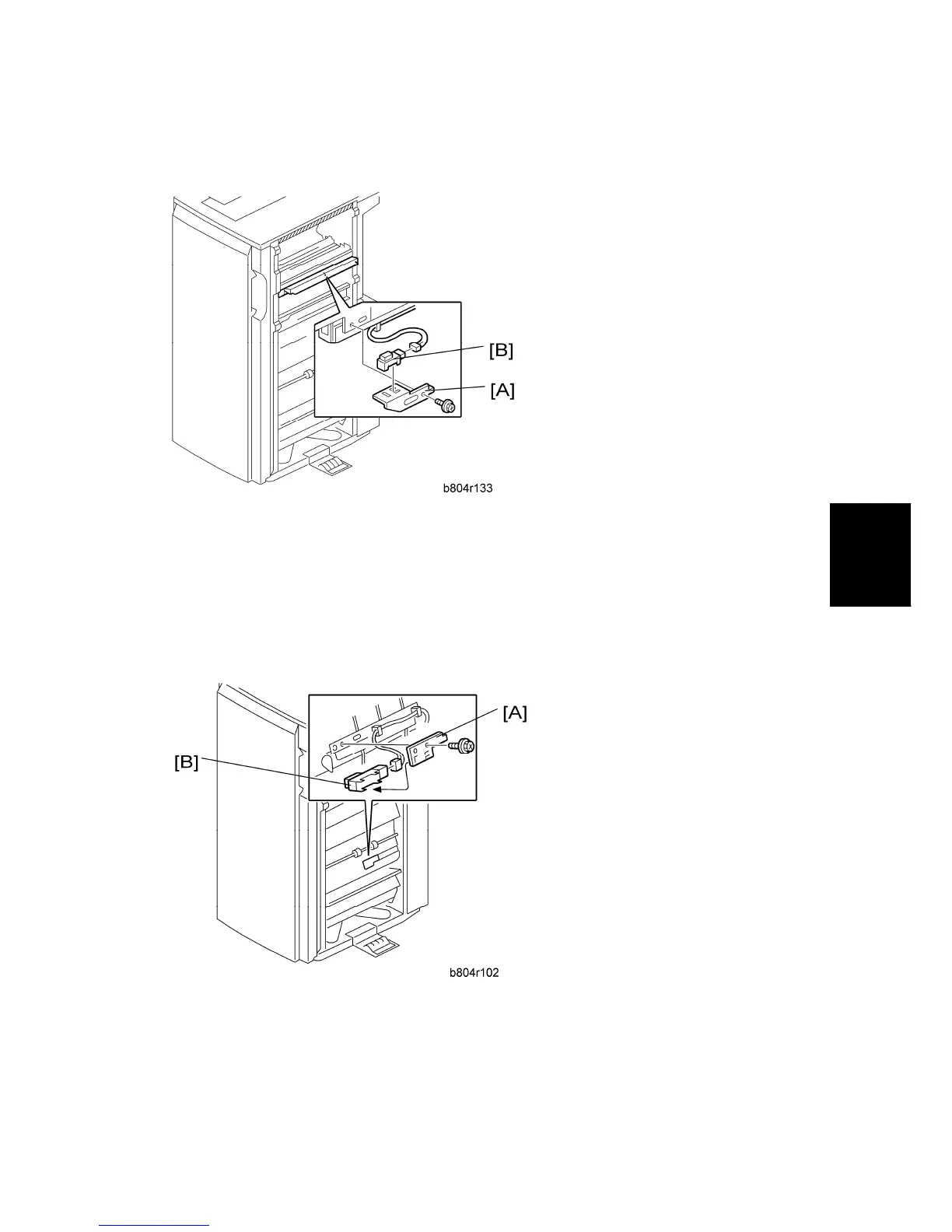

1.2.7 FINISHER ENTRANCE SENSOR
1. Disconnect the finisher if it is connected to the copier.
2. Sensor bracket [A] ( x1)
3. Finisher entrance sensor [B] (S1) ( x1)
1.2.8 PRE-STACK TRAY EXIT SENSOR
1. Disconnect the finisher if it is connected to the copier.
2. Sensor bracket [A]
3. Pre-stack tray exit sensor [B] (S2)
