PAPER END SENSOR, UPPER COVER SWITCHES
B473 4 SM
1.4 PAPER END SENSOR, UPPER COVER SWITCHES
Open the top cover.
Right cover ( 1.1)

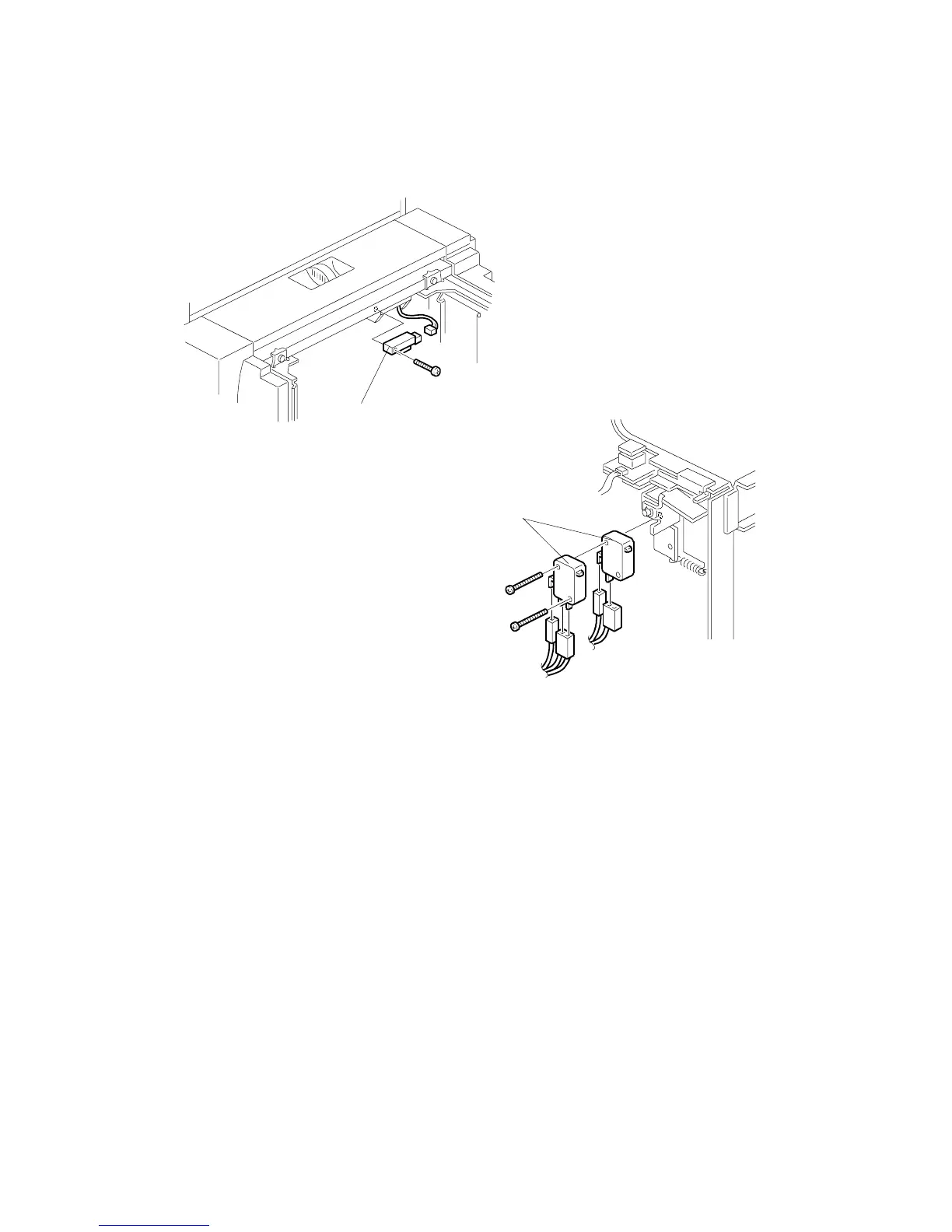

[A]: Paper end sensor ( x 1)
[B]: Upper cover switches 1, 2 ( x 2)
B473R005.WMF
B473R006.WMF
[A]
[B]
