MOTOR REPLACEMENT
SM 7 B704
Cover
Interposer
Tray
B704

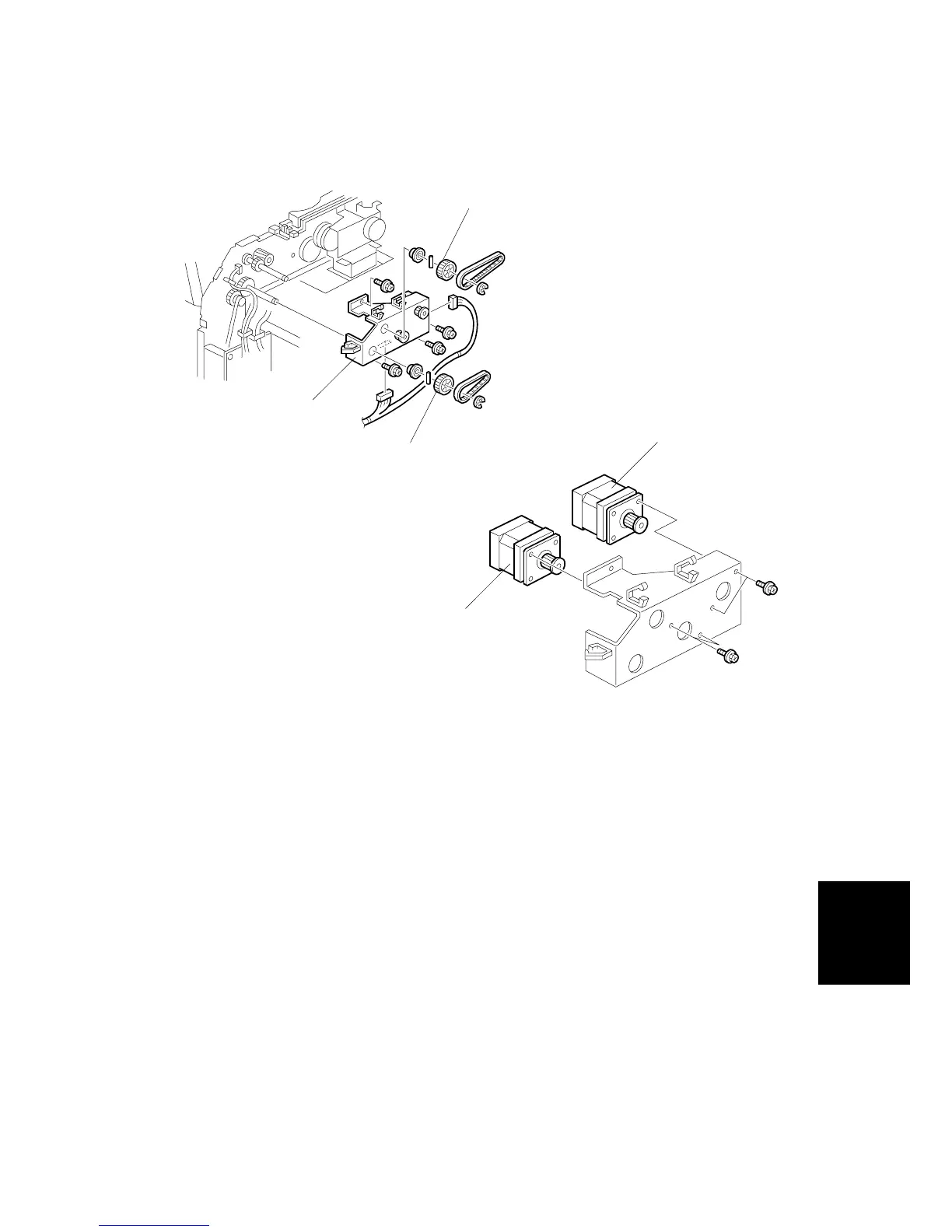

1.6.3 FEED MOTOR, TRANSPORT MOTOR
Rear upper cover ( 1.1)
NOTE: When removing the feed gear and transport gear, hold one hand under the
gear to catch the pin as it falls from the hole in the shaft.
[A]: Feed gear ( x 1, pin x 1, timing belt x 1, bushing x 1)
[B]: Transport gear ( x 1, pin x 1, timing belt x 1, bushing x 1)
[C]: Motor bracket (harness x 5, x 4)
[D]: Feed motor ( x 1, x 2)
[E]: Transport motor ( x 1, x 2)
B470R105.WMF
B470R103.WMF
[A]
[B]
[C]
[D]
[E]
