Cover Interposer Tray (B704)
SM 2-73 D062/D063/D065/D066
Installation
If you are installing the cover interposer with the D373/D374, go to the next
section.

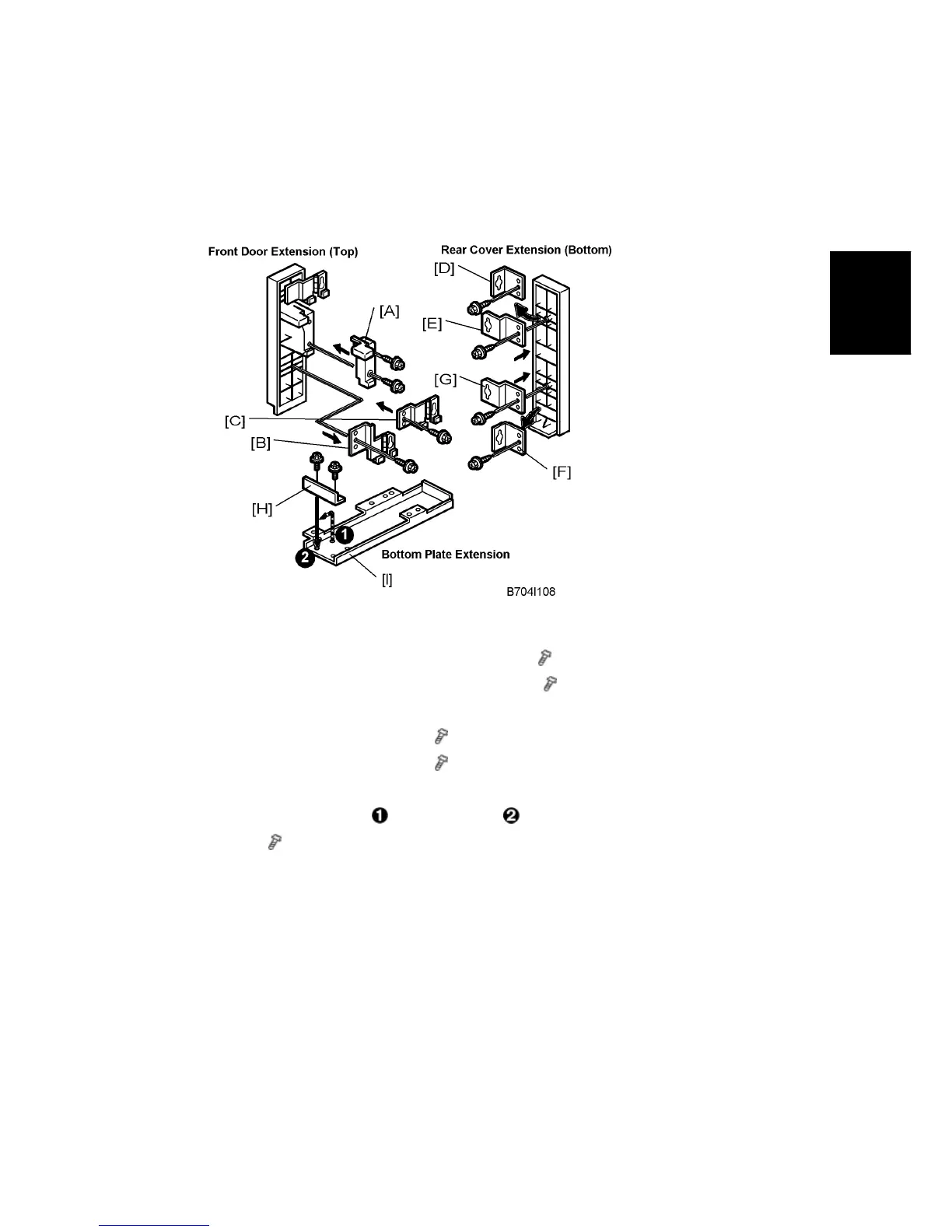

Modify the Attachments for the D460
Front Door Extension:
1. Attach spacer [A] to the front door extension (top) ( x 2).
2. Remove the lower hinge [B] and replace it with [C] (
x 2).
Rear Cover Extension (Bottom):
1. Remove [D] and replace it with [E] (
x 1).
2. Remove [F] and replace it with [G] (
x 1).
Plate Extension (Bottom):
1. Remove bracket [H] from
and attach it to at the end of the bottom plate
extension (
x 2).
